133. Generator Installation

Generator Installation

1. Place the generator in position.
2. Install the generator side bolt finger tight.
3. Install the generator front bolts finger tight.

Caution: Refer to Fastener Caution (Fastener Caution).

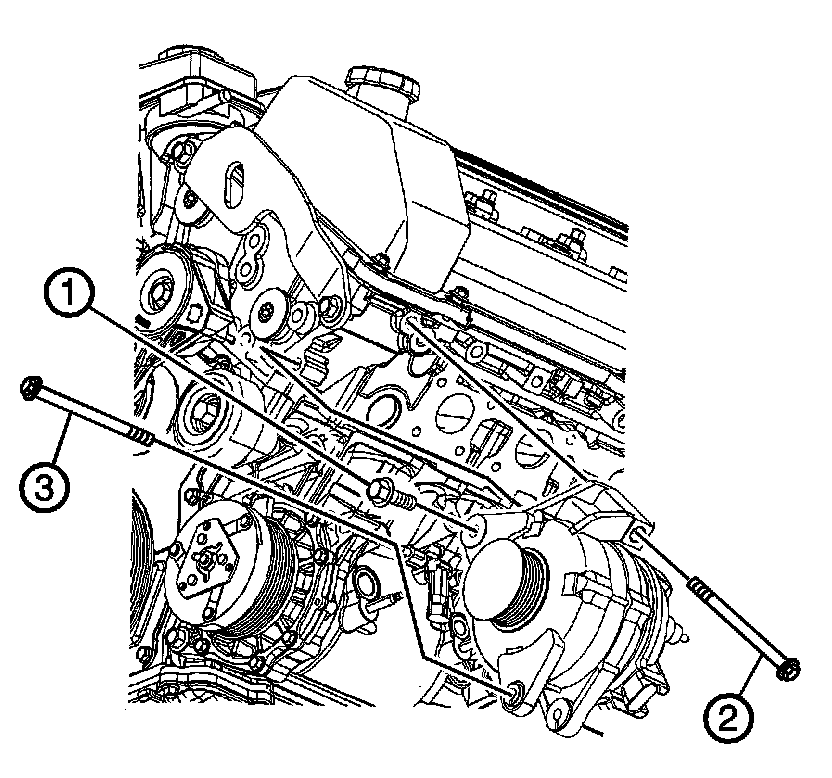

4. Tighten the generator bolts in the sequence shown.

1. Tighten the generator front upper bolt to 50 Nm (37 lb ft).
2. Tighten the generator side bolt to 50 Nm (37 lb ft).
3. Tighten the generator front lower bolt to 50 Nm (37 lb ft).
