Front Fender Liner: Service and Repair



Wheelhouse Panel Replacement

Removal Procedure

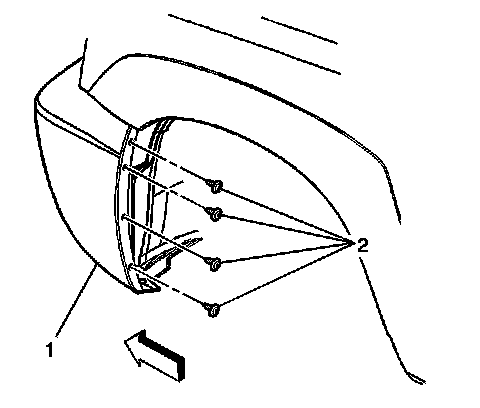

1. Remove the push-in retainers (2) from the wheelhouse panel.




2. Remove the retainers (2) from the front fascia (1). If applicable.
3. Remove the top clips retaining the harness to the top of the wheelhouse panel.
4. Remove the wheelhouse panel from the wheelhouse.

Installation Procedure




1. Install the wheelhouse panel to the wheelhouse.
2. Install the push-in retainers (2) to the wheelhouse panel.




3. Install the retainers (2) to the front fascia (1). If applicable.
4. Install the top clips retaining the harness to the top of the wheelhouse panel.
