MIRROR REPLACEMENT - MANUAL

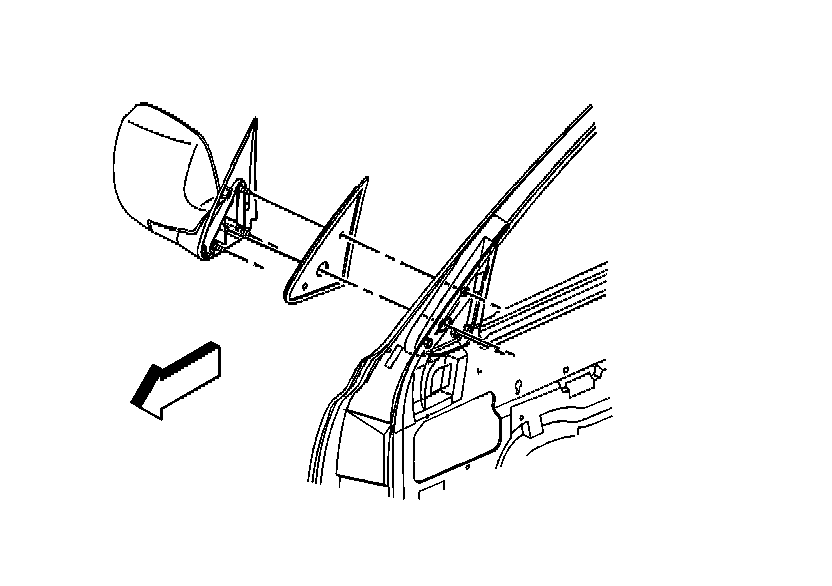

REMOVAL PROCEDURE
1. Remove the front door trim panel upper extension.




2. Remove the nuts that retain the outside mirror to the door.
3. Remove the outside mirror from the door.

INSTALLATION PROCEDURE




1. Install the rearview mirror to the door, pressing the outside mirror into place.
2. Install the nuts in order to retain the outside mirror to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the outside rearview mirror retaining nuts to 9 N.m (80 lb in).

3. Install the front door trim panel upper extension.
