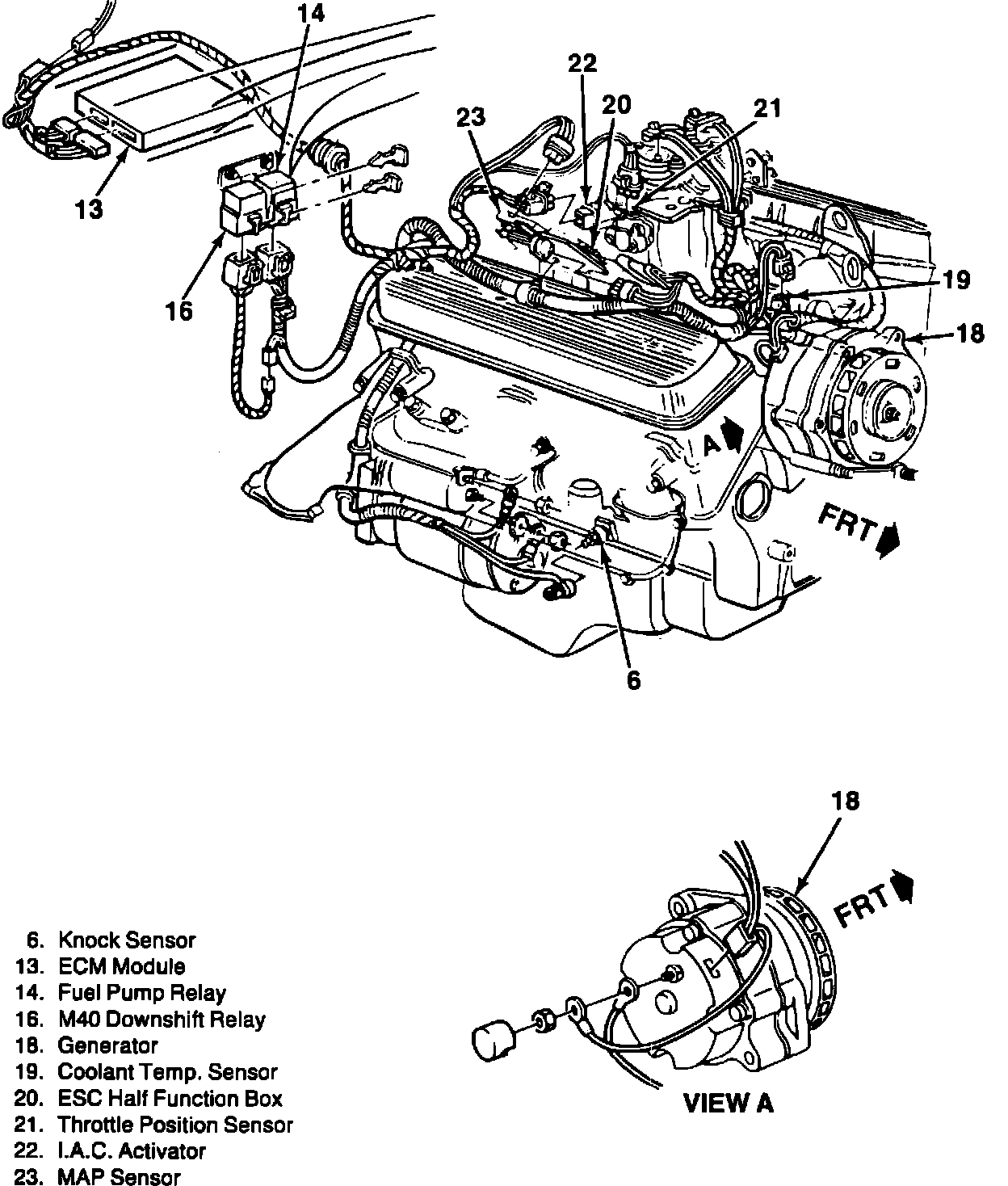

Right Side View
Engine Wire Routing:
6
=
KNOCK SENSOR.
13
=
ECM MODULE.
14
=
FUEL PUMP RELAY.
16
=
M40 DOWNSHIFT RELAY.
18
=
GENERATOR.
19
=
COOLANT TEMPERATURE SENSOR.
20
=
ESC HALF FUNCTION BOX.
21
=
THROTTLE POSITION SENSOR.
22
=
IAC ACTIVATOR.
23
=
MAP SENSOR.
