Air Distributer Assembly

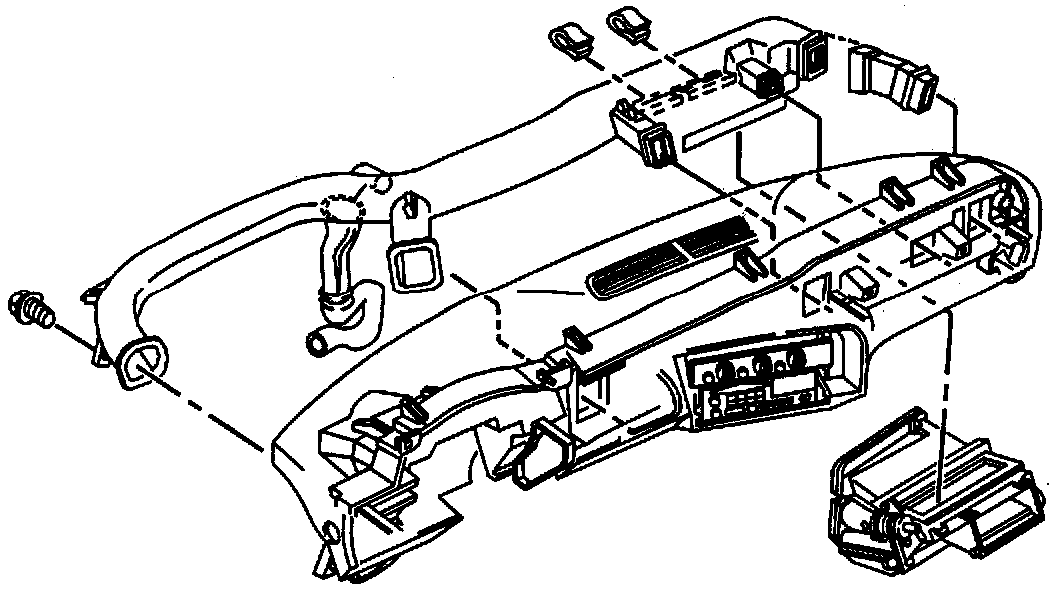

Air Distributer Assembly And Duct:






Remove or Disconnect

1. Negative battery cable.
2. Disable passenger SIR inflator module.
3. Right knee bolster.
4. Lap air outlet duct.
5. One retaining screw from the I/P carrier on the right side of the air distributor assembly.
6. Vacuum connectors.
7. One screw from the support brace on the left side of the assembly.
8. One screw retaining the body side window defogger duct.
- Leave the duct attached to the outlet on the I/P.
9. Air distributor assembly from the I/P

Install or Connect

1. Air distributor assembly to the I/P.
2. One screw retaining the body side window defogger duct to the air distributor assembly.
3. One screw to the support brace on the left side of the assembly.
4. Vacuum connectors.
5. One retaining screw to the I/P carrier on the right side of the air distributor assembly.
6. Lap air outlet duct.
7. flight knee bolster.
8. Enable the SIR system.
9. Negative battery cable.
