Fastener Tightening Specifications - Cylinder Head

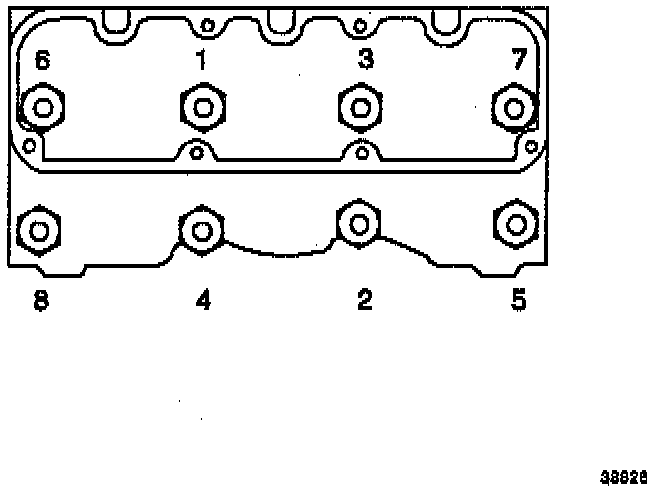

Cylinder Head Bolt Tightening Sequence:
Install the NEW
cylinder head bolts.
a.
Tighten the
cylinder head bolts to
50 Nm (37 lb ft) in sequence.
b.
Use the Torque Angle Meter in order to rotate the bolts in sequence 130 degrees.
c.
Use the Torque Angle Meter in order to rotate the center four bolts an additional 30 degrees in sequence.
