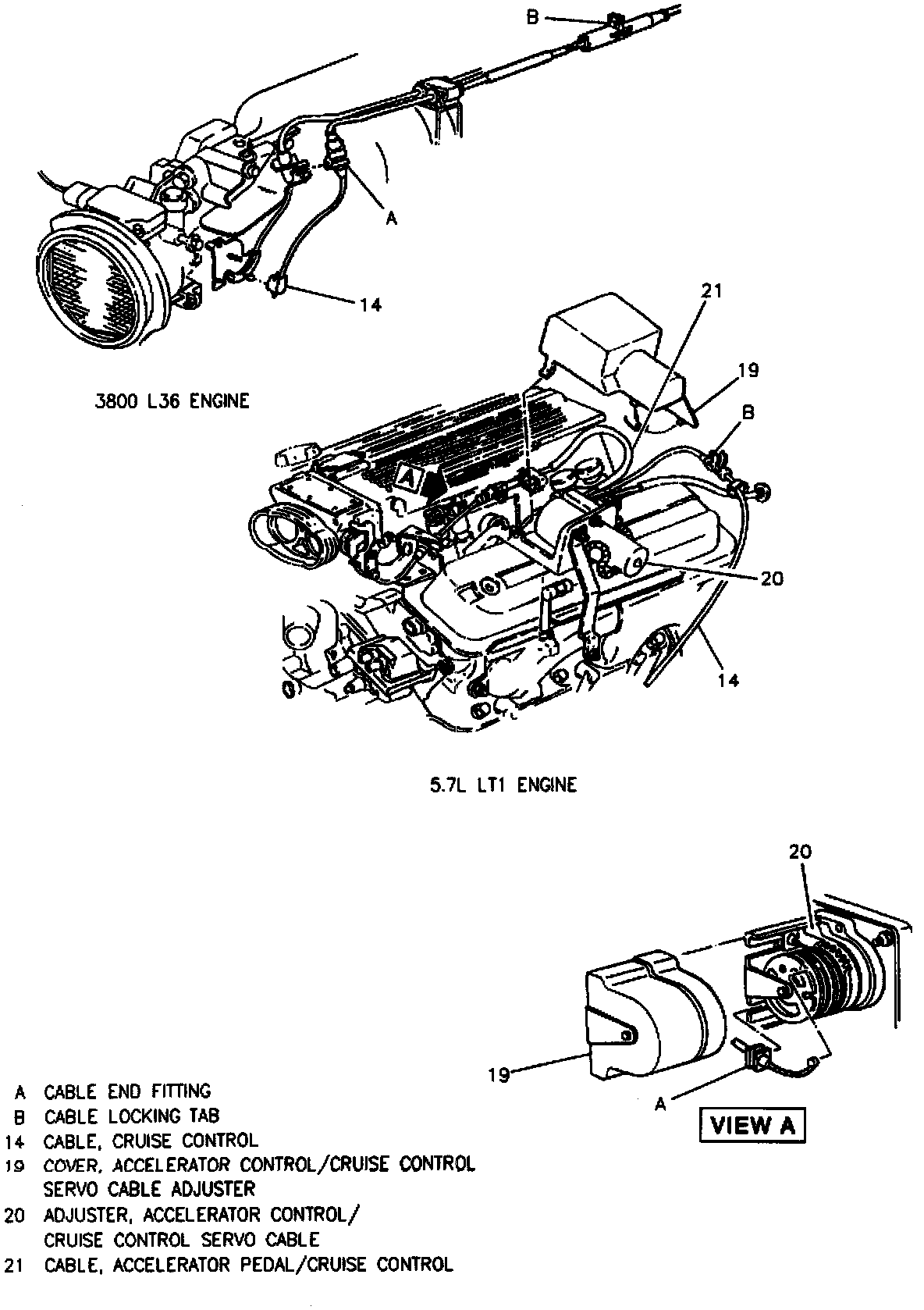

Cruise Control Cable

Cable Bead To Cruise Control Module:




Pulling Cruise Control Cable:




Installing Cruise Control Cable To Cruise Control Module:




Cable Replacement:





Important: If vehicle is equipped with accelerator control/cruise control servo cable adjuster (throttle relaxer), follow these procedures to replace cable.

REMOVE OR DISCONNECT
1. Cover (19).
2. Cable (14) and conduit from engine bracket.
3. Cable end fitting from accelerator control/cruise control servo cable adjuster (20).
4. Cruise control retainer (18) at cruise control module.
5. Cable (14) from cruise control module (11).
A. Compress conduit tangs and pull out of cruise control module housing.
B. Disconnect cable bead from cruise motor band end fitting on cruise control module (11).
. Note routing and remove cable (14) from vehicle.

INSTALL OR CONNECT
1. Cable (14) to cruise control module (11).
A. Attach cable bead to cruise motor ribbon end fitting on cruise control module (11).
B. Pull engine end of cable (14) until it is taught.
C. Turn engine end of cable until ribbon is flat.
Important
^ Ribbon must not be twisted.
- Slide cable conduit fitting over ribbon and snap into module housing assuring that both tangs are engaged.
2. Cruise control retainer (18) at cruise control module (11).
3. Cable (14) to vehicle.
^ Use routing noted during removal.
4. Cable end fitting to accelerator control/cruise control servo cable adjuster (20).
Important
^ Install slug of cable to cam of throttle relaxer before installing cable end fining to adjuster. Be careful not to bend the corewire of the cable when installing the slug to the cam.
5. Cable (14) and conduit to engine bracket.
Important
^ The adjuster assembly wiring harness must be routed between the adjuster assembly motor and the mounting stud and nut. The cable must not be placed under the motor in a position that creates stress on the cover hinge. Make certain the wiring harness is contained inside the cover and also that it is not pinched by the flap when closed.
6. Cover (19).
Adjust
^ Cable. Refer to "Cable Adjustment".
