Brake Pedal Assy: Service and Repair

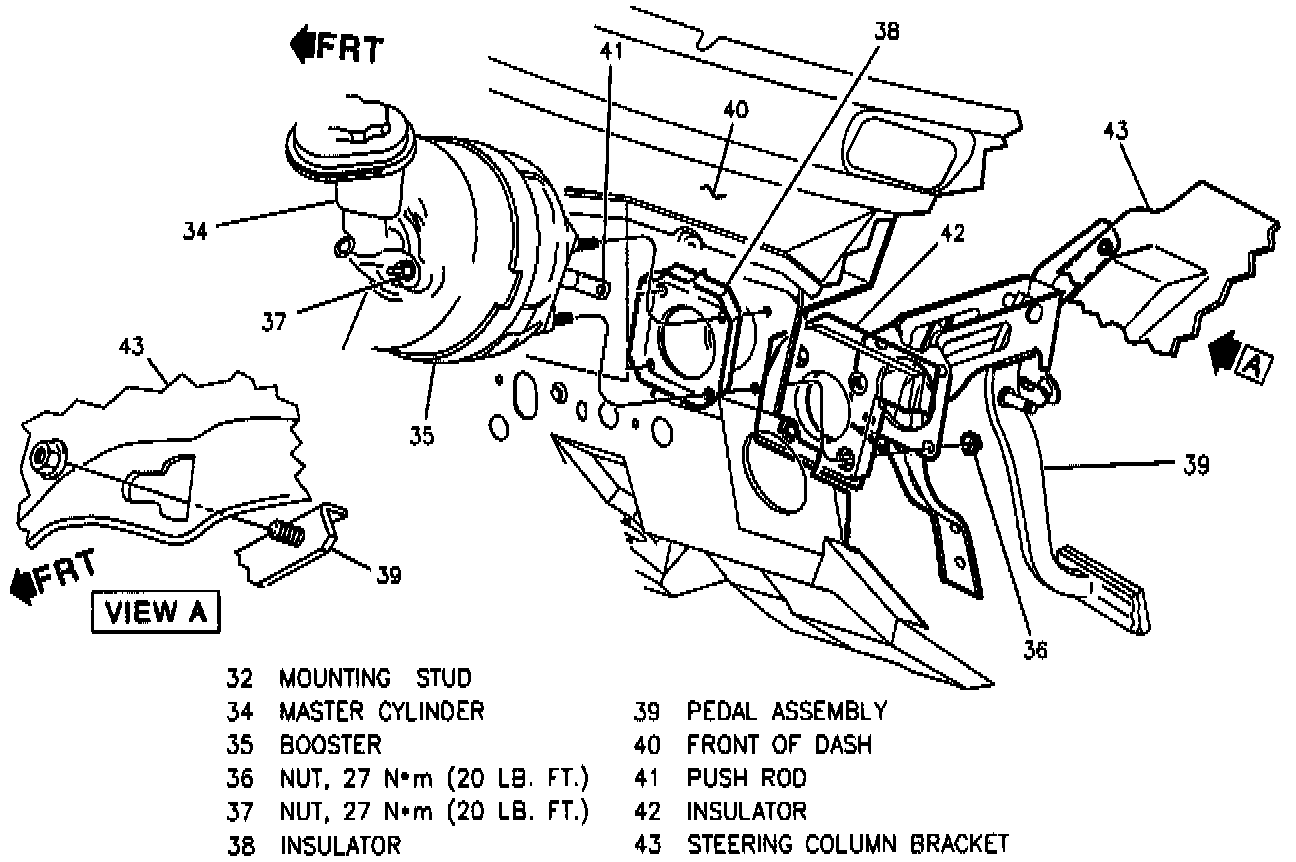

Brake Pedal Assembly Mounting:
REMOVE OR DISCONNECT 1.
Left sound insulator panel.
2.
Push rod from brake pedal.
3.
Accelerator cable.
4.
Brake pedal assembly.
5.
Electrical connections.
INSTALL OR CONNECT 1.
Electrical connections.
2.
Brake pedal assembly.
3.
Accelerator cable.
4.
Pushrod to brake pedal.
5.
Left sound insulator panel.
