Heater Cord Replacement
REMOVE OR DISCONNECT 1.
Negative battery cable.
2.
Cord from engine coolant heater.
3.
Cord assembly.

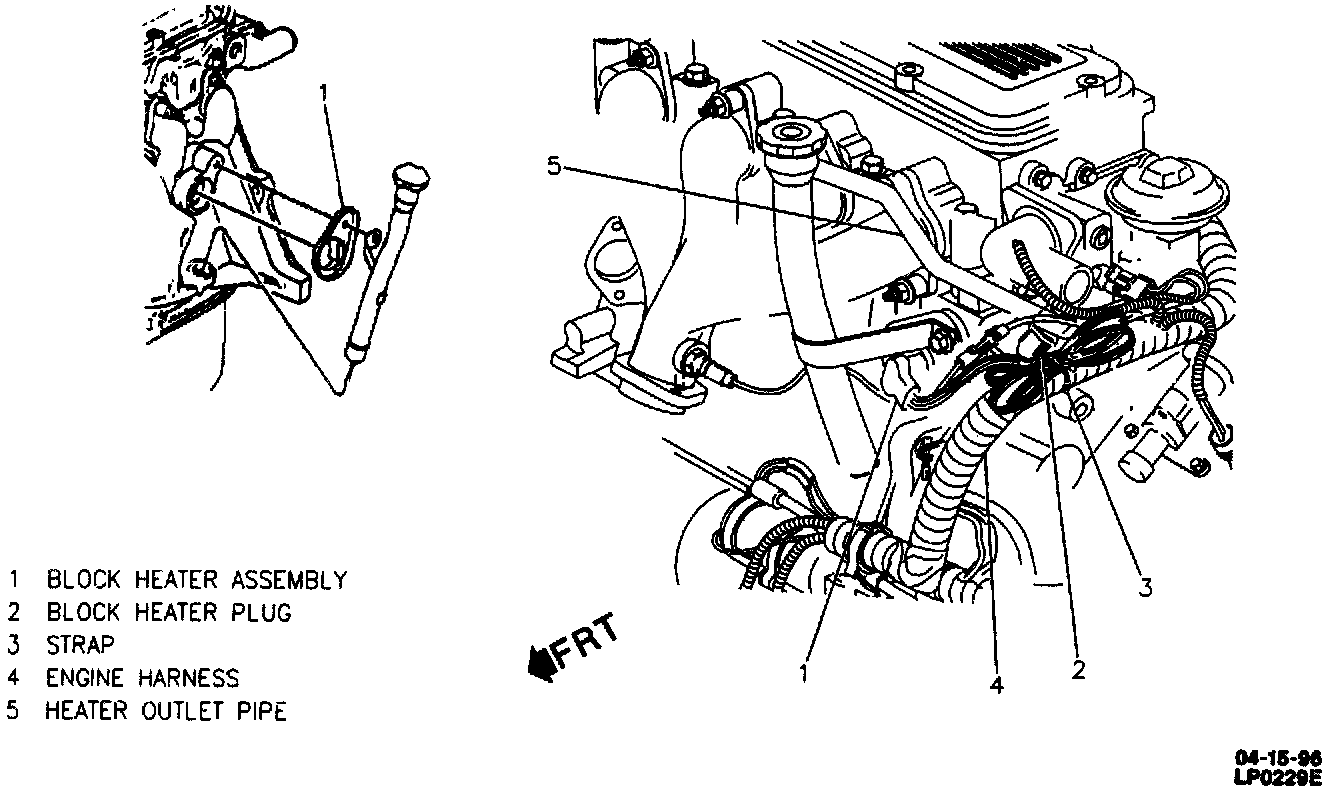

Cord Routing And Engine Coolant Heater:

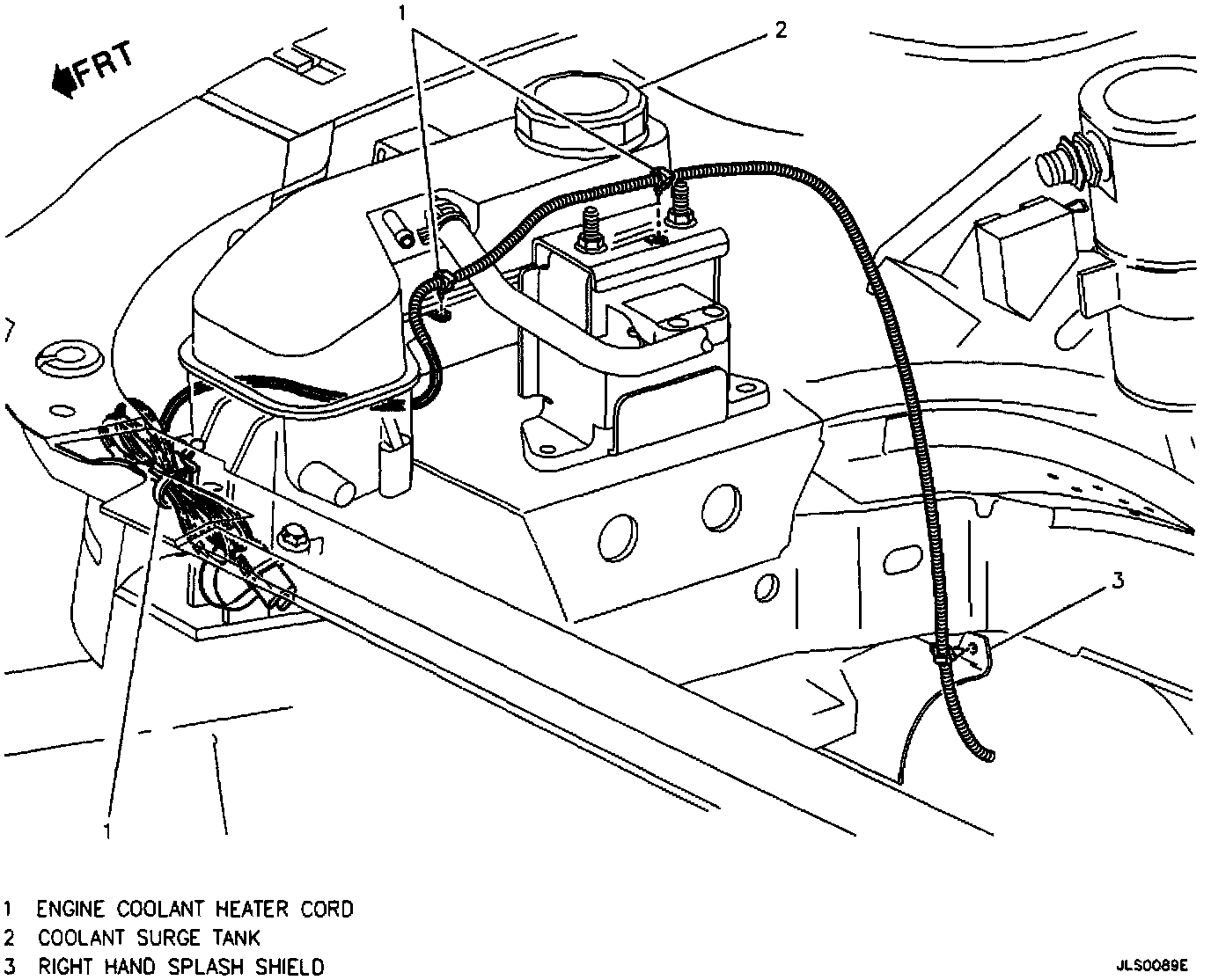

Engine Coolant Heater Cord Routing:
INSTALL OR CONNECT 1.
Cord assembly.
IMPORTANT ^
Cord must not contact hot surfaces or any moving parts.
2.
Cord to engine coolant heater.
3.
Negative battery cable.
