Water Pump Installation
1.

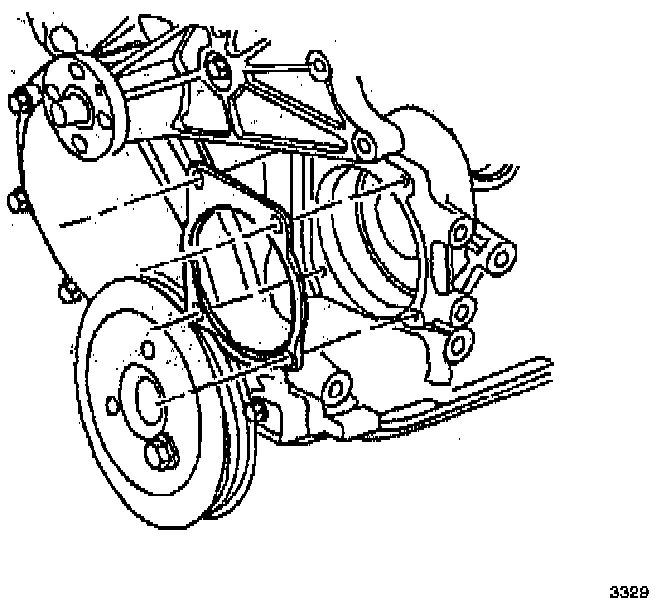

Install the coolant pump gasket to the engine.
2.

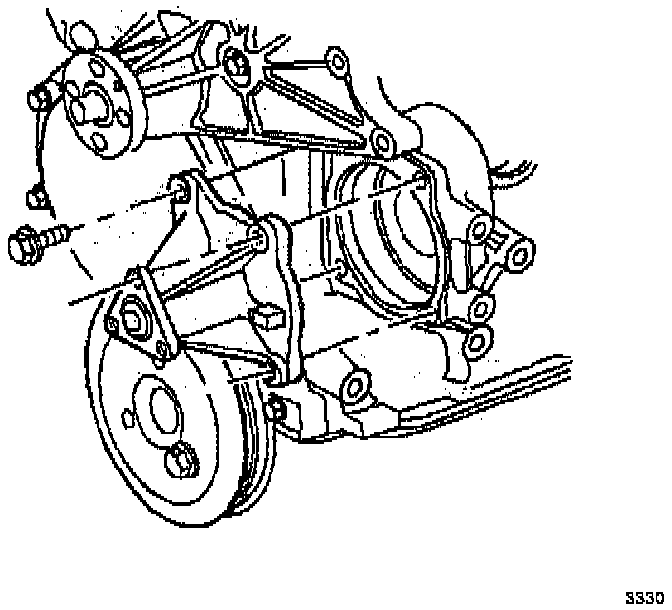

Install the coolant pump to the engine.
3.
Apply sealant to the bolt threads, use GM P/N 1052080 (or equivalent).
4.

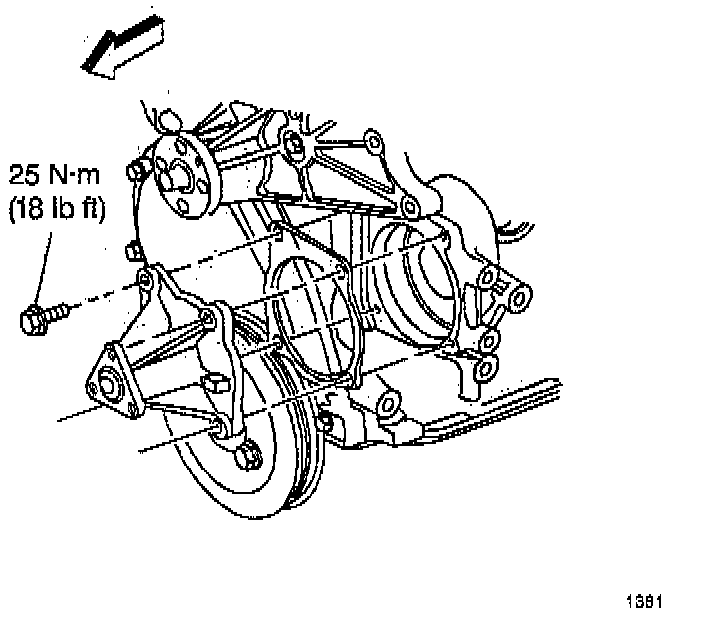

Install the coolant pump attaching bolts. Tighten the coolant pump attaching bolts to
25 Nm (18 ft. lbs.).
