Cylinder Block Plug Removal
1.

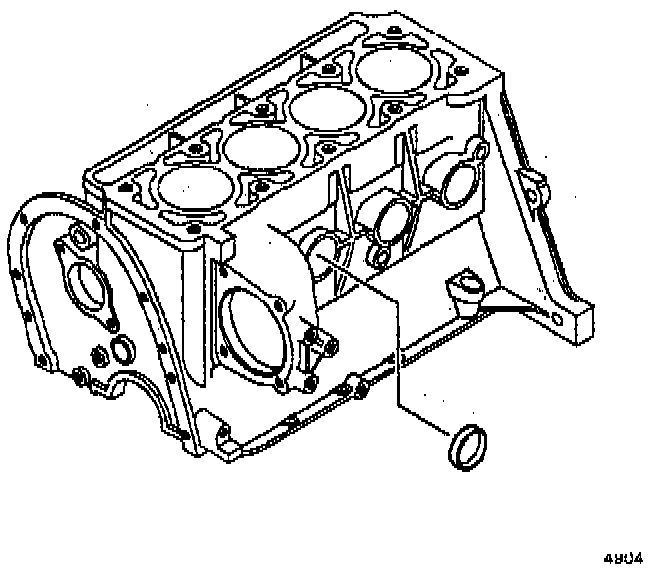

Remove the cooling jacket plugs.
a.
Use a suitable self-threading screw.
b.
Drill a hole into the cooling jacket plug.
c.
Install the self-threading screw.
d.
Pry out the cooling jacket plug.
2.

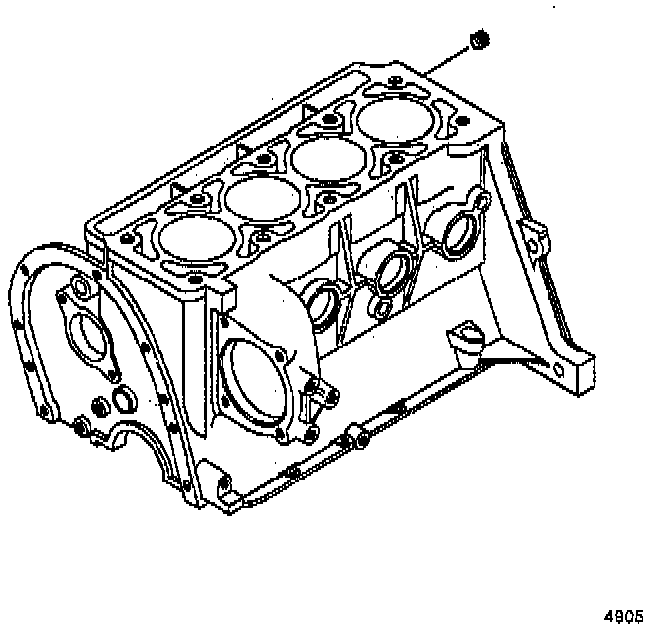

Remove the oil gallery screw plugs.
3.
Remove the cooling jacket drain plugs.
