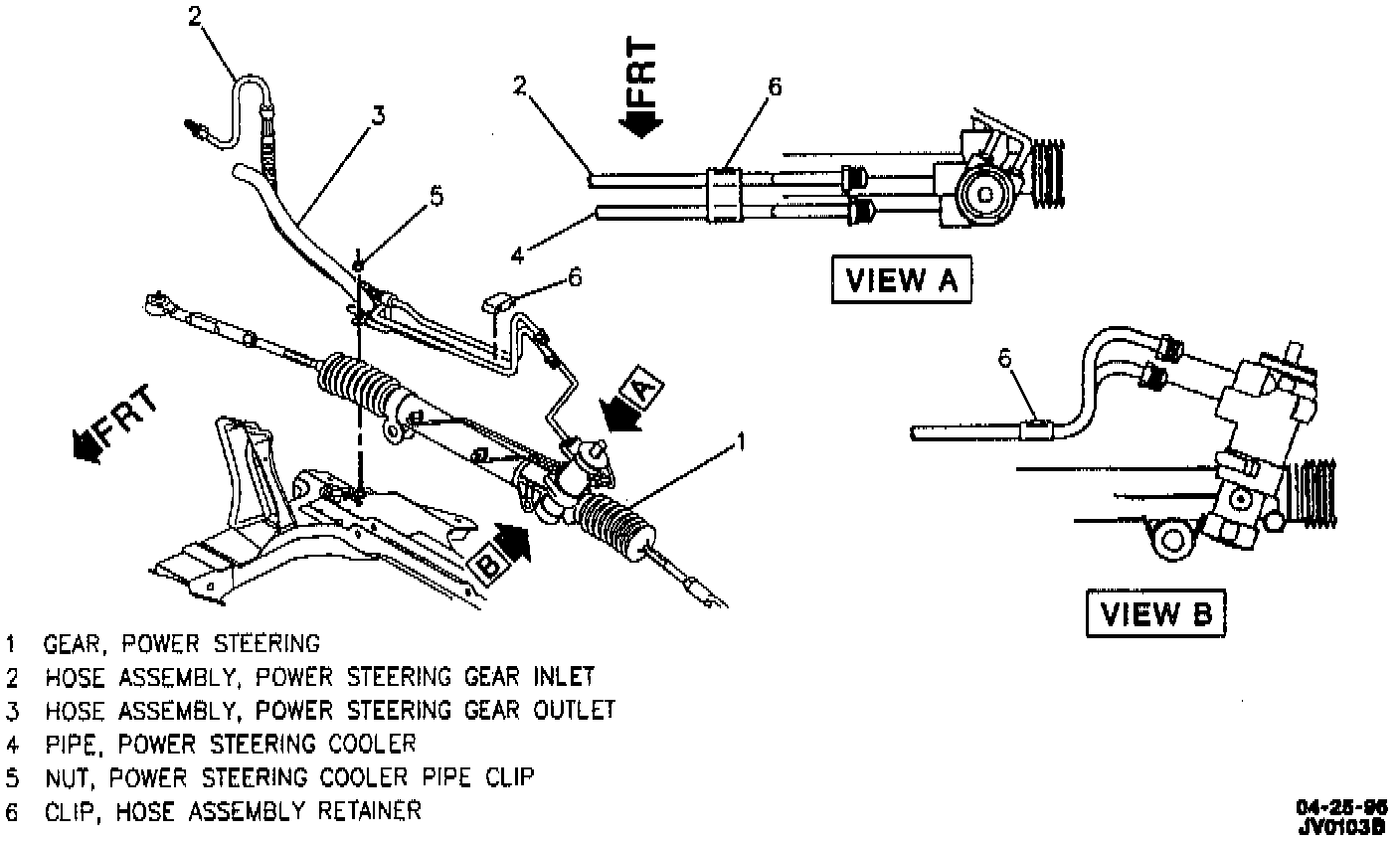

Gear Inlet Hose Replacement

REMOVE OR DISCONNECT
1. Position rags under pump to absorb oil.
2. Siphon fluid from reservoir.
3. Gear inlet hose from pump.
4. Raise vehicle.
5. Gear inlet hose from steering gear.

INSTALL OR CONNECT
1. Route new gear inlet hose to steering gear.
2. Gear inlet hose to steering gear.
3. Lower vehicle.
4. Install gear inlet hose to pump.
^ Tighten gear inlet hose assembly to 27 Nm (20 ft. lbs.).
5. Fill and bleed power steering system.
^ Bleed air from system.
