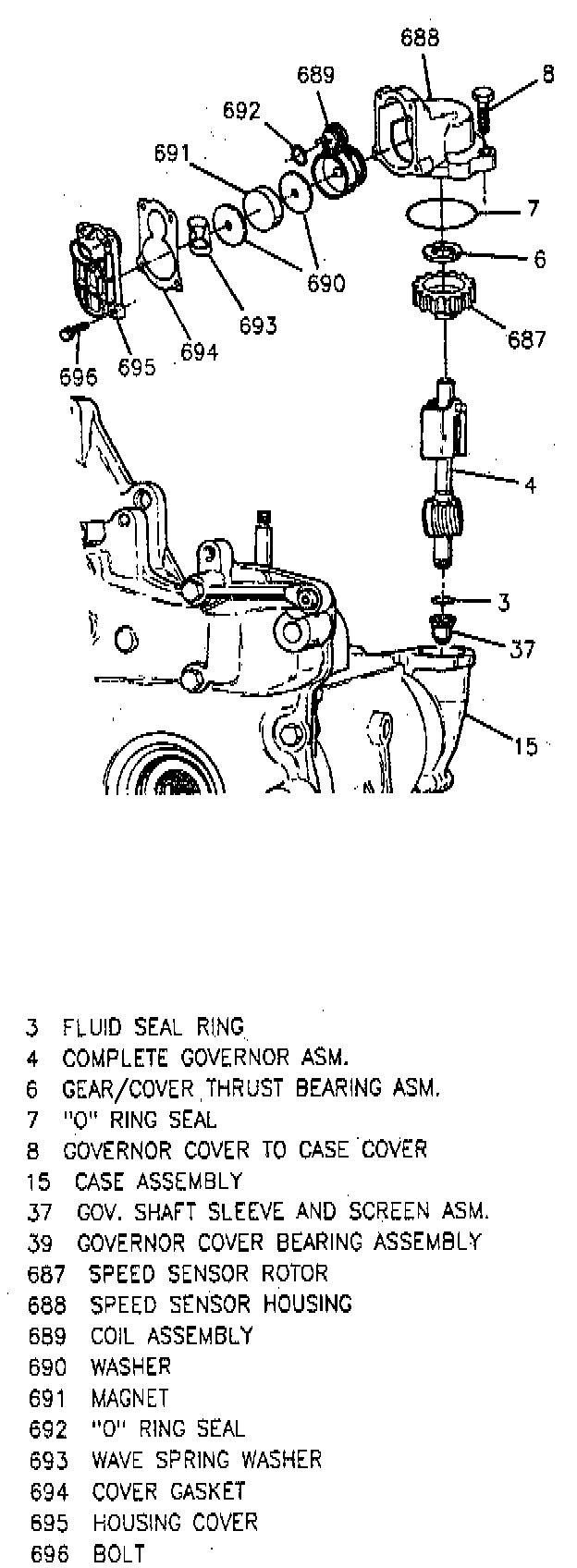

Governor: Service and Repair

REMOVE OR DISCONNECT
1. Raise and support the vehicle.
2. Vehicle speed sensor (VSS) lead from transaxle.
3. Speed sensor housing bolts and housing.
4. Speed sensor housing O-ring.
5. Governor assembly.
6. Governor shaft screen assembly and seal.

INSTALL OR CONNECT
1. Governor shaft screen assembly and seal.
2. Governor assembly.
3. Speed sensor housing O-ring.
- Lubricate with DEXRON III.
4. Speed sensor housing and bolts.
5. VSS lead to transaxle.
6. Lower vehicle.

Adjust
- Oil level. Refer to "Transaxle Oil Level Checking Procedure."
