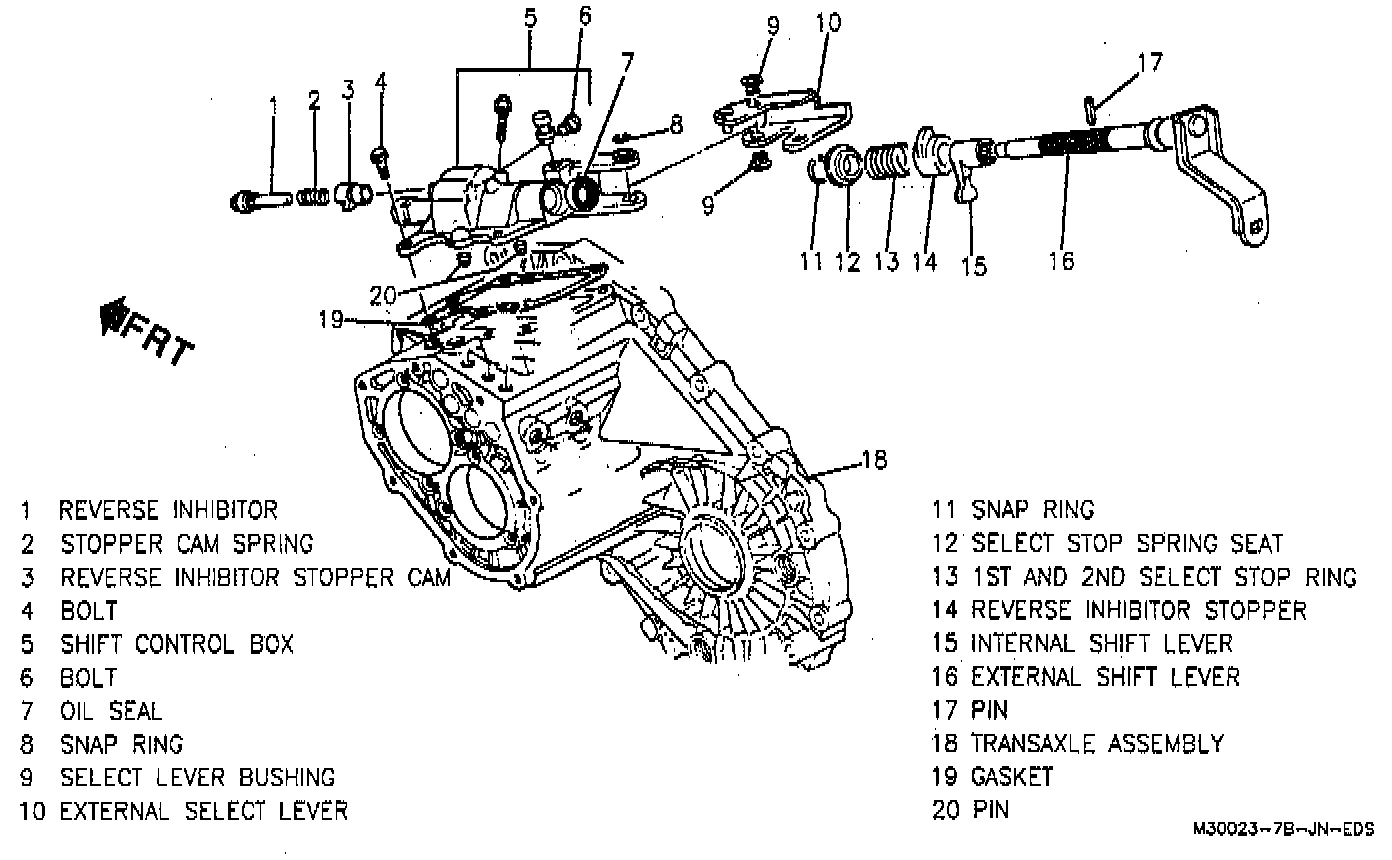

Shift Control Box

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Shift cables.





3. Control box assembly.





Measure
- Shift control box.





ASSEMBLE
1. Stopper cam and internal lever.

REMOVE OR DISCONNECT
- Align serrations on the stopper cam and internal lever.

2. Stopper cam and internal lever to the shift lever assembly.

Adjust
- Alignment of stopper cam with center on internal lever.
- Reverse inhibitor mechanism for proper operation.

3. New roll pin to the internal lever.

INSTALL OR CONNECT

1. Control box assembly and bolts.

Tighten
- Bolts to 17 N.m (13 lb. ft.).

2. Shift cables.

Adjust
- For proper shifting.

3. Negative battery cable.
