Memory Seat Module Replacement

Memory Seat Module Replacement: Removal Procedure:




REMOVAL PROCEDURE

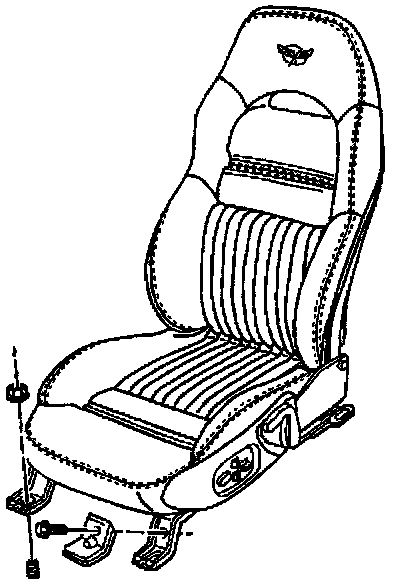

1. Remove the seat.
2. Remove the seat belt harness rosebud clip from the seat (drivers side only).
3. Remove the Memory Seat Control Module from the seat foam support wires.
4. Reposition the Seat Control Module out through the opening.
5. Disconnect the harness connectors.

Memory Seat Module Replacement: Installation Procedure:




INSTALLATION PROCEDURE
1. Connect harness connectors to the Seat Control Module.
2. Install the Seat Control Module to the seat cushion foam support wires.
3. Connect the seat belt harness rosebud clip to the seat (drivers side only).
4. Install the seat.
