Cruise Control: Service and Repair

Electronic Throttle Control Module Replacement: Removal Procedure:

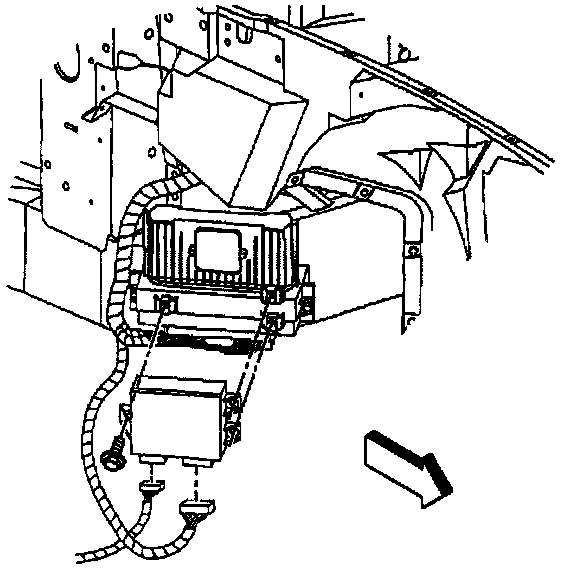

REMOVAL PROCEDURE

Caution: Refer to Battery Disconnect Caution in General In formation.

1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the RH front wheel and tire assembly.
4. Remove the wheelhouse filler panel.
5. Remove the screws retaining the electronic throttle control module to the Powertrain Control Module (PCM) bracket.
6. Remove the electrical connectors from the module.
7. Remove the module from the vehicle

Electronic Throttle Control Module Replacement: Installation Procedure:

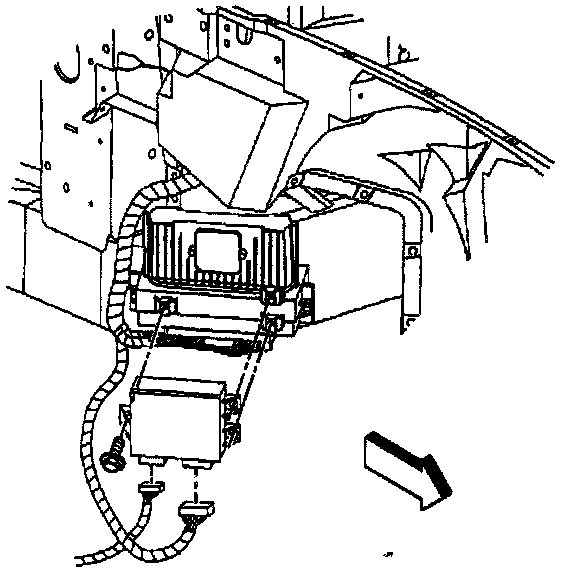

INSTALLATION PROCEDURE
1. Connect the electrical connectors to the electronic throttle control module.
2. Align the hole in the rear mounting tab of the electronic throttle control module to the corresponding hole in the PCM bracket.

For greater clearance to install the rear retaining screw, position the throttle module housing below the rear mounting tab.

3. Install the throttle module rear retaining screw.
4. Align the front mounting holes of the module.
5. Install the module front retaining screws.

Tighten
Tighten the electronic throttle control module retaining screws to 1.9 N.m (17 lb in).

Notice: Refer to Fastener Notice in General Information.

6. Install the wheelhouse filler panel.
7. Install the front tire and wheel assembly.
8. Lower the vehicle.
9. Connect the negative battery cable.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).
