Generator Pulley Replacement

REMOVAL PROCEDURE

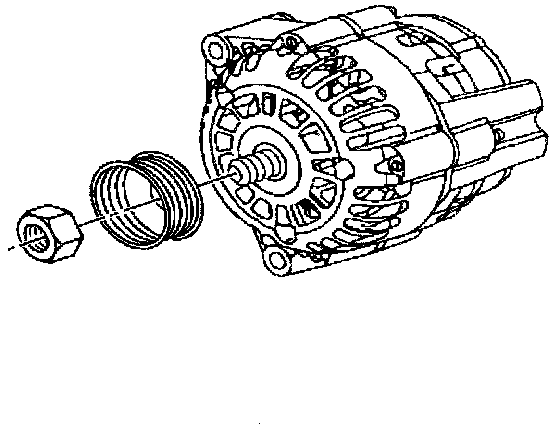

Generator Pulley Replacement: Removal Procedure:




1. Disconnect the negative battery cable.
2. Remove the accessory drive belt.
3. Install a T-50 into the generator shaft.
4. Remove the generator shaft nut and washer.
5. Remove the generator pulley.

INSTALLATION PROCEDURE

Generator Pulley Replacement: Removal Procedure:




1. Install the generator pulley, washer and shaft nut.
Tighten
Tighten the generator shaft nut to 75 N.m (55 lb ft).

Generator Pulley Replacement: Installation Procedure:




2. Install the accessory drive belt.
3. Install the negative battery cable.
Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).
