Wiper Switch: Service and Repair





Removal Procedure

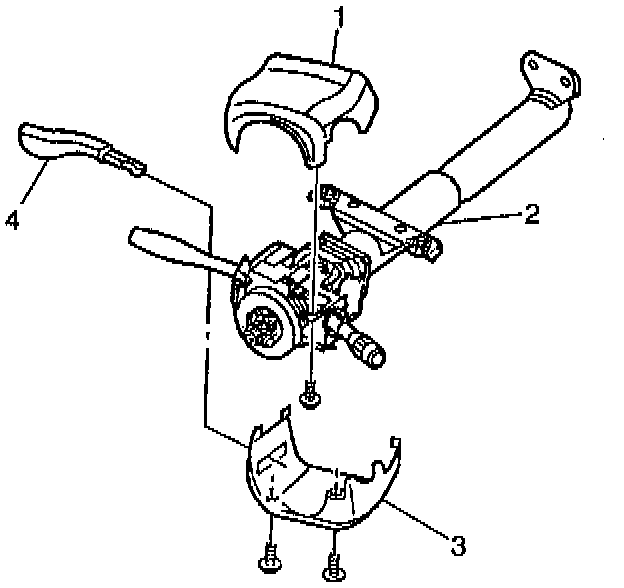

1. Remove the tilt wheel lever (4). Refer to Tilt Wheel Lever. Service and Repair
2. Remove the driver's side knee bolster trim panel.
3. Separate and remove the upper (1) and lower (3) steering column covers. Service and Repair





4. Disconnect the electrical connector from the wiring harness.

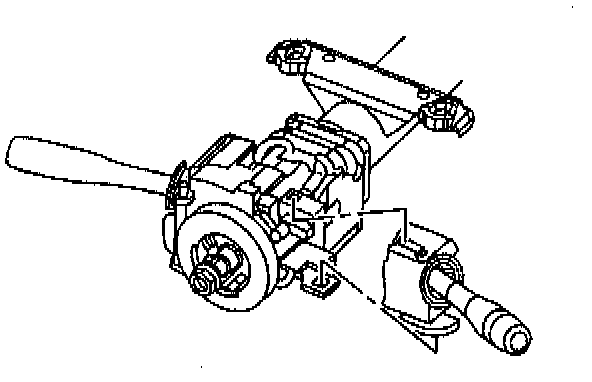

5. Release the upper and lower retaining clips and slide the wiper/washer switch from the column.

Installation Procedure
1. Slide the wiper/washer switch onto the column until the upper and lower retaining clips lock.
2. Connect the electrical connector into the wiring harness.
3. Install the upper (1) and lower (3) steering column covers. Service and Repair
4. Install the tilt wheel lever (4). Refer to Tilt Wheel Lever. Service and Repair
5. Install the driver's side knee bolster.
