Console Replacement

Description:

Remove or Disconnect
1. C/D player trim plate by unsnapping using a small flat-bladed tool, if equipped.
2. C/D player, if equipped.

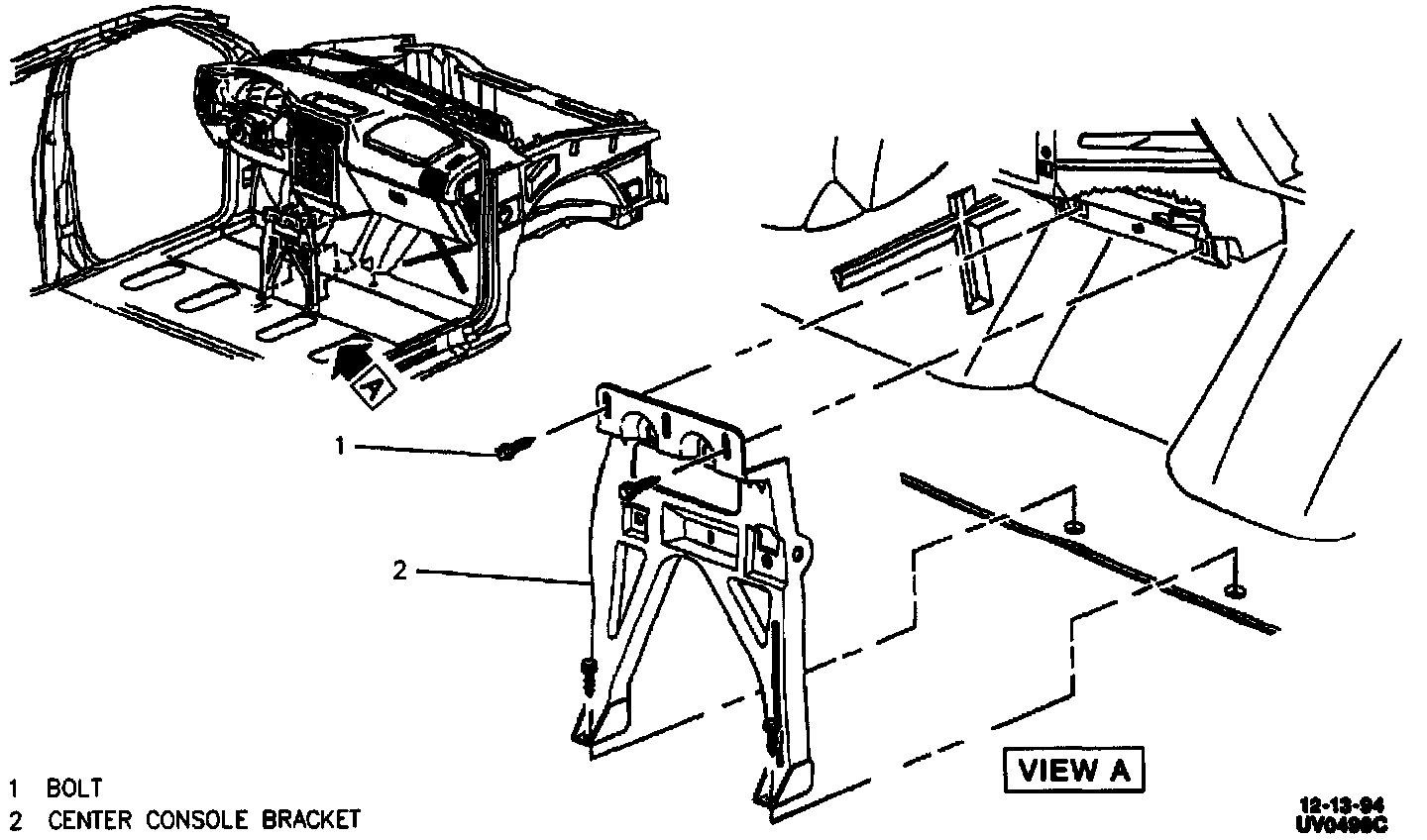

3. Bolts/screws from front floor console at bracket.
4. Front floor console from bracket.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Align front floor console tabs to rear bracket.
2. Align front floor console tabs to front bracket.
3. Slide front floor console tabs to brackets.
4. Bolts/screws to front floor console at bracket.

Tighten
- Bolts/screws to 2.5 N.m (22 lb.in.).

5. C/D player, if equipped.
6. C/D player trim plate, if equipped.
