Fluid Filter - A/T: Service and Repair

REMOVE OR DISCONNECT
1. Oil pan.
2. Filter.
- Screen filter. The lip ring seal pressed into the case should be removed only if replacement is necessary.

Inspect
^ Screen for foreign material:
- Metal particles.
- Clutch facing material.
- Rubber particles.
- Engine coolant.
^ Determine and correct source of contamination.
^ Screen in solvent and blow-dry.

INSTALL OR CONNECT

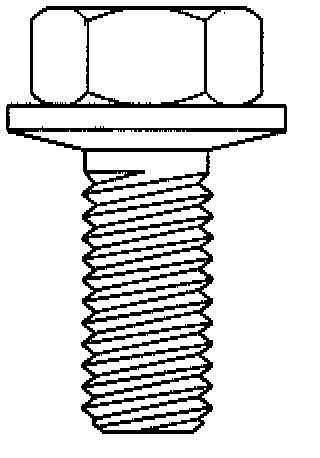

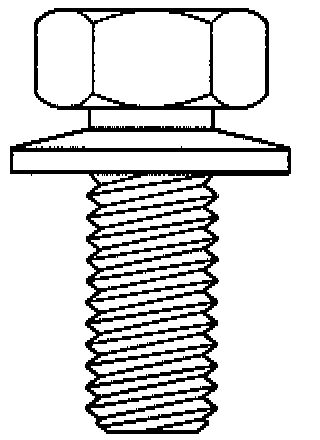

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interlaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Seal.
- New lip ring seal into case (if removed).
2. New filter (if required).
3. Oil pan.

Adjust
- Fluid level.

Inspect
- For proper completion of repairs.
- For proper fluid level.
- For fluid leaks.
