Battery Tray Replacement

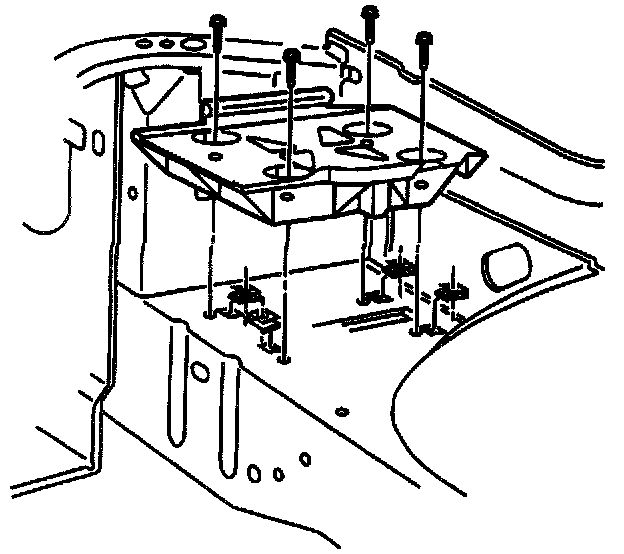

Battery Tray:




REMOVE OR DISCONNECT
1. Battery.
2. Battery tray bolts/screws.
3. Battery tray.

INSTALL OR CONNECT
1. Battery tray.
2. Battery tray bolts/screws.
Tighten
^ Bolts/screws to 10 N.m (89 lb. in.).
3. Battery.
