Steering Wheel Control Switch Assembly Replacement




Steering Wheel Control Switch Assembly Replacement

Removal Procedure





1. Remove the driver airbag module. Refer to Steering Wheel Inflatable Restraint Module Replacement Steering Wheel Inflatable Restraint Module Replacement.

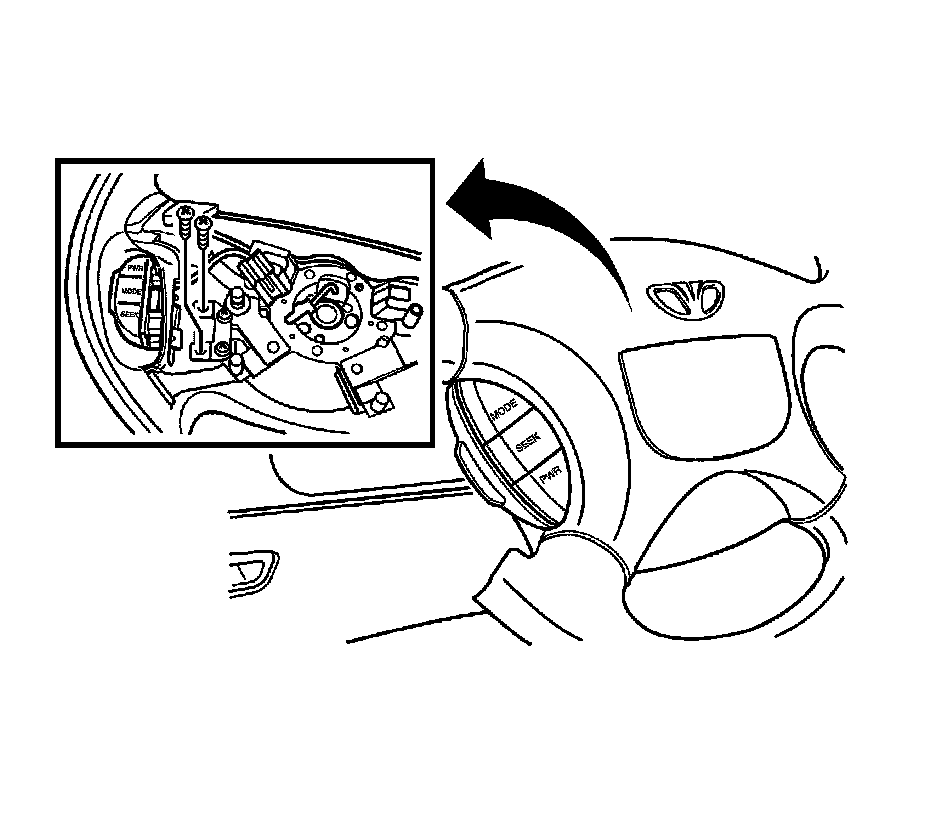

2. Remove the audio remote controller.

Installation Procedure





1. Install the audio remote controller.

2. Install the driver airbag module. Refer to Steering Wheel Inflatable Restraint Module Replacement Steering Wheel Inflatable Restraint Module Replacement.
