Grille: Service and Repair
Fascia Grille ReplacementRemoval Procedure 1.
Open the
hood.
2.
Remove the front
bumper fascia. Refer to Front Bumper Fascia Replacement .
3.

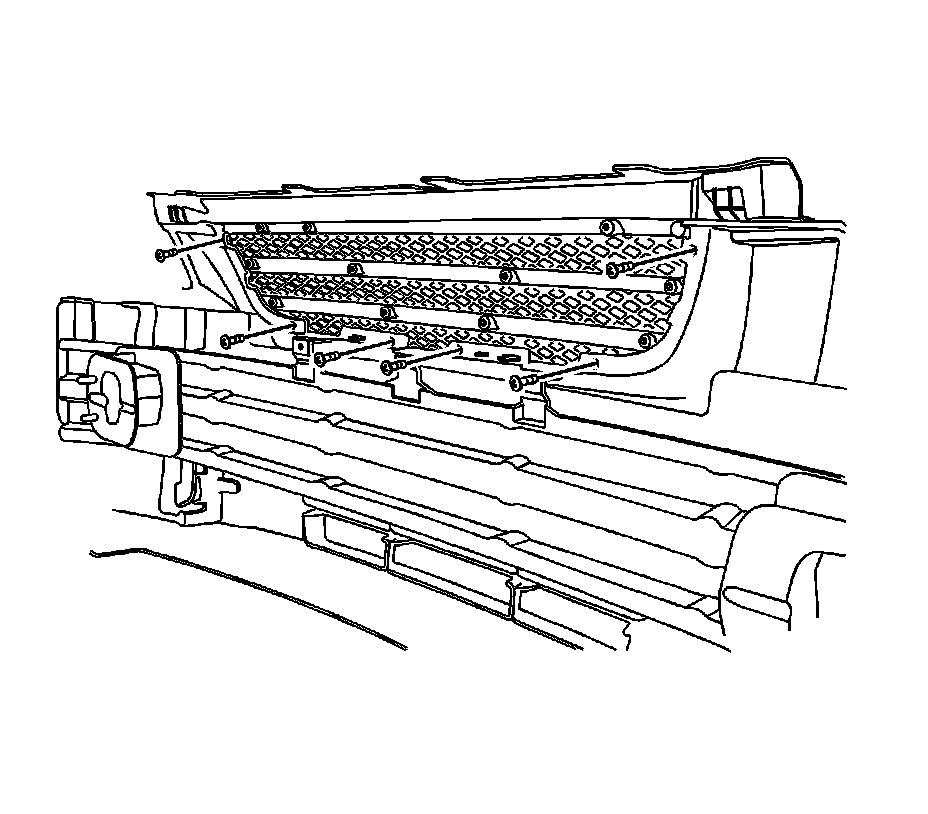

Remove the screws and the radiator grille.
Installation Procedure Notice: Refer to Fastener Notice .
1.
Install the radiator grille with the screw.
2.
Install the front
bumper fascia. Refer to Front Bumper Fascia Replacement .
3.
Close the
hood.
