Rear Door Lock Replacement

Rear Door Lock Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the water deflector.

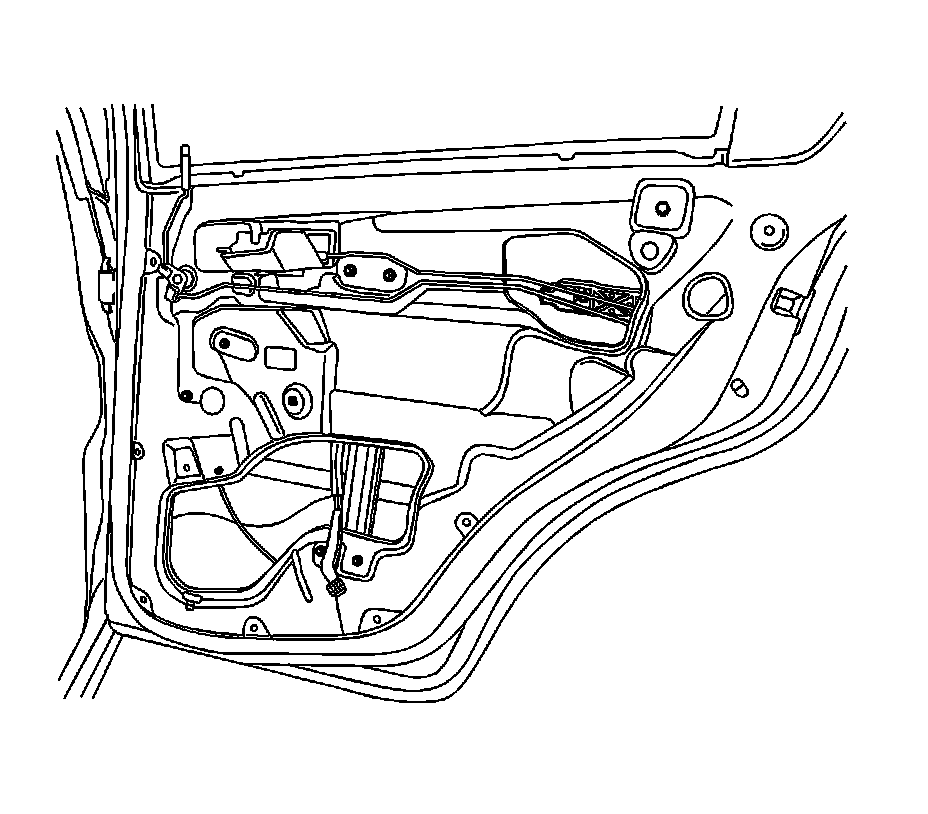

3. Disconnect the inside door handle and the lock rods.




4. Disconnect the outside door handle and the lock rods.

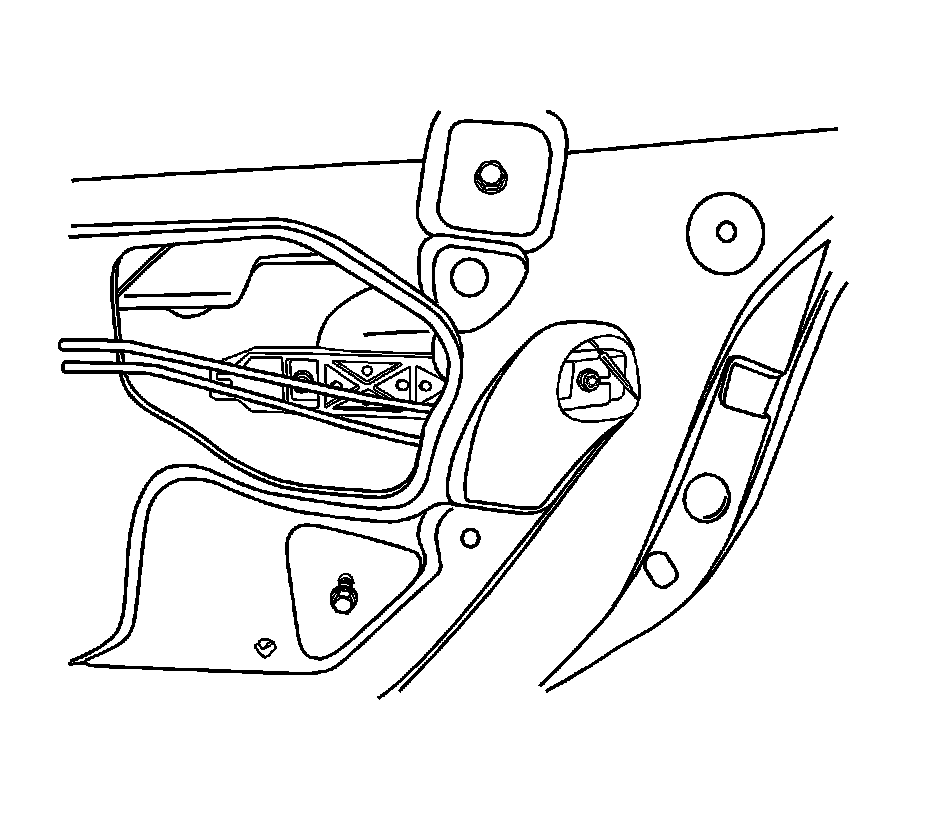

5. Remove the bolts and the guide rail.

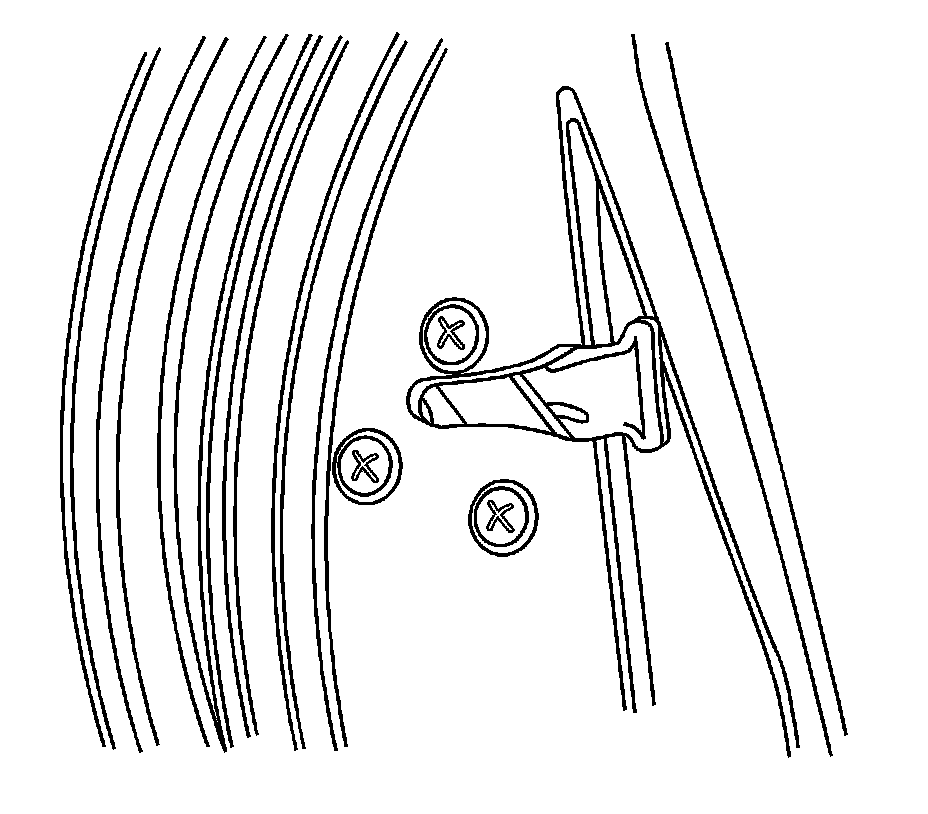

6. Remove the screws and the lock.
7. Disconnect the electrical connector.
8. Disconnect the lock rods at the lock.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the rear door lock with the screws.

Tighten the rear door lock screws to 8 N.m (71 lb in).




2. Connect the electrical connector.
3. Install the guide rail with the bolts.

Tighten the guide rail bolts to 7 N.m (62 lb in).




4. Connect the outside door handle and the lock rods.




5. Connect the inside door handle and the lock rods.
6. Install the water deflector.
7. Connect the negative battery cable.
