I/P Views

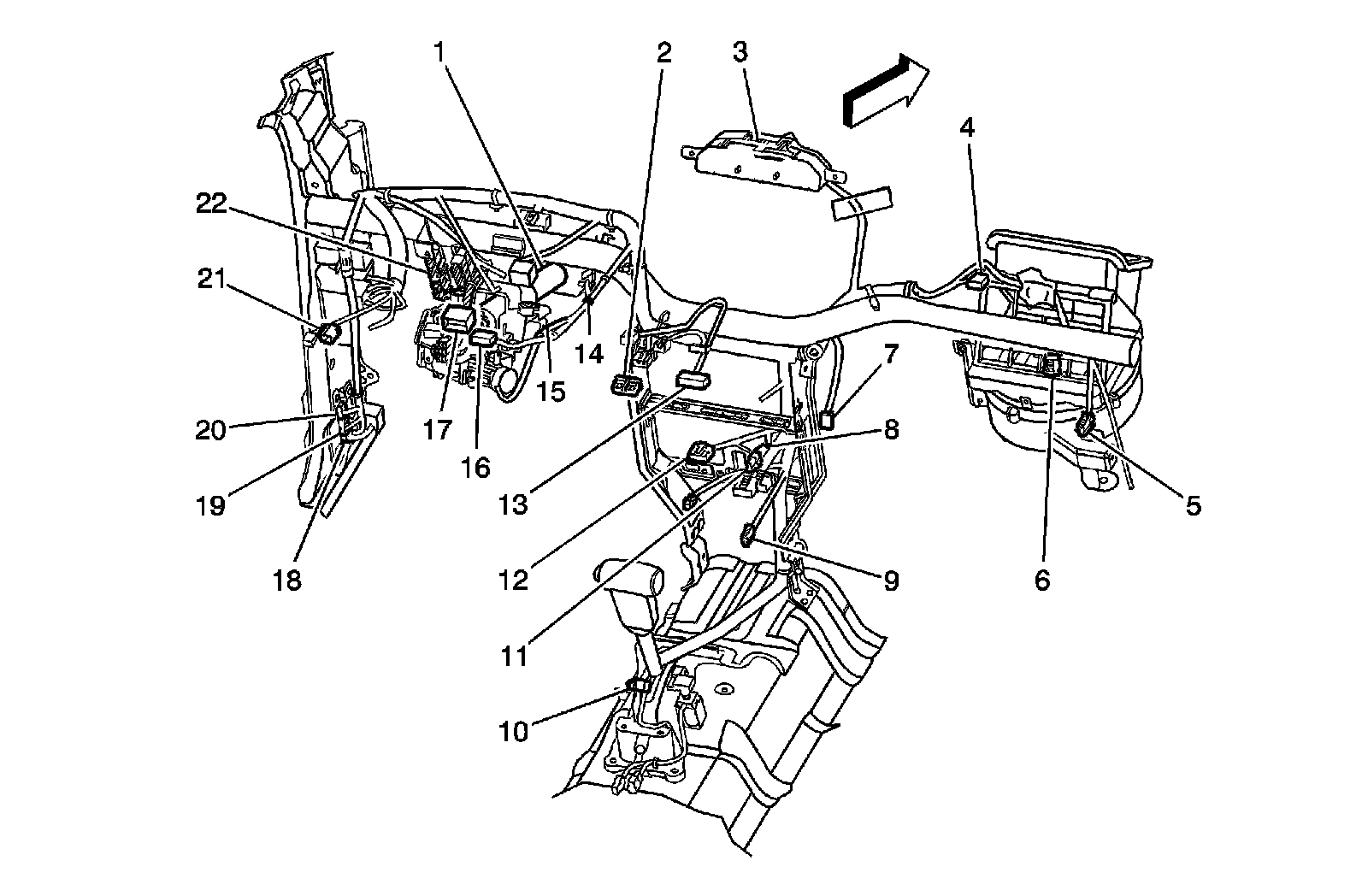

Harness Routing Views (Hatchback)

I/P Harness

1 - Cluster
2 - DLC
3 - Clock
4 - Intake Actuator
5 - Blower Motor
6 - Resistor Blower
7 - DRL
8 - Connector C214
9 - Cigar Lighter
10 - BTSI Solenoid
11 - Illumination
12 - Blower Switch
13 - Audio
14 - Key Remind Switch
15 - Contact Coil
16 - Wiper Switch
17 - Inflatable Restraint Steering Wheel Module Coil
18 - Connector C210
19 - Connector C212
20 - Connector C213
21 - Head Lamp Leveling Switch
22 - C201 - C205
