Engine Room - 2 of 2

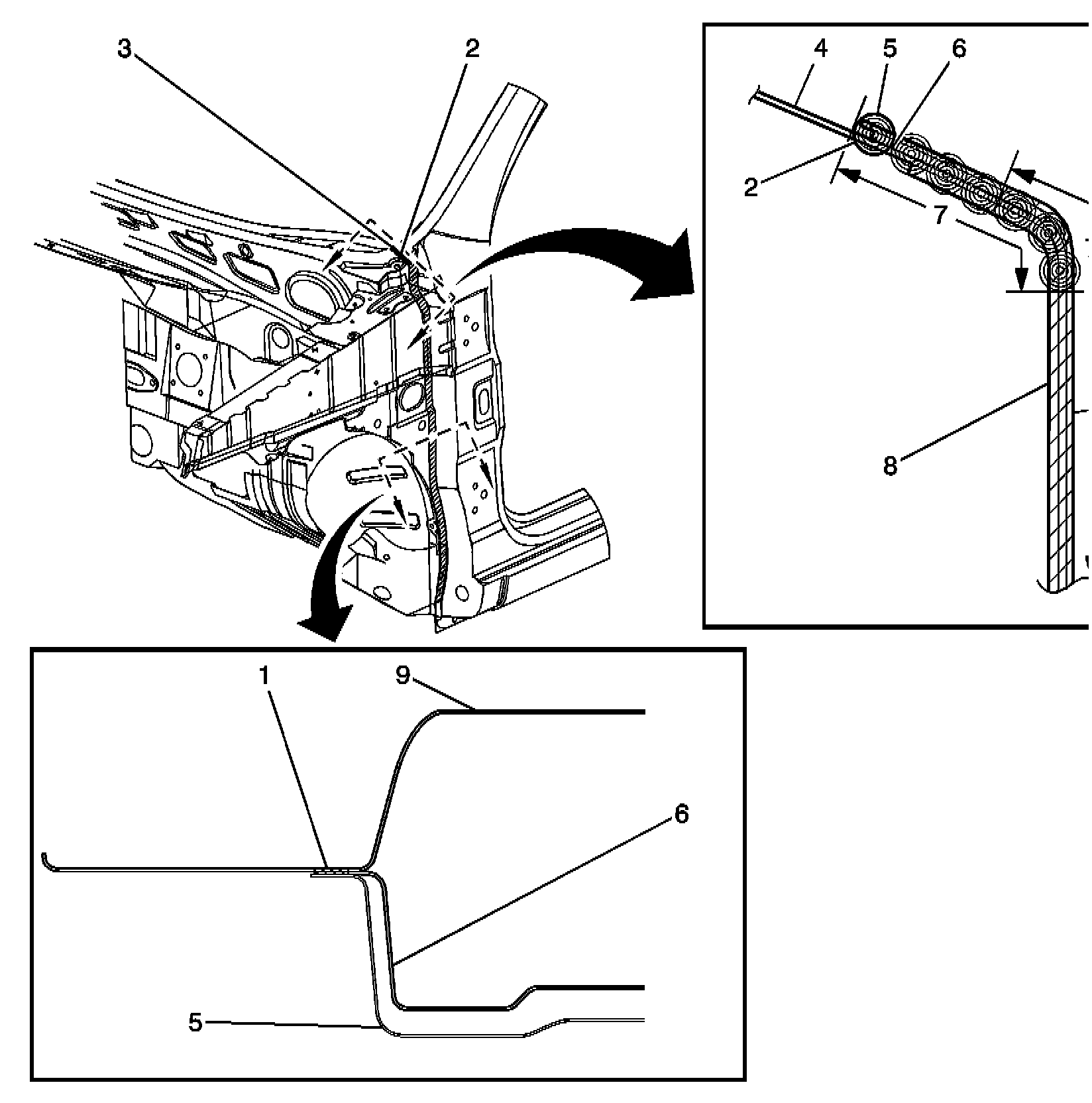

Engine Room- 2 of 2�FQ:
(1)Spot Weld Sealer
(2)Body Sealer
(3)Sealant to be wiped
(4)Dash Top Panel
(5)Side Outer Panel
(6)Front Pillar Lower Reinforcement
(7)Sealing area
(8)
Hood Hinge Lower Bracket
(9)Dash Side Panel
