Roof - 1 of 2

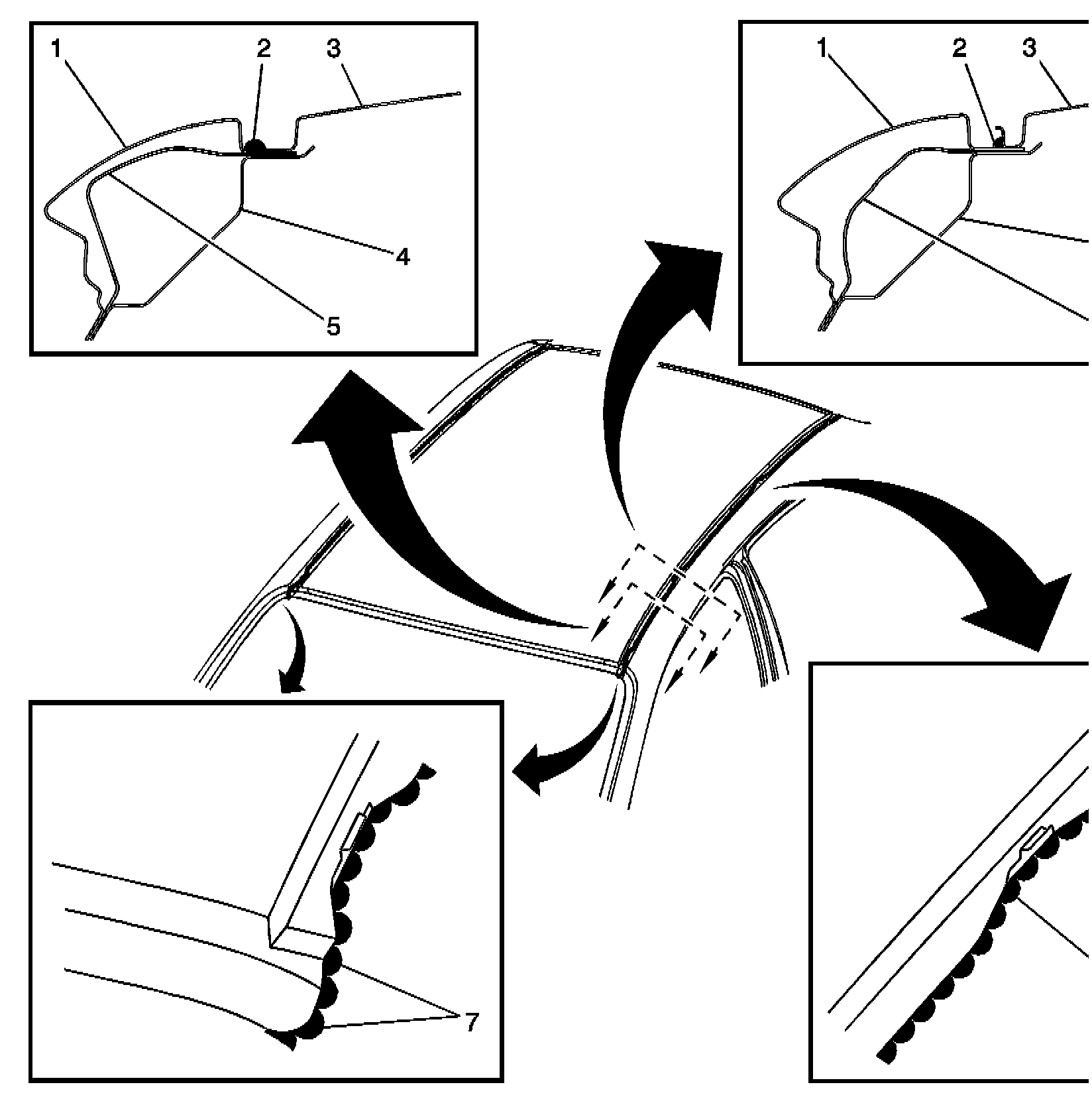

Roof- 1 of 2

3�FQ:





(1)Side Outer Panel

(2)Body Sealer

(3)Roof Panel

(4)Roof Side Inner Panel

(5)Front Pillar Upper Reinforcement

(6)Sealer to be Wiped for Roof Molding Mounting

(7)Sealer to be Wiped for Glass Matching
