Wiper Gear Box: Service and Repair

Air Inlet Grille Panel Replacement

Removal Procedure

1. Raise the hood and support it with the hood prop.
2. Remove the nuts and the wiper arms.

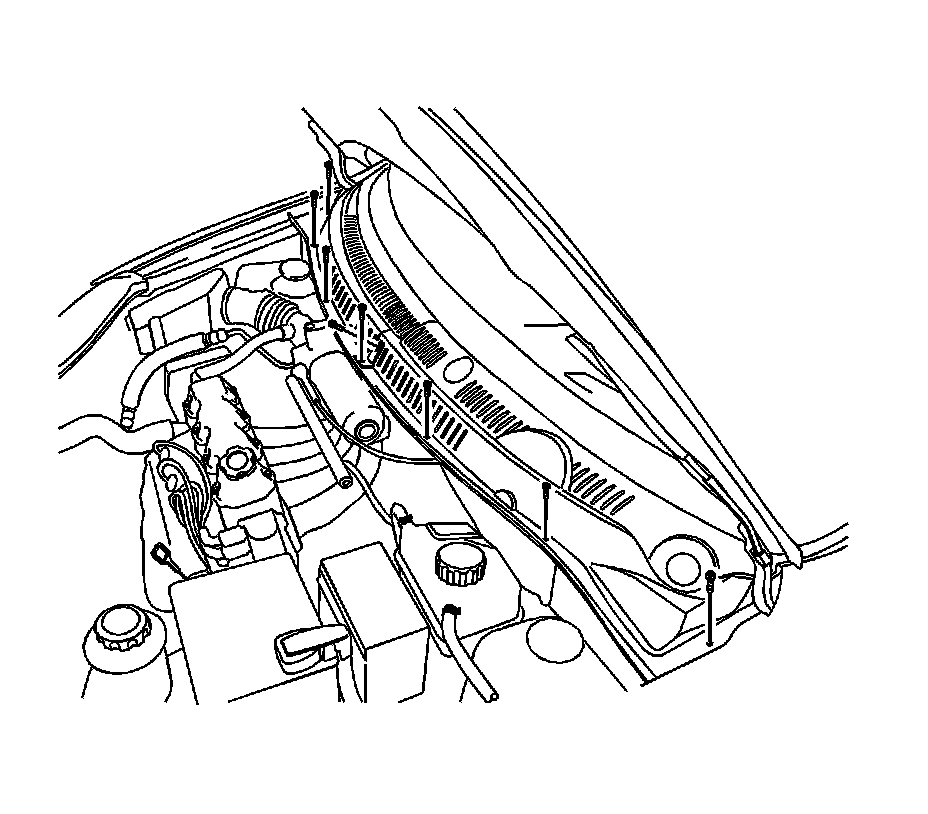

3. Remove the air inlet grille screws and the 2-piece grille.

Installation Procedure

Notice: Refer to Fastener Notice.

1. Install the 2-piece grille and the air inlet grille screws.

Tighten the air inlet grille screws to 2 N.m (18 lb in).

2. Install the nuts and the wiper arms.
