U0101

DTC U0100-U0299

Circuit Description

Modules connected to the high speed GMLAN serial data circuits monitor for serial data communications during normal vehicle operation. Operating information and commands are exchanged among the modules. The modules have prerecorded information about what messages are needed to be exchanged on the serial data circuits, for each virtual network. The messages are supervised; also, some periodic messages are used by the receiver module as an availability indication of the transmitter module. The supervision time-out period is 250 ms. Each message contains the identification number of the transmitter module.

DTC Descriptors

This diagnostic procedure supports the following DTCs:

- DTC U0100 Lost Communication With Engine Control Module (ECM) or lost communication with Powertrain Control Module (PCM).
- DTC U0101 Lost Communication With Transmission Control Module (TCM).
- DTC U0111 Lost Communication With Battery Energy Control Module (BECM) A.
- DTC U0120 Lost Communication With Starter/Generator Control Module (SGCM).
- DTC U0121 Lost Communication With Electronic Brake Control Module (EBCM).
- DTC U0126 Lost communication with Power Steering Control Module (PSCM).
- DTC U0140 Lost Communication With Body Control Module (BCM).
- DTC U0155 Lost communication with Instrument Panel Cluster (IPC).

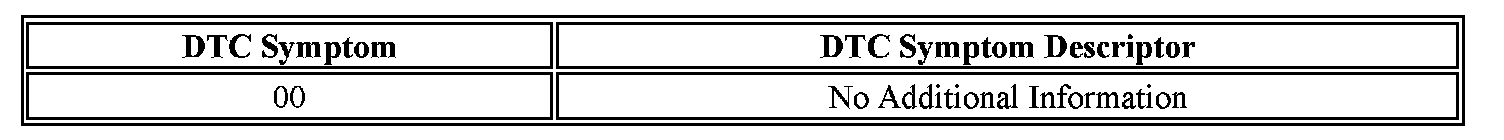

This vehicle has DTCs which include DTC Symptoms.






Conditions for Running the DTCs

- Voltage supplied to the modules is in the normal operating voltage range.
- The vehicle power mode requires serial data communication to occur.
- The DTC U0001 does not have a current status.

Conditions for Setting the DTC

A supervised periodic message that includes the transmitter module availability has not been received.

Action Taken When the DTC Sets

The module uses a default value for the missing parameter.

Conditions for Clearing the DTC

- A current DTC clears when the malfunction is no longer present.
- A history DTC clears when the module ignition cycle counter reaches the reset threshold, without a repeat of the malfunction.

Diagnostic Aids

- Sometimes, while diagnosing a specific customer concern or after a repair, you may notice a history U-code present. However, there is no associated "current" or "active" status. Loss-of- communication U-codes such as these can set for a variety of reasons. Many times, they are transparent to the vehicle operator and technician, and/or have no associated symptoms. Eventually, they will erase themselves automatically after a number of fault-free ignition cycles. This condition would most likely be attributed to one of these scenarios:
- A control module on the data communication circuit was disconnected while the communication circuit is awake.
- Power to one or more modules was interrupted during diagnosis.
- A low battery condition was present, so some control modules stop communicating when battery voltage drops below a certain threshold.
- Battery power was restored to the vehicle and control modules on the communication circuit did not all re-initialize at the same time.
- If a loss-of-communication U-code appears in history for no apparent reason, it is most likely associated with one of the scenarios above. These are all temporary conditions and should never be interpreted as an intermittent fault, causing you to replace a part.
- A control module may have a U-code stored in history that does not require any repairs. Issues with late or corrupted messages between control modules can be temporary with no apparent symptom or complaint; this does not mean the control module is faulty. Do not replace a control module based only on a history U-code.
- Do not replace a control module reporting a U-code. The U-code identifies which control module needs to be diagnosed for a communication issue.
- Communication may be available between the BCM and the scan tool with either the low or high speed GMLAN serial data system inoperative. This condition is due to the BCM using both the low and high speed GMLAN systems.
- Use to determine if the module uses high or low speed GMLAN serial data communications.
- Some control modules may not have internal protection for specific control circuits and may open a B+ or ignition fuse. If a fuse is open and the B+ or ignition circuit is not shorted to ground, ensure none of the control circuits are shorted to ground before replacing the control module.
- This diagnostic can be used for any control module that is not communicating, regardless of the type of serial data circuit it is connected to, providing the vehicle is equipped with the control module.

Test Description

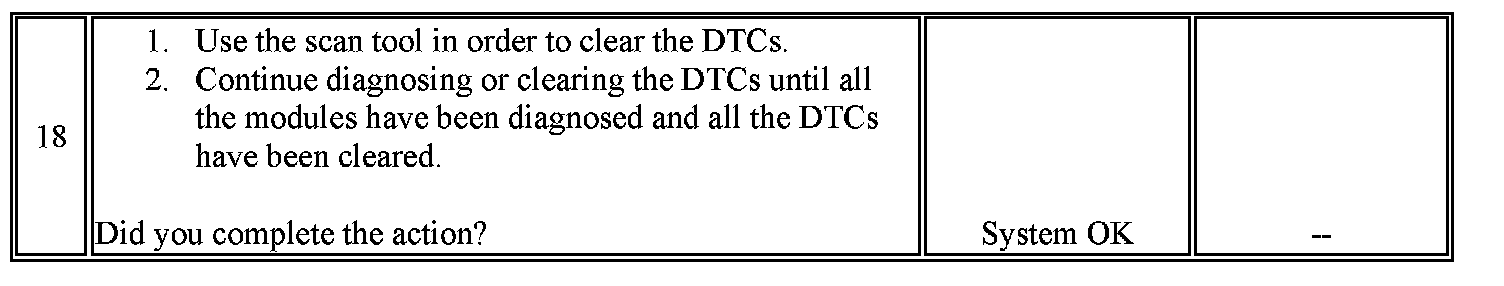

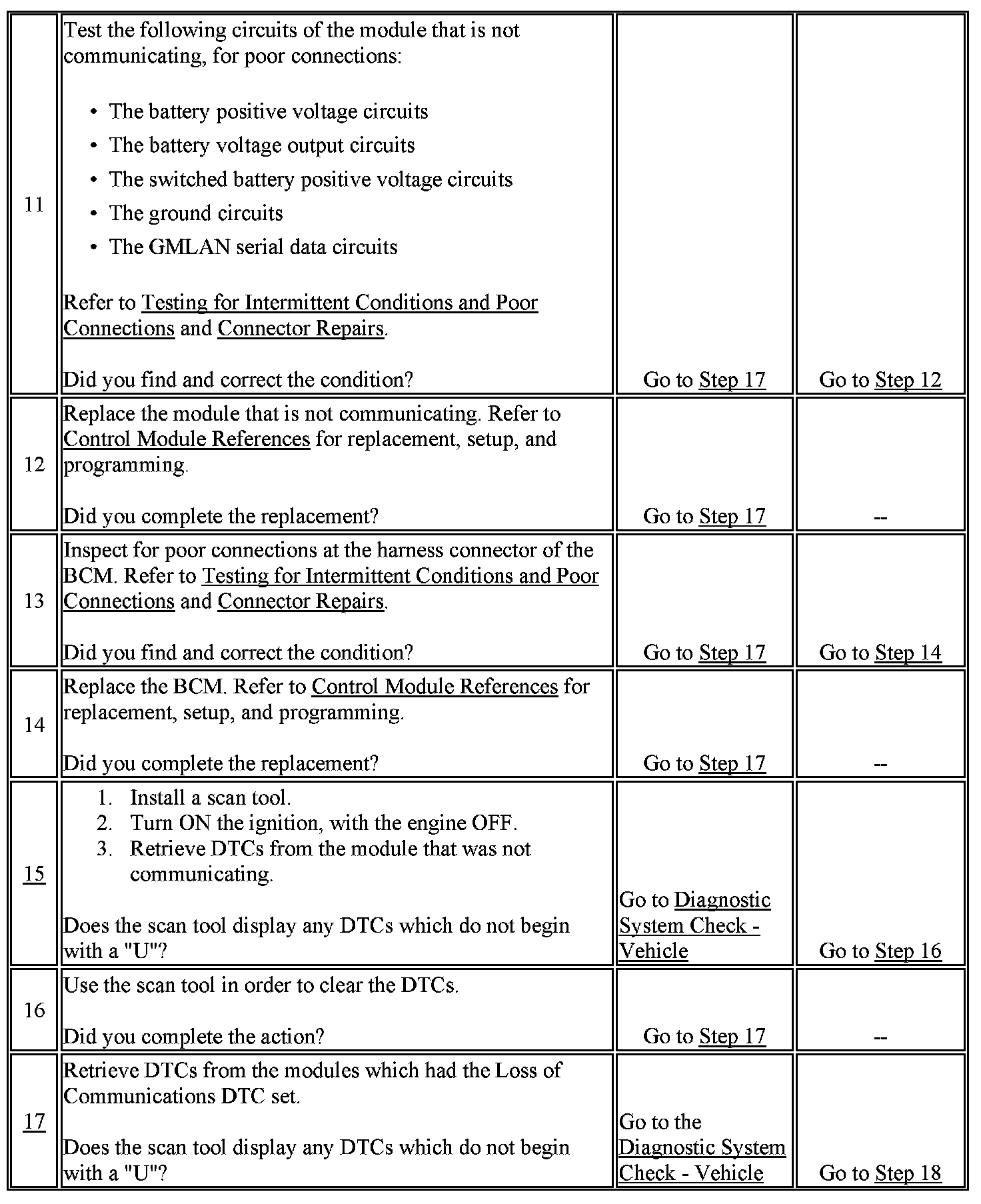

The numbers below refer to the step numbers on the diagnostic table.

3. The scan tool communicate with OnStar via class 2, so for high speed GMLAN data link diagnostic the OnStar will not be considered.
15. The module which was not communicating due to an open in the GMLAN serial data circuits may have set Loss of Communication DTCs for those modules that it was monitoring.
17. The modules which can communicate indicate the module which cannot communicate. You must clear the DTC from these modules to avoid future misdiagnosis.
