Drum Brake System Diagnosis



Drum Brake System Diagnosis

Test Description

The number below refers to the step number on the diagnostic table:
18. Drum brake backing plates that come in contact with brake drums may cause brake system noise.

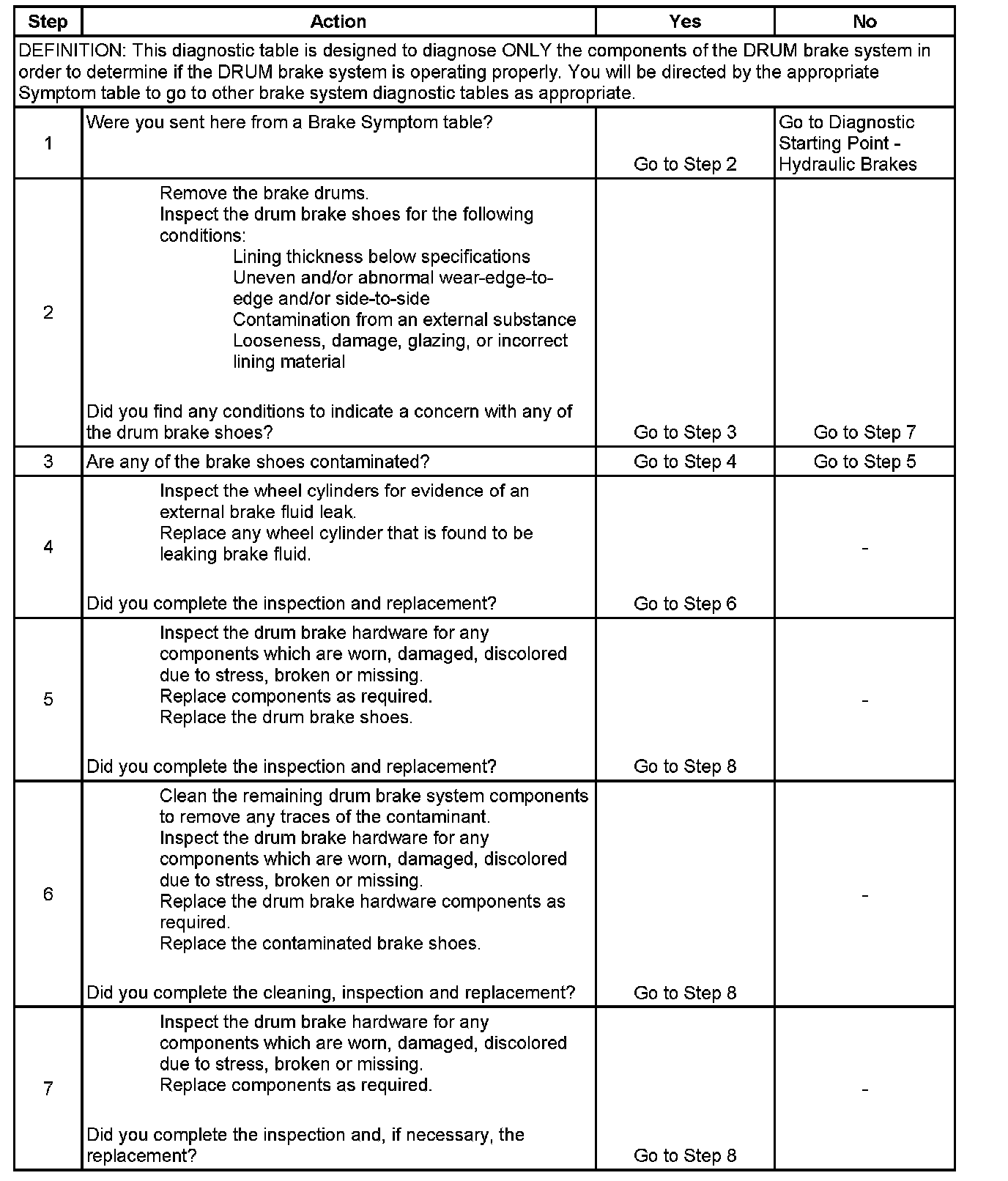

Step 1 - Step 7:
