Central Control Module



Entertainment/Communication Component Views

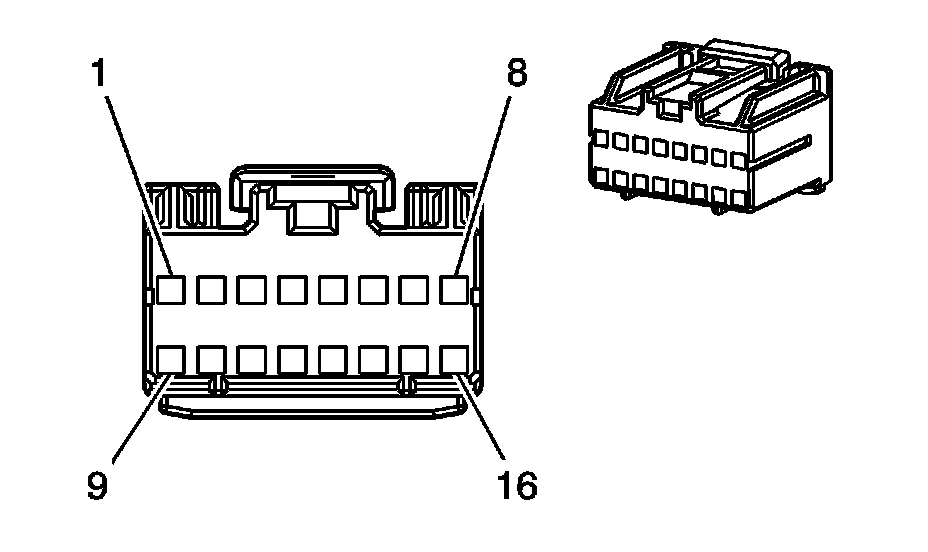

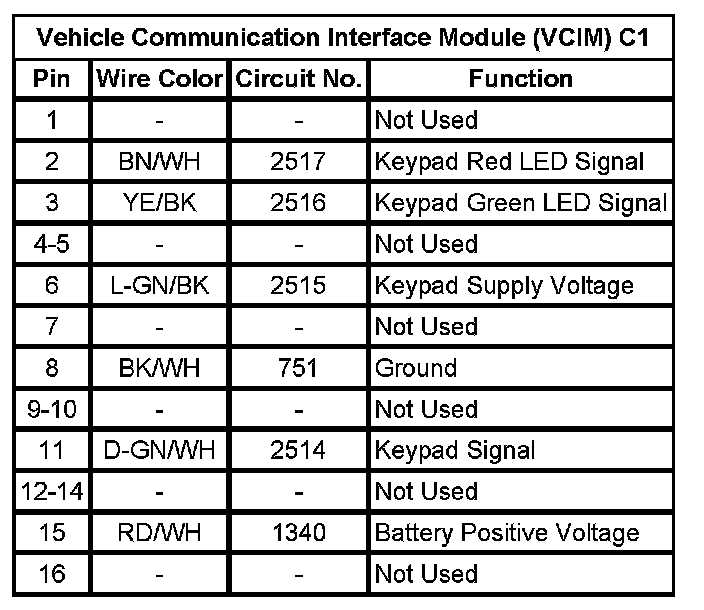

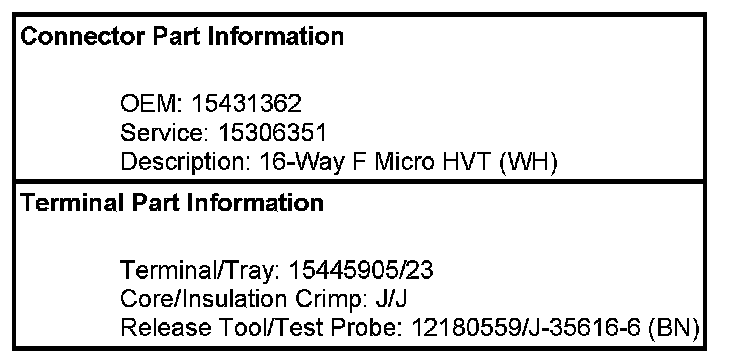

Vehicle Communication Interface Module (VCIM) C1

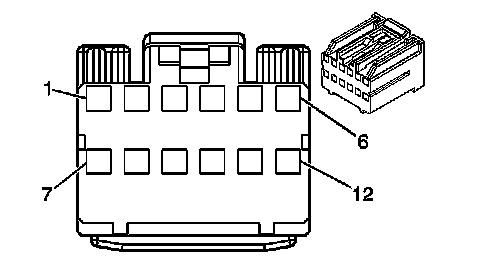

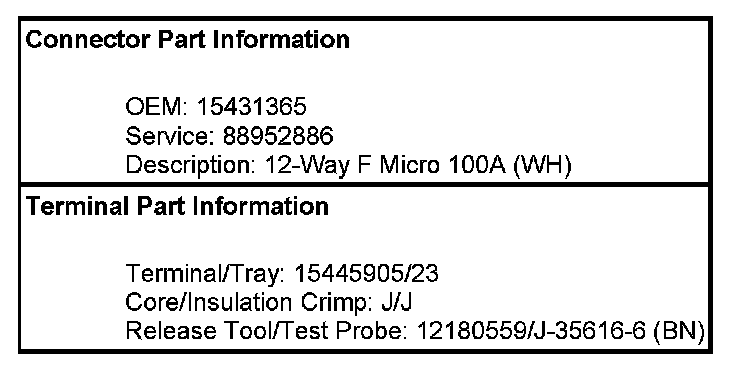

Vehicle Communication Interface Module (VCIM) C2

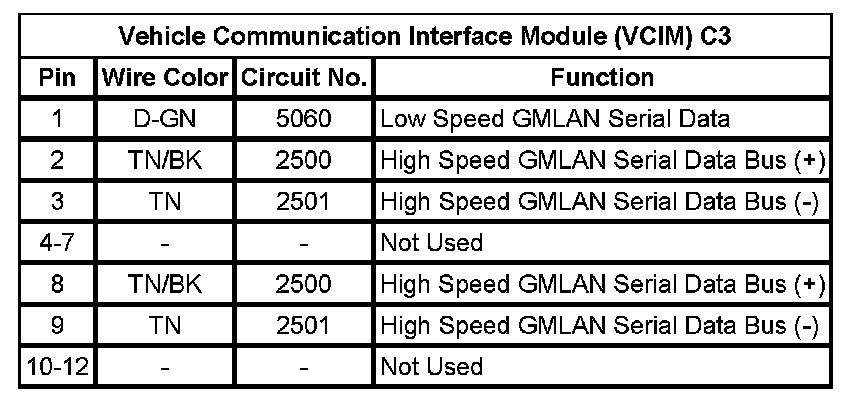

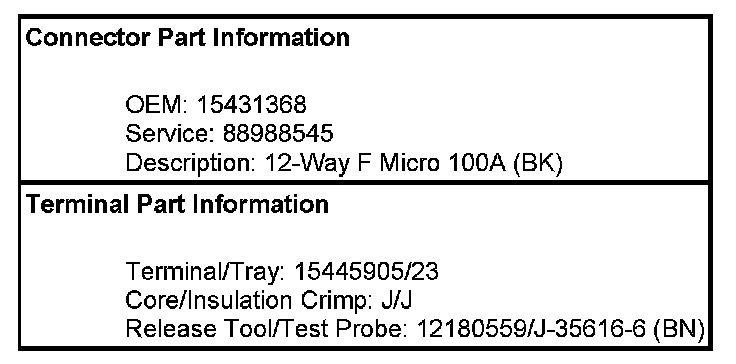

Vehicle Communication Interface Module (VCIM) C3
