Remote Function Connector End Views
Remote Function Connector End Views
Remote Function Connector End Views

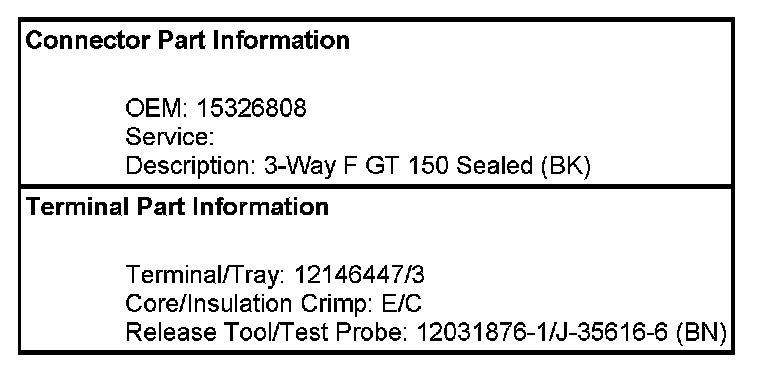

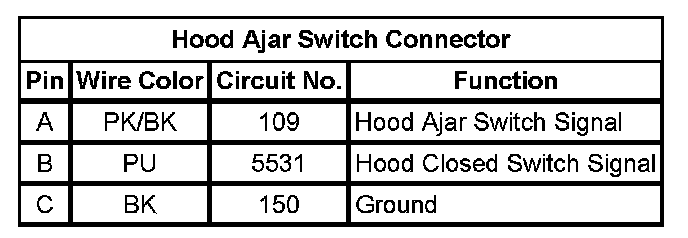

Hood Ajar Switch Connector
Remote Control
Door Lock Receiver (RCDLR)
