Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C100 - C199 >> C161

C161

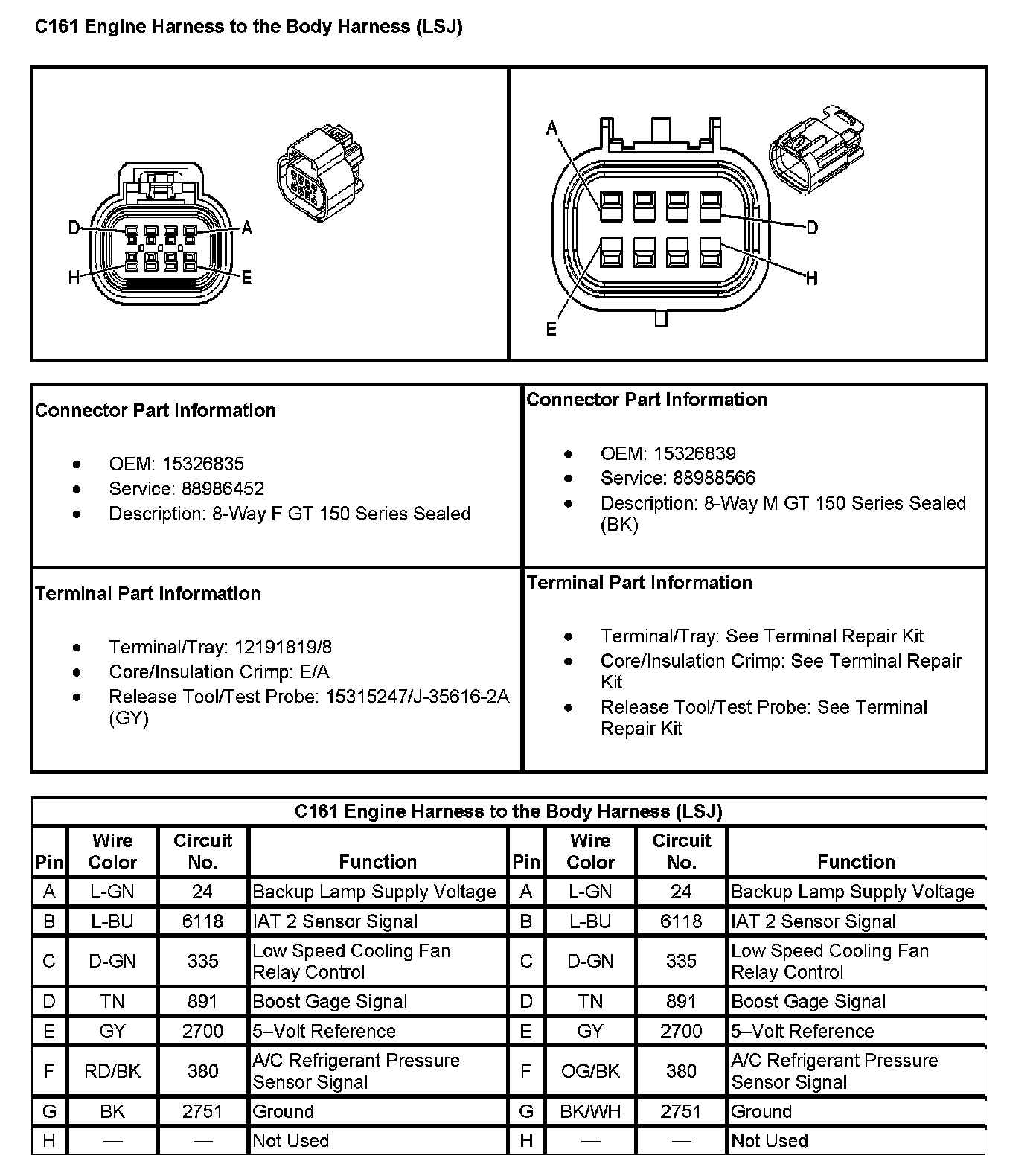

C161 Engine Harness To The Body Harness (LSJ):
