Ignition Control Module

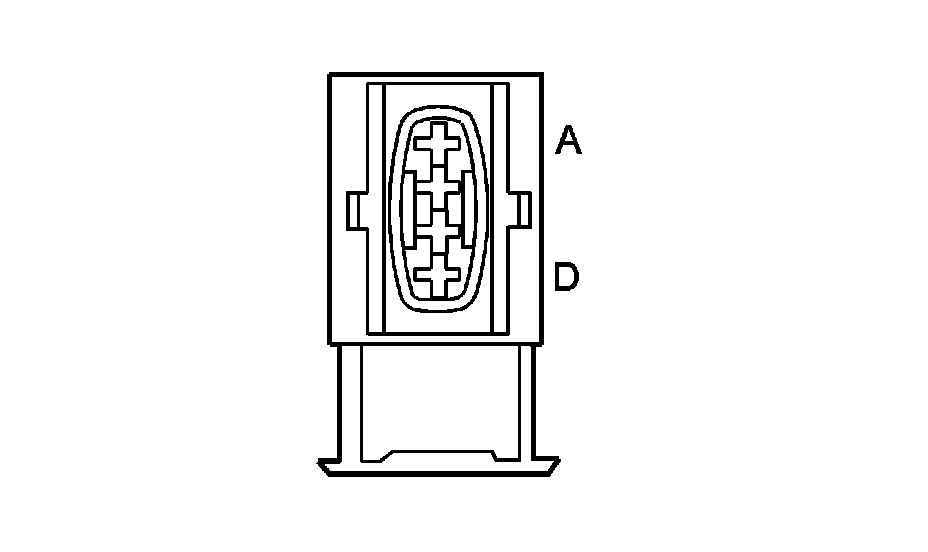

Engine Controls Connector End Views

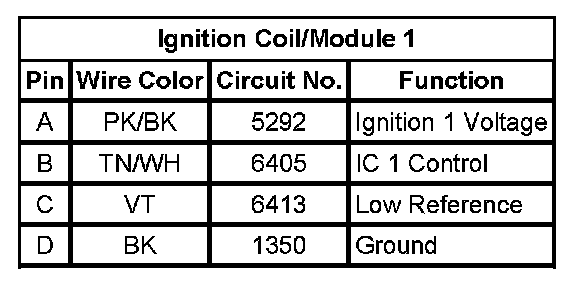

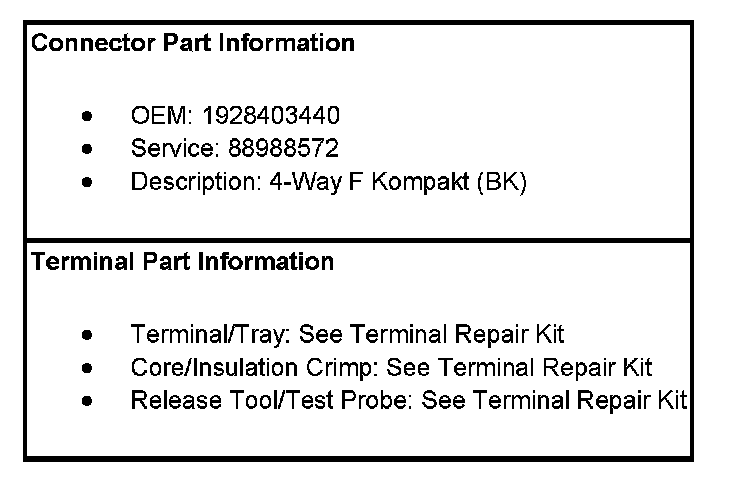

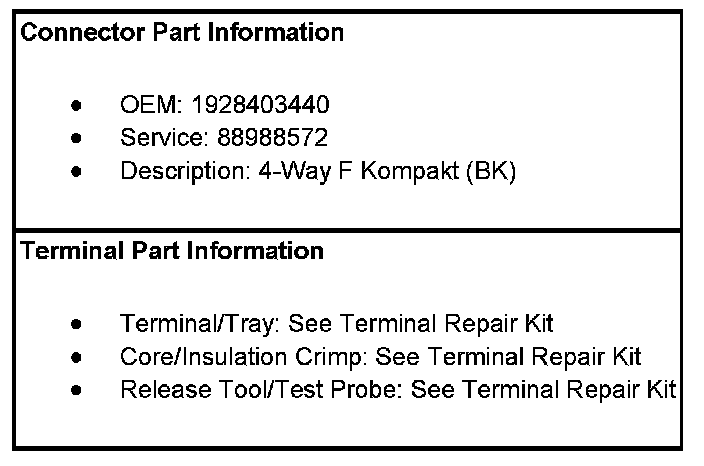

Ignition Coil/Module 1

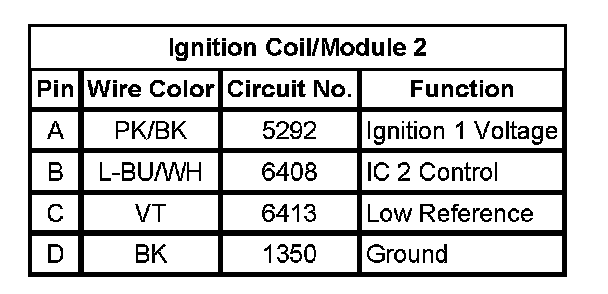

Ignition Coil/Module 2

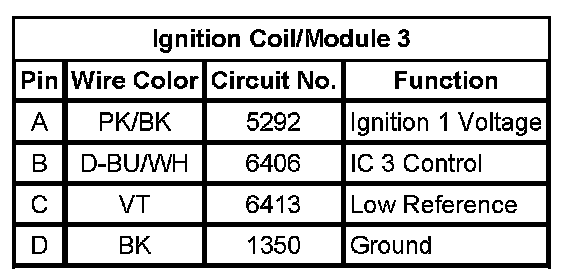

Ignition Coil/Module 3

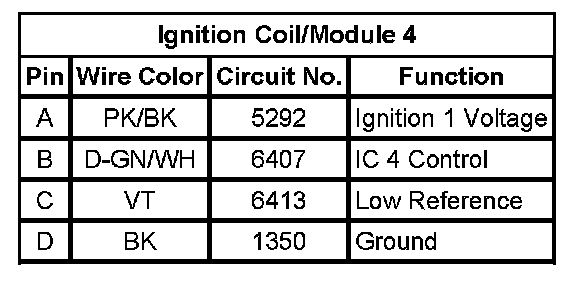

Ignition Coil/Module 4
