Manifold Pressure/Vacuum Sensor



Engine Controls Connector End Views

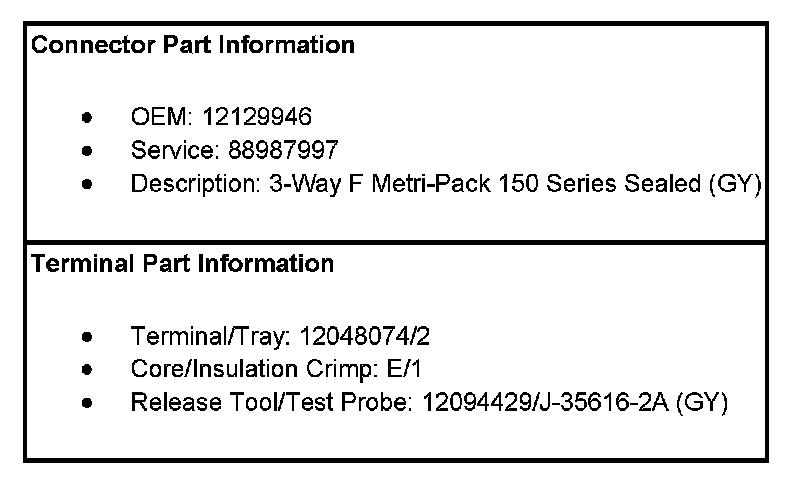

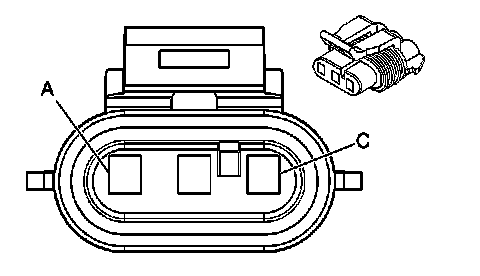

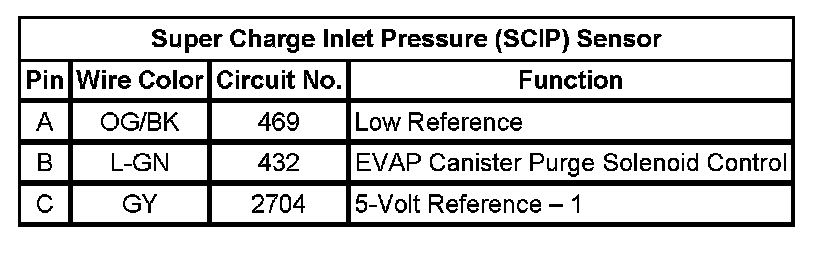

Super Charge Inlet Pressure (SCIP) Sensor

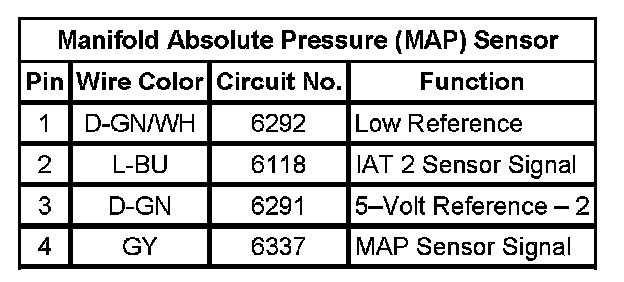

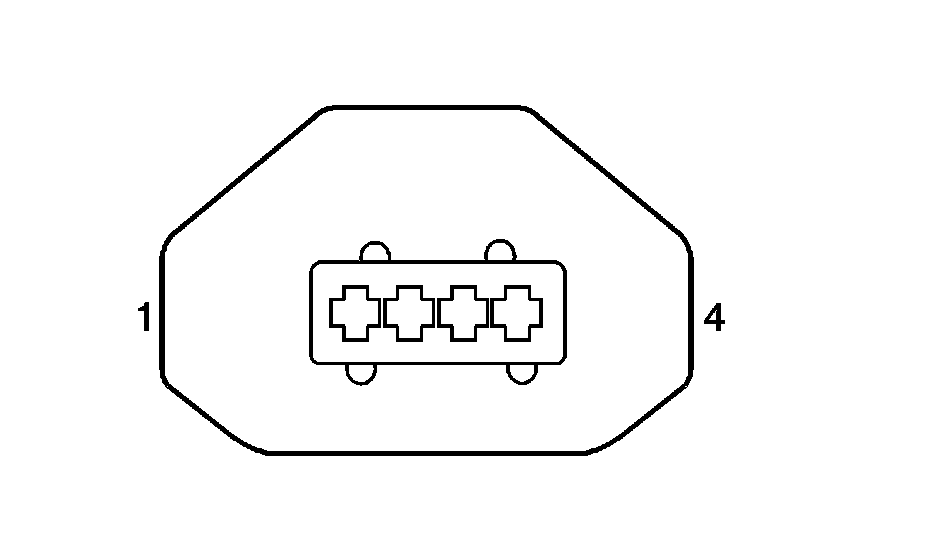

Manifold Absolute Pressure (MAP) Sensor
