MU3 - Manual Transaxle



Manual Transmission Connector End Views

Clutch Pedal Position (CPP) Switch

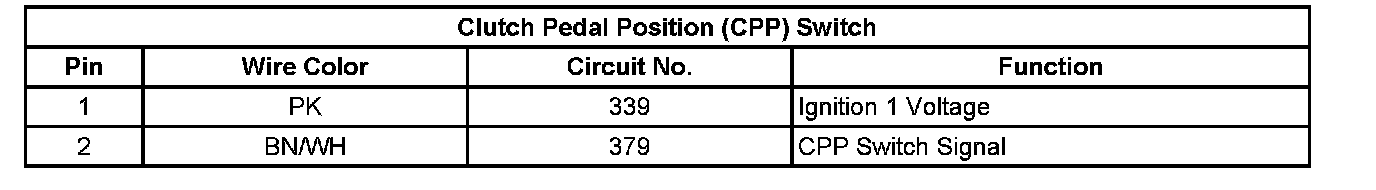

Clutch Pedal Position (CPP) Switch:

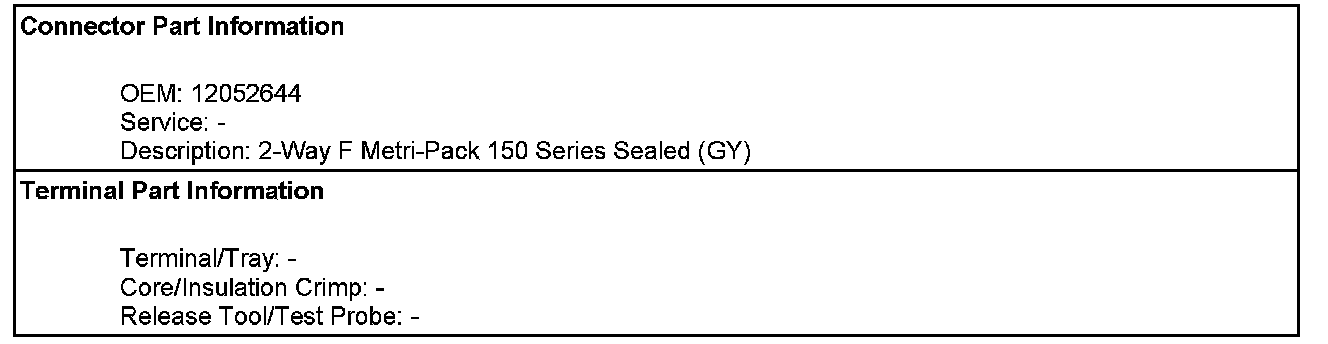

Vehicle Speed Sensor (VSS)

Reverse Lockout Solenoid:

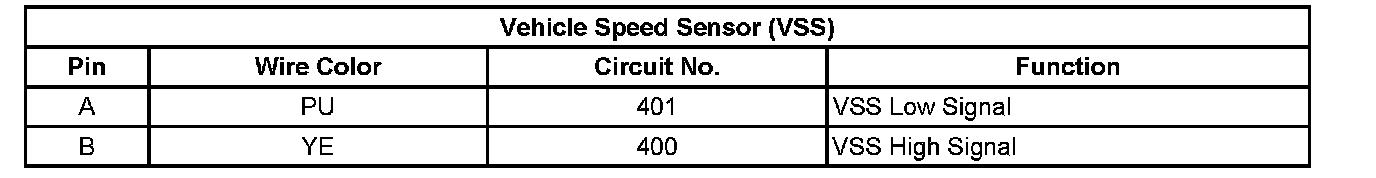

Vehicle Speed Sensor (VSS):
