Oil Pressure Sensor
Oil Pressure Sensor
Displays and Gages Connector End Views

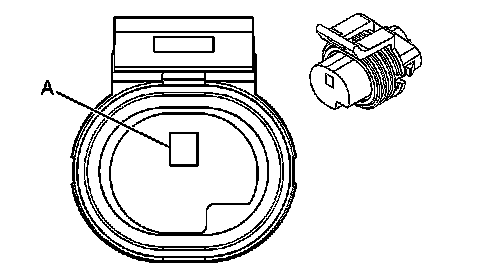

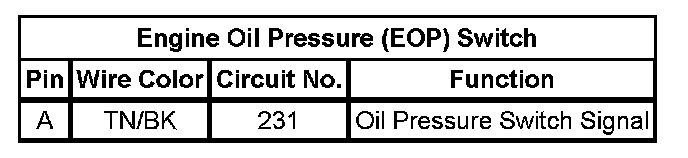

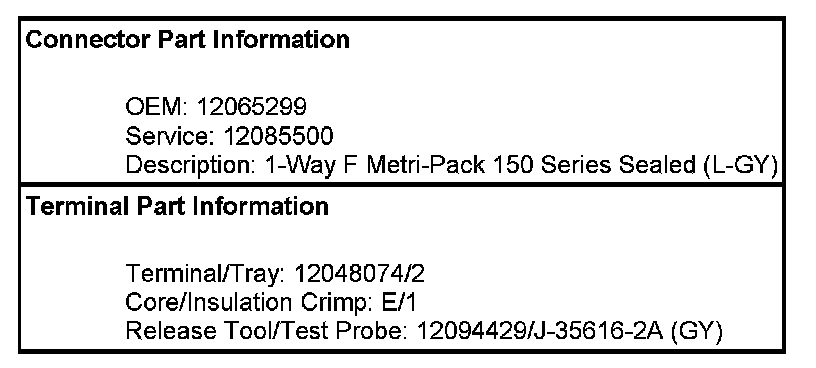

Engine Oil Pressure (EOP) Switch
