Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Actuator

Power Trunk / Liftgate Lock Actuator

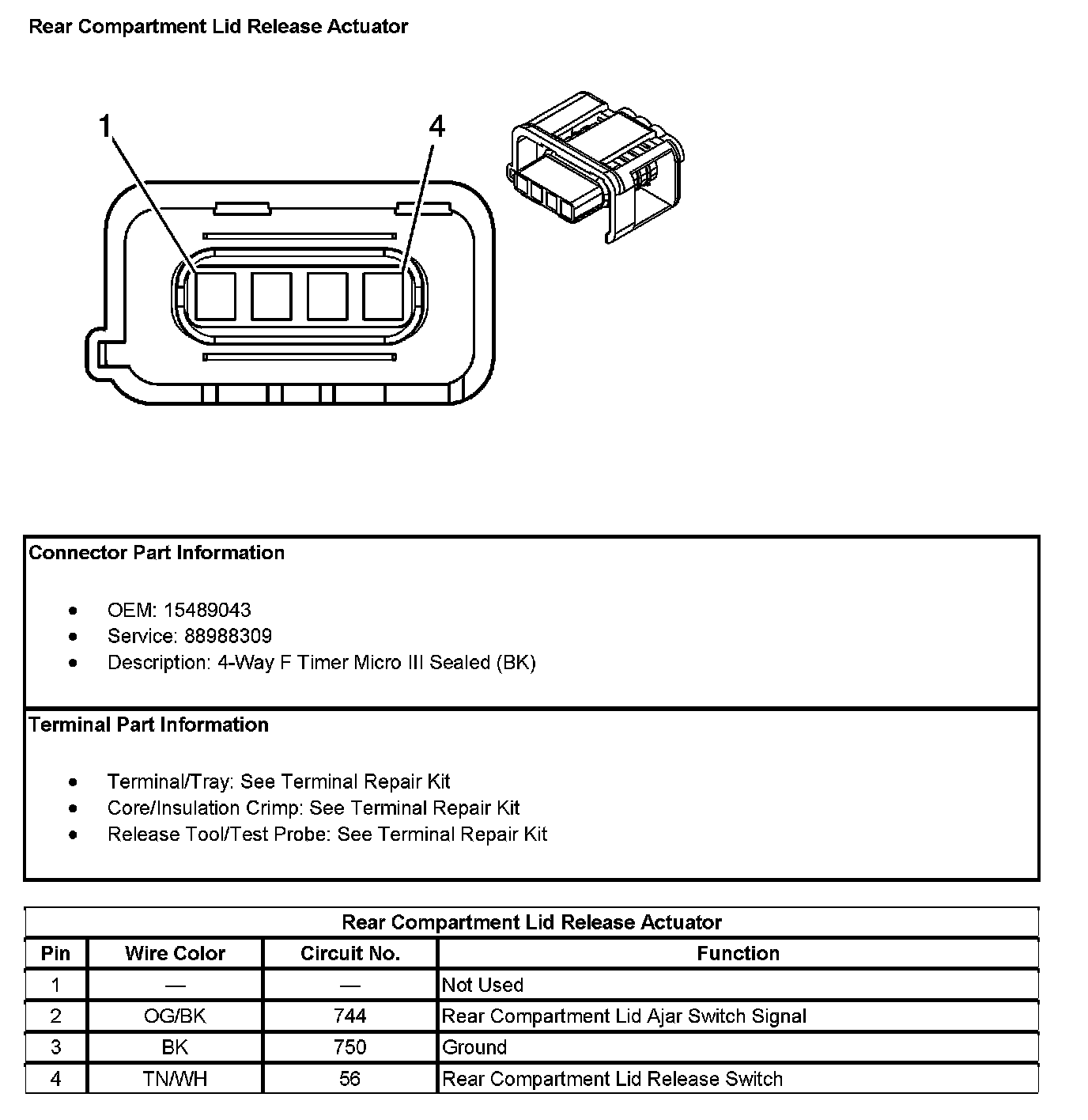

Rear Compartment Lid Release Actuator:
