Power Window Switch

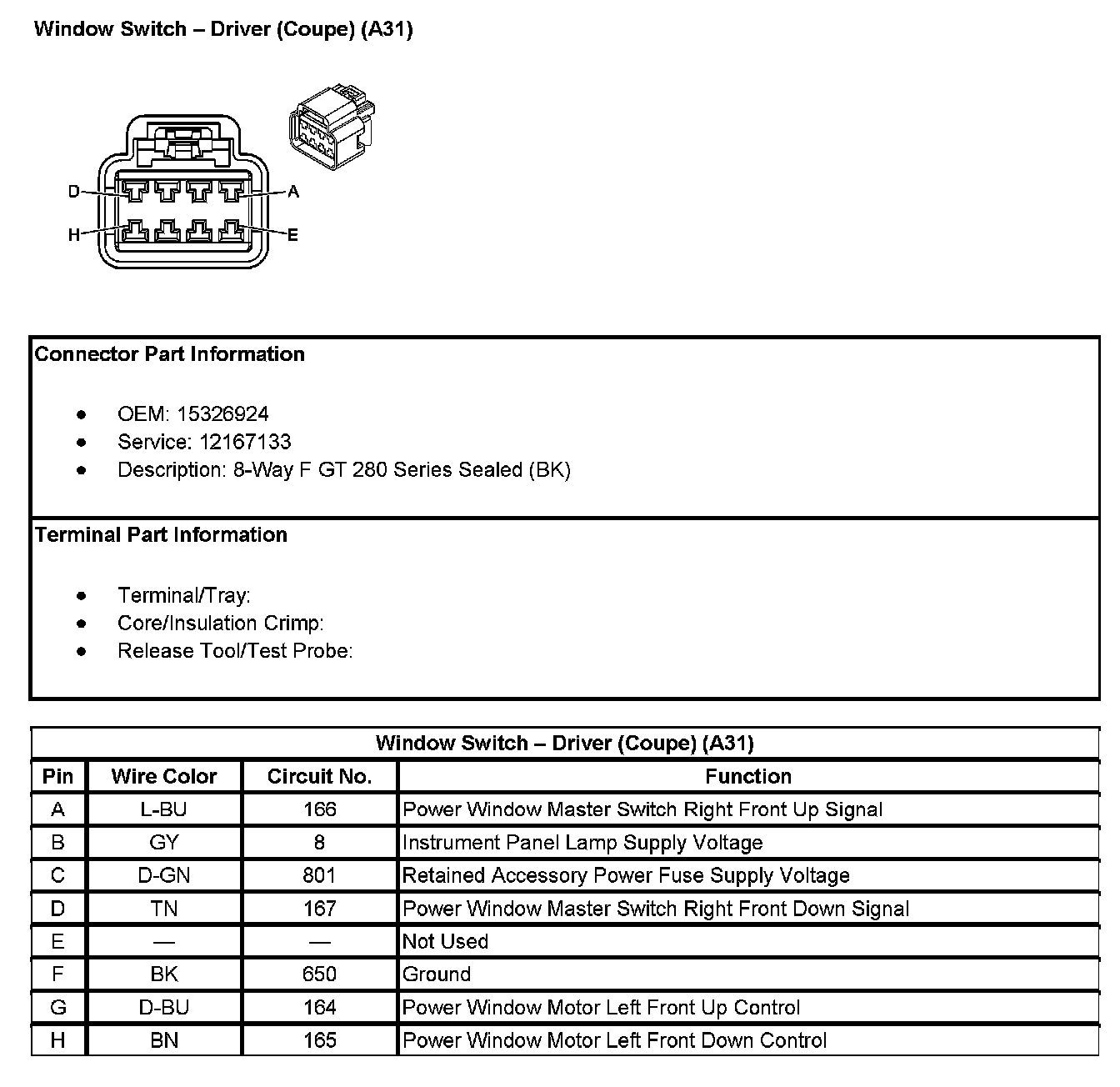

Window Switch - Driver (Coupe) (With RPO Code A31):

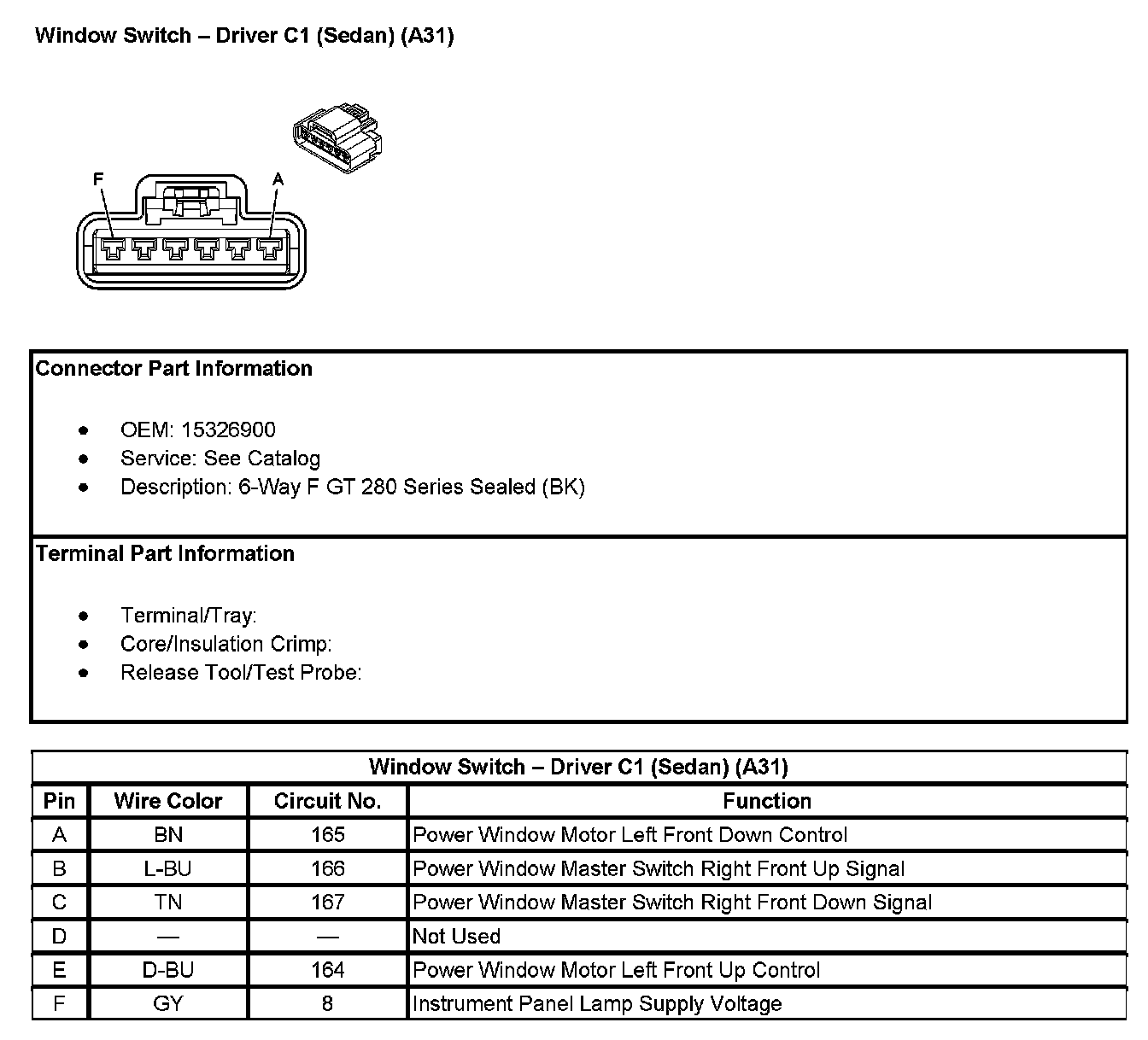

Window Switch - Driver C1 (Sedan) (With RPO Code A31):

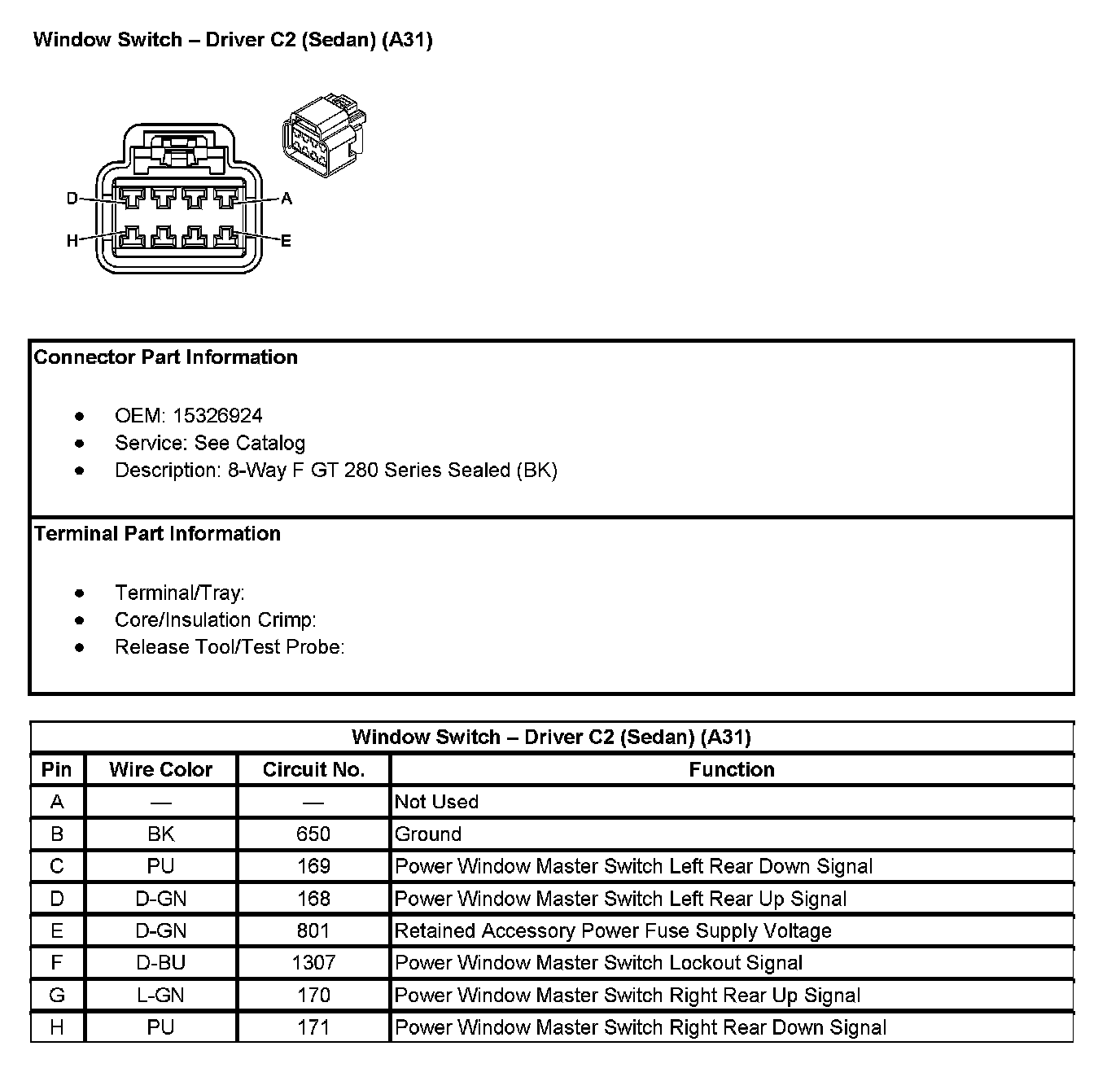

Window Switch - Driver C2 (Sedan) (With RPO Code A31):

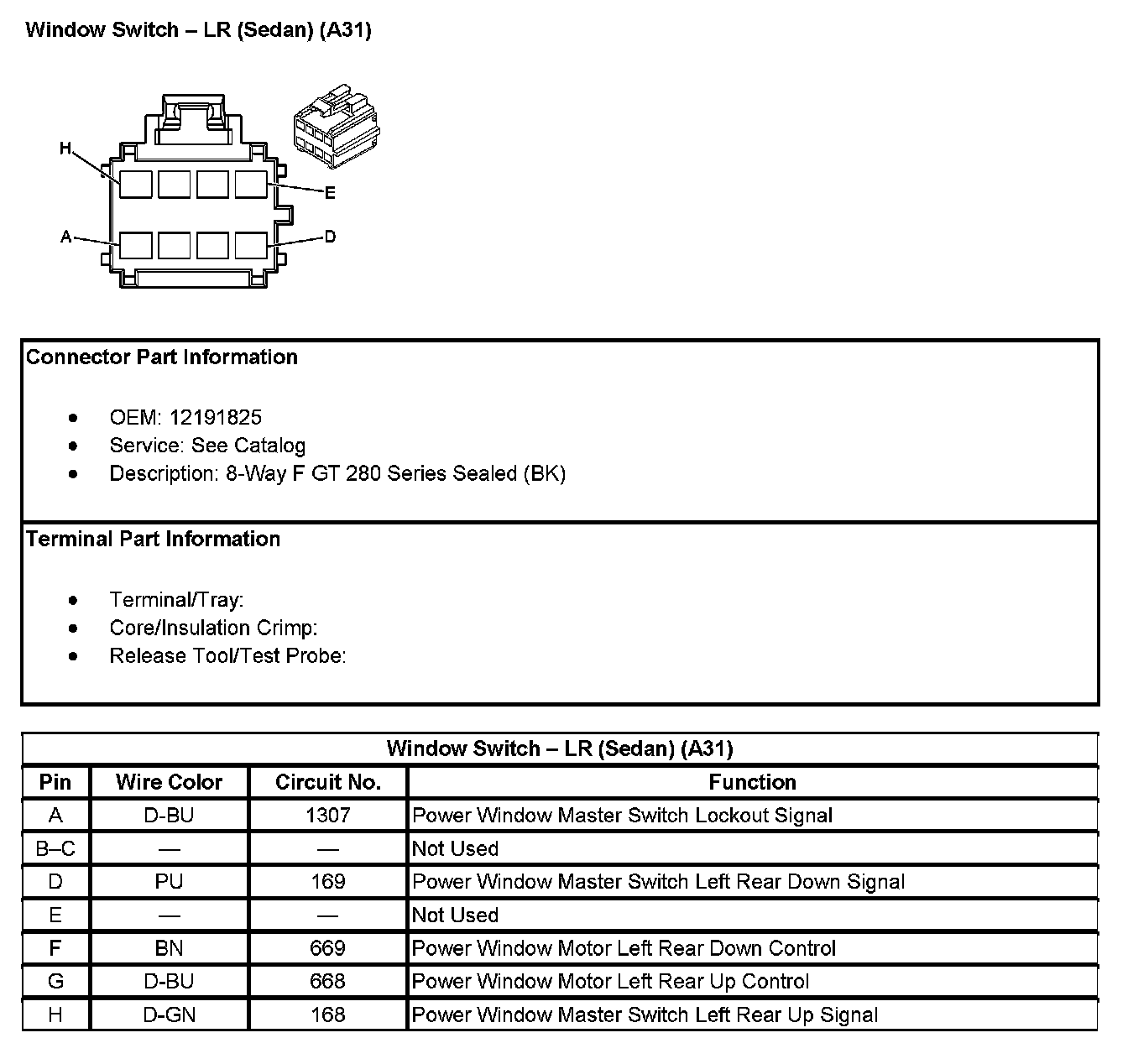

Window Switch - LR (Sedan) (With RPO Code A31):

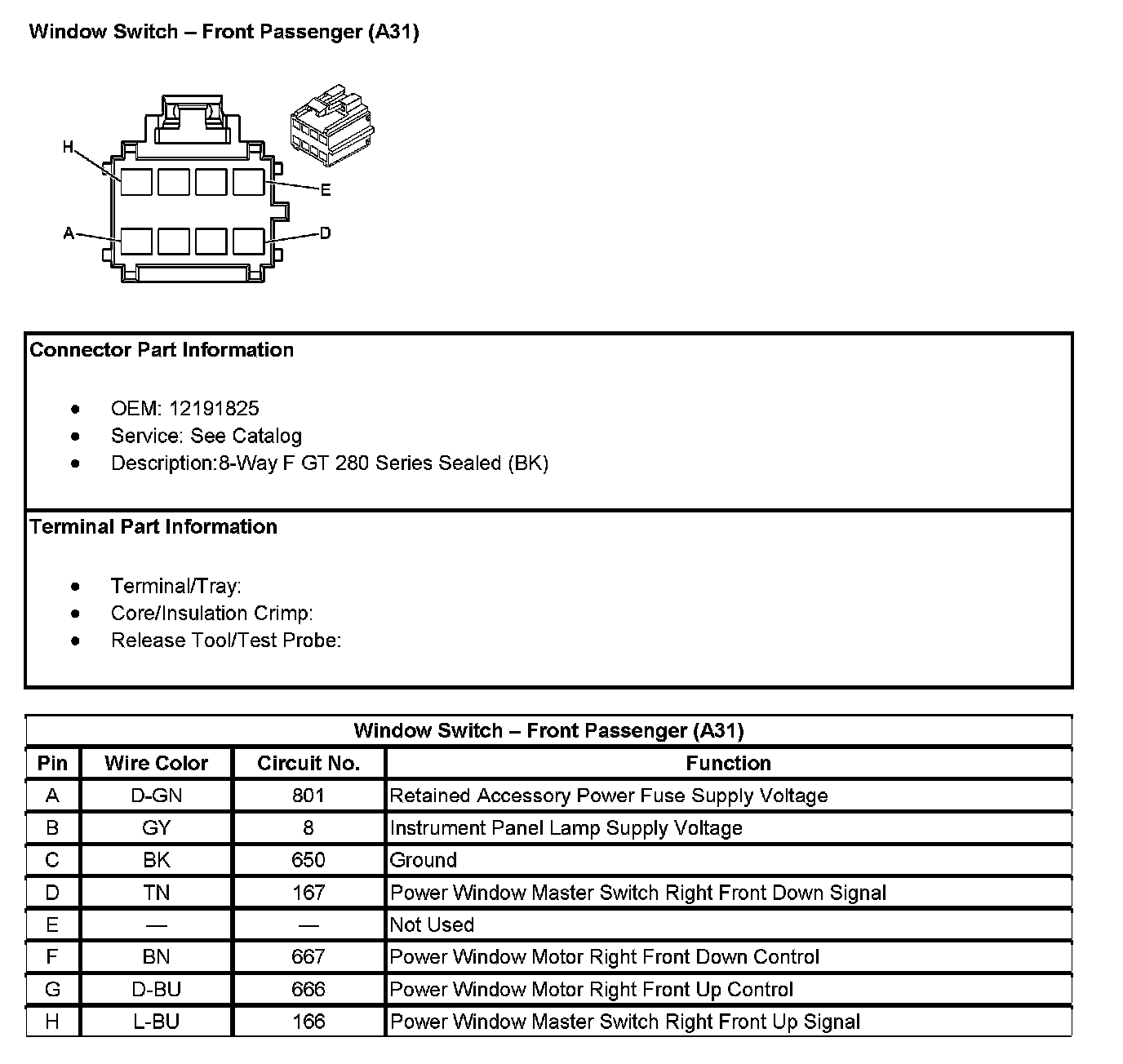

Window Switch - Front Passenger (With RPO Code A31):



Window Switch - RR (Sedan) (With RPO Code A31):
