Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Systems >> System Diagram

System Diagram



Seat Belt Connector End Views

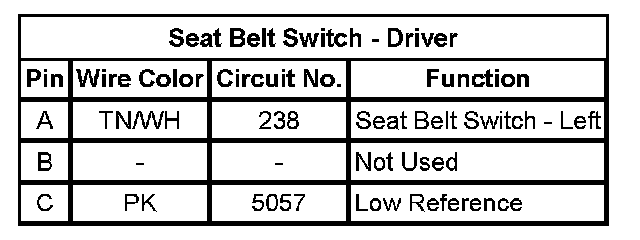

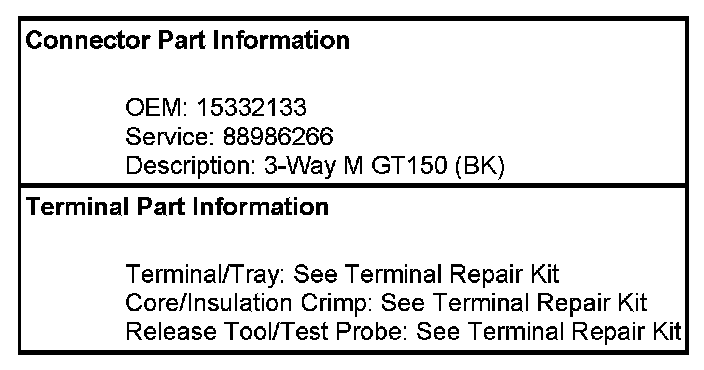

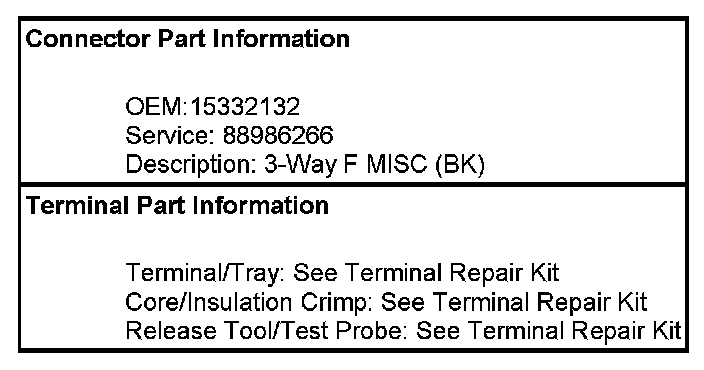

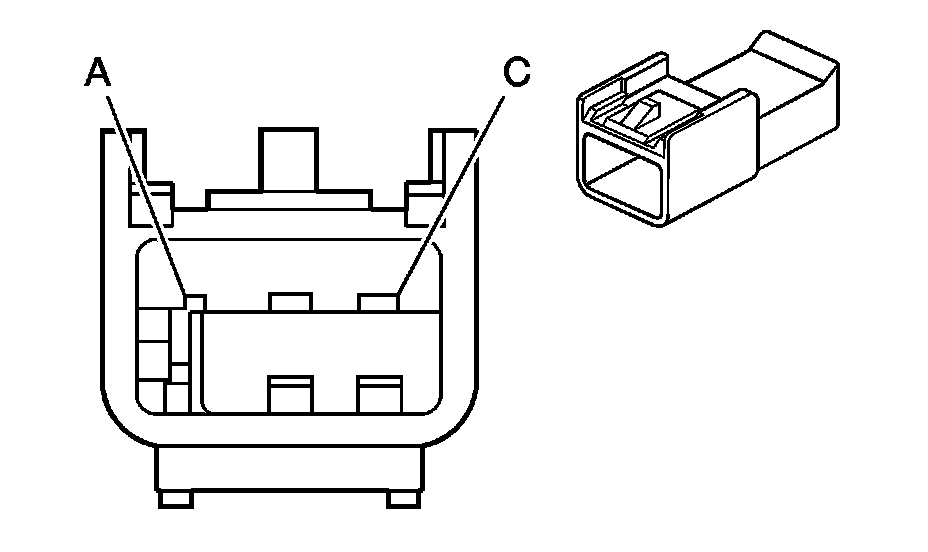

Seat Belt Switch - Driver

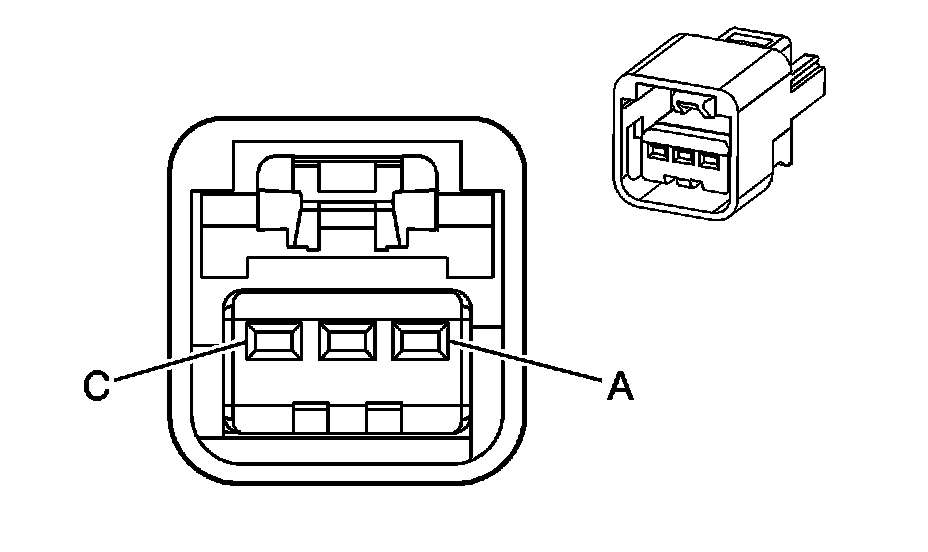

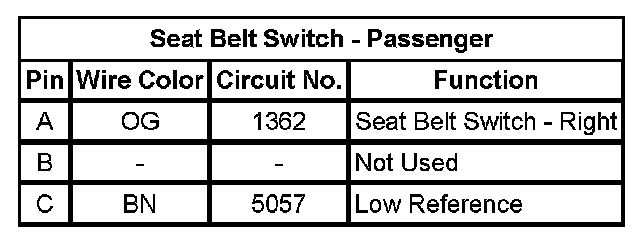

Seat Belt Switch - Passenger
