Underhood Fuse Block

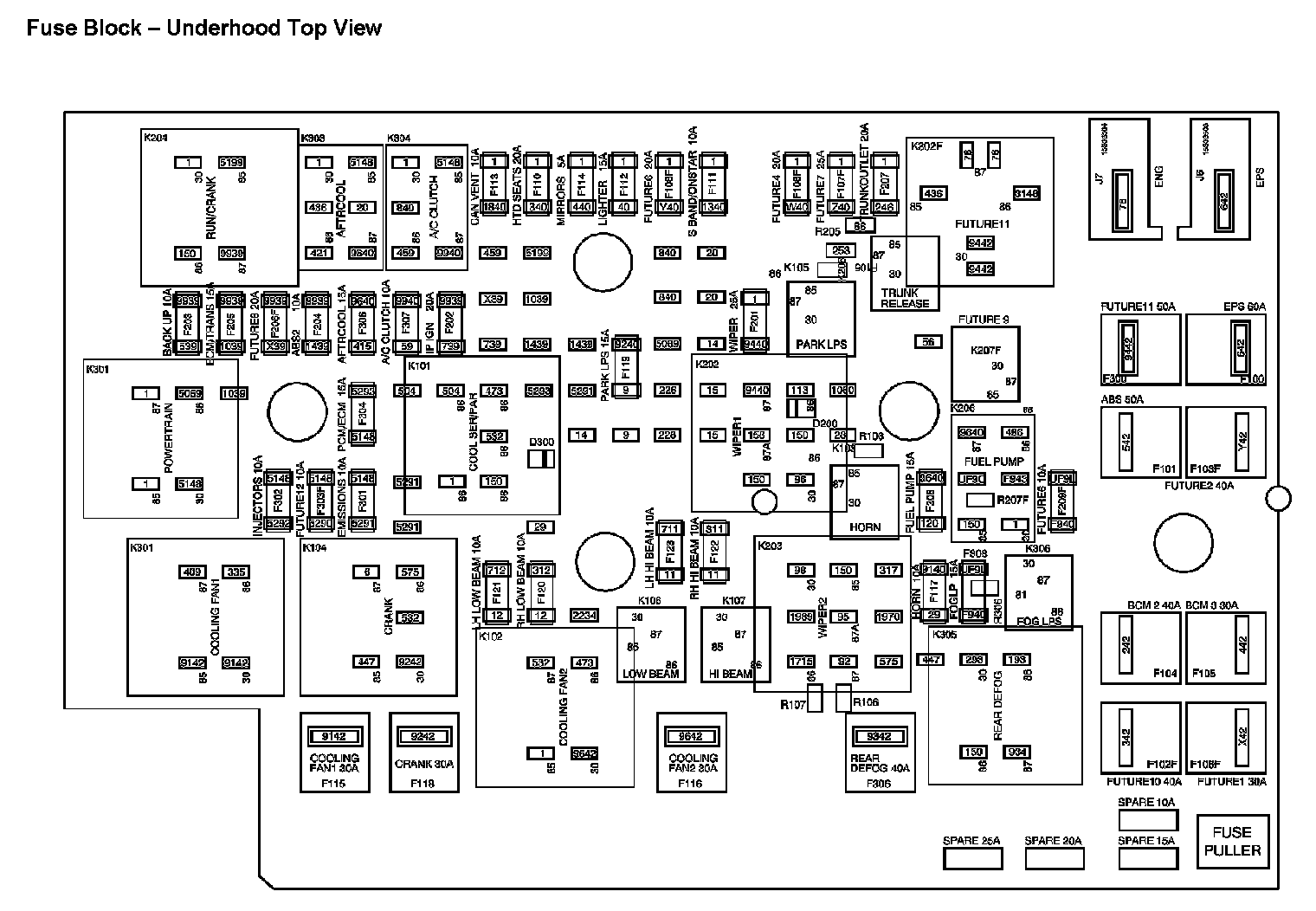

Fuse Block - Underhood Top View:

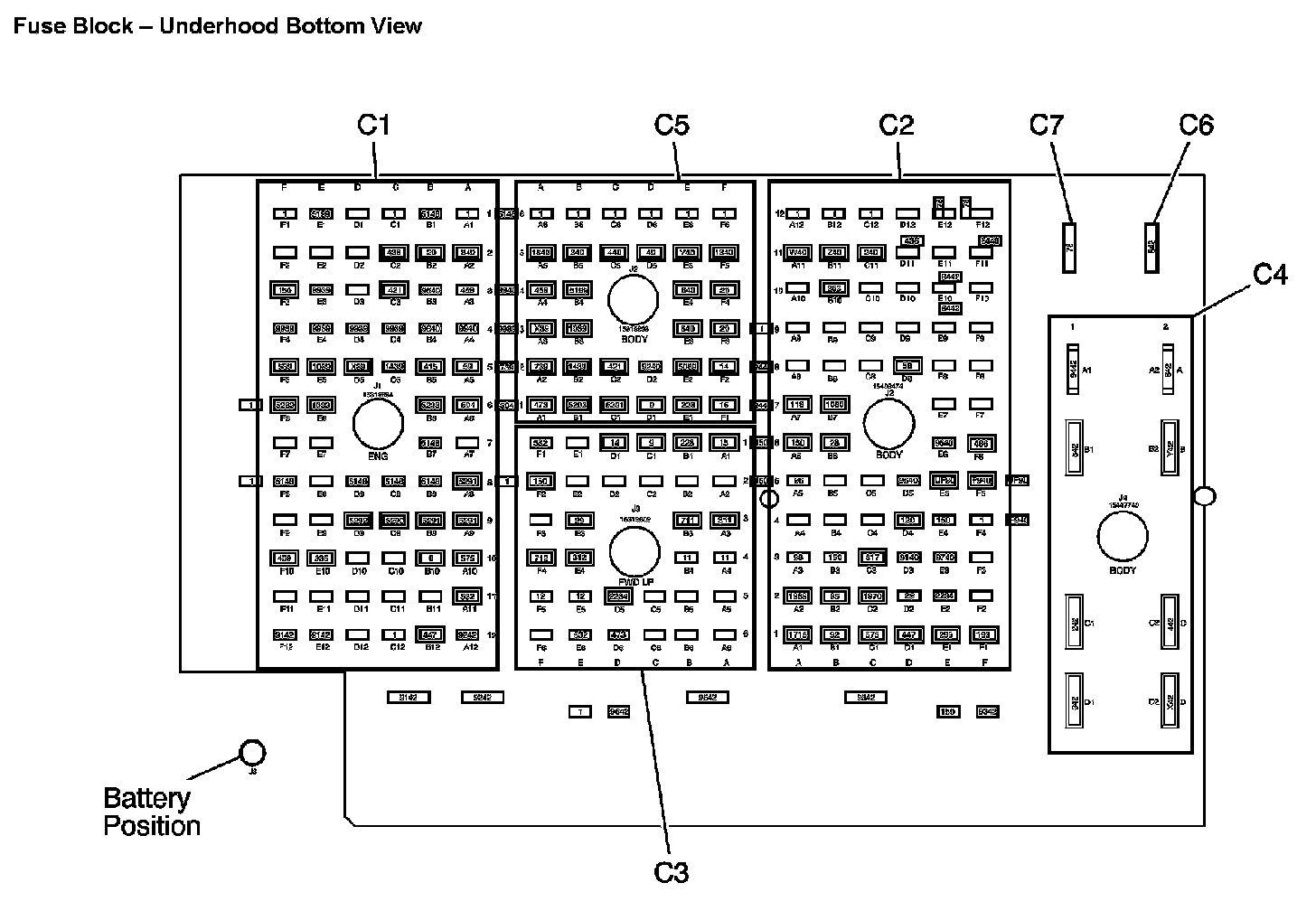

Fuse Block - Underhood Bottom View:

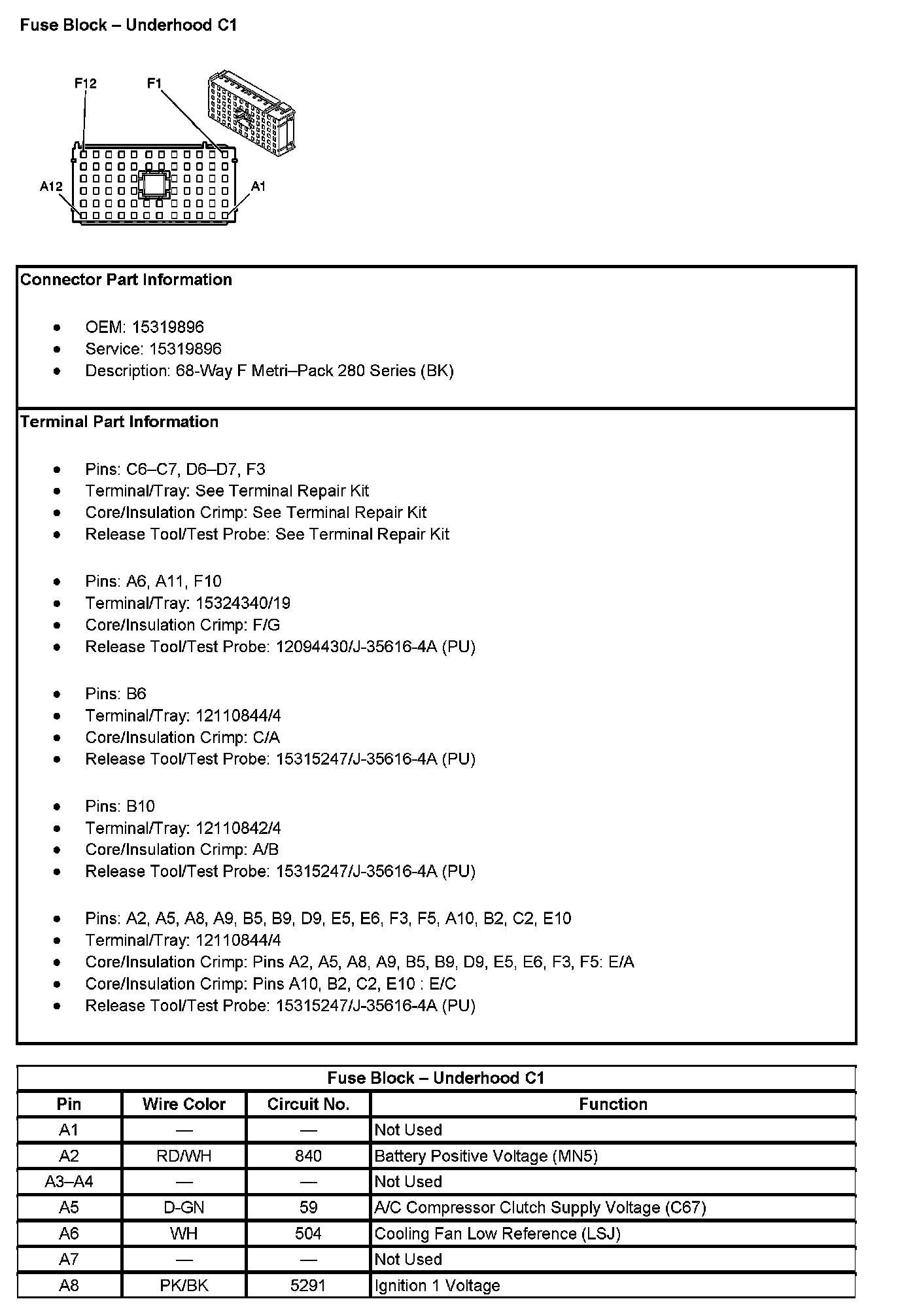

Fuse Block - Underhood C1 (Pin A1 To A8):

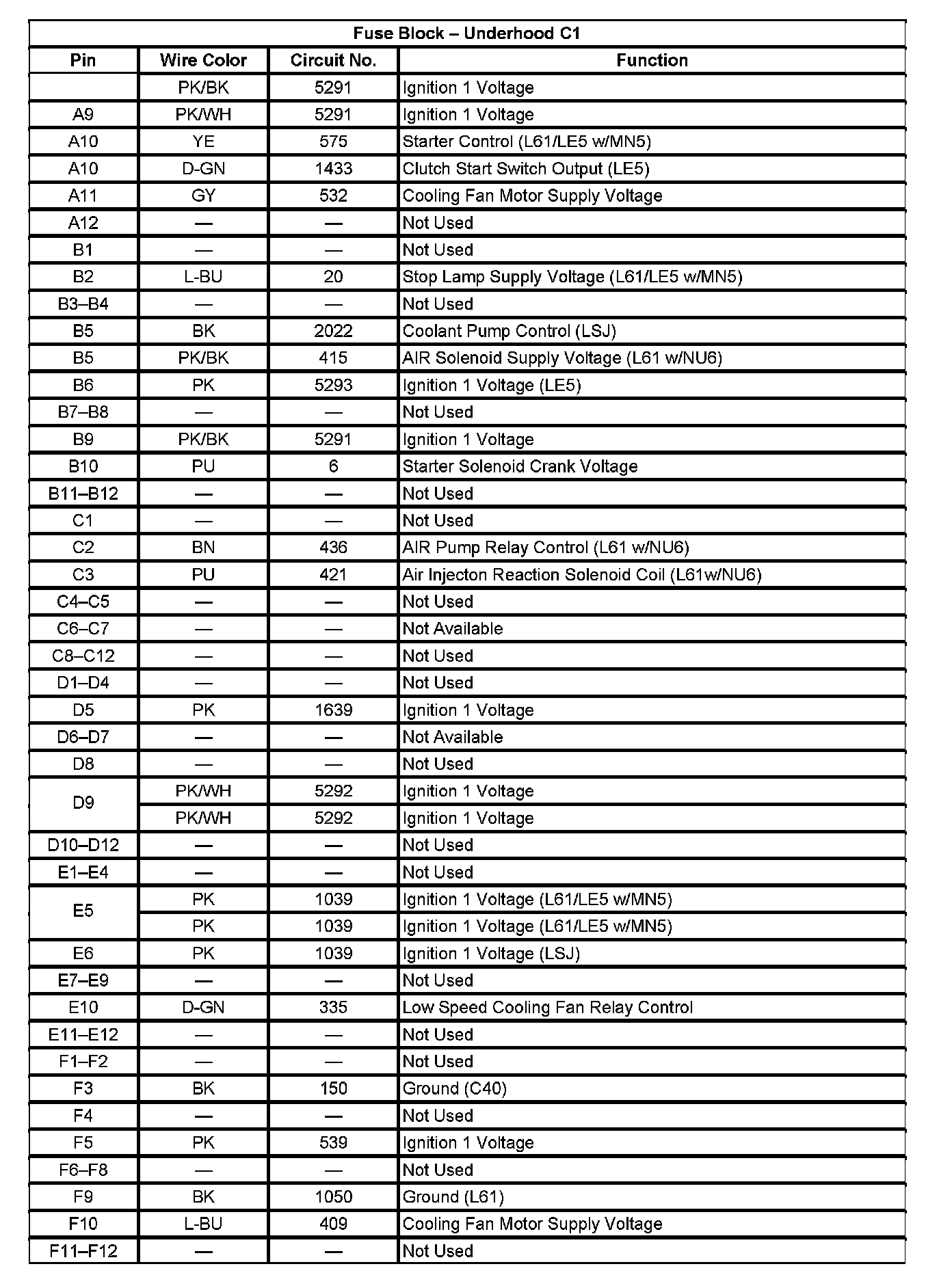

Fuse Block - Underhood C1 (Pin A9 To F12):

Fuse Block - Underhood C2 (Pin A1 To B2):

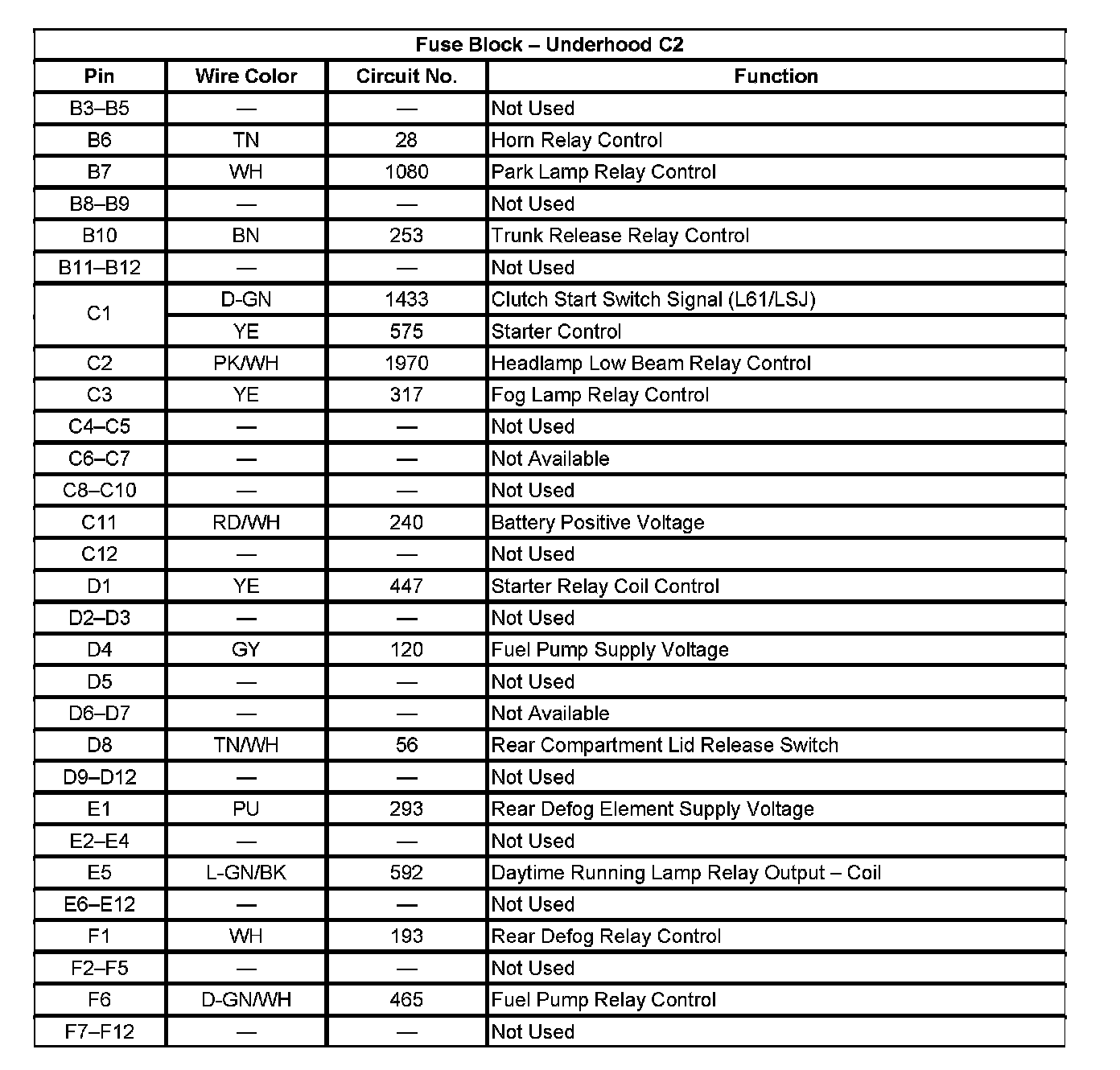

Fuse Block - Underhood C2 (Pin B3 To F12):

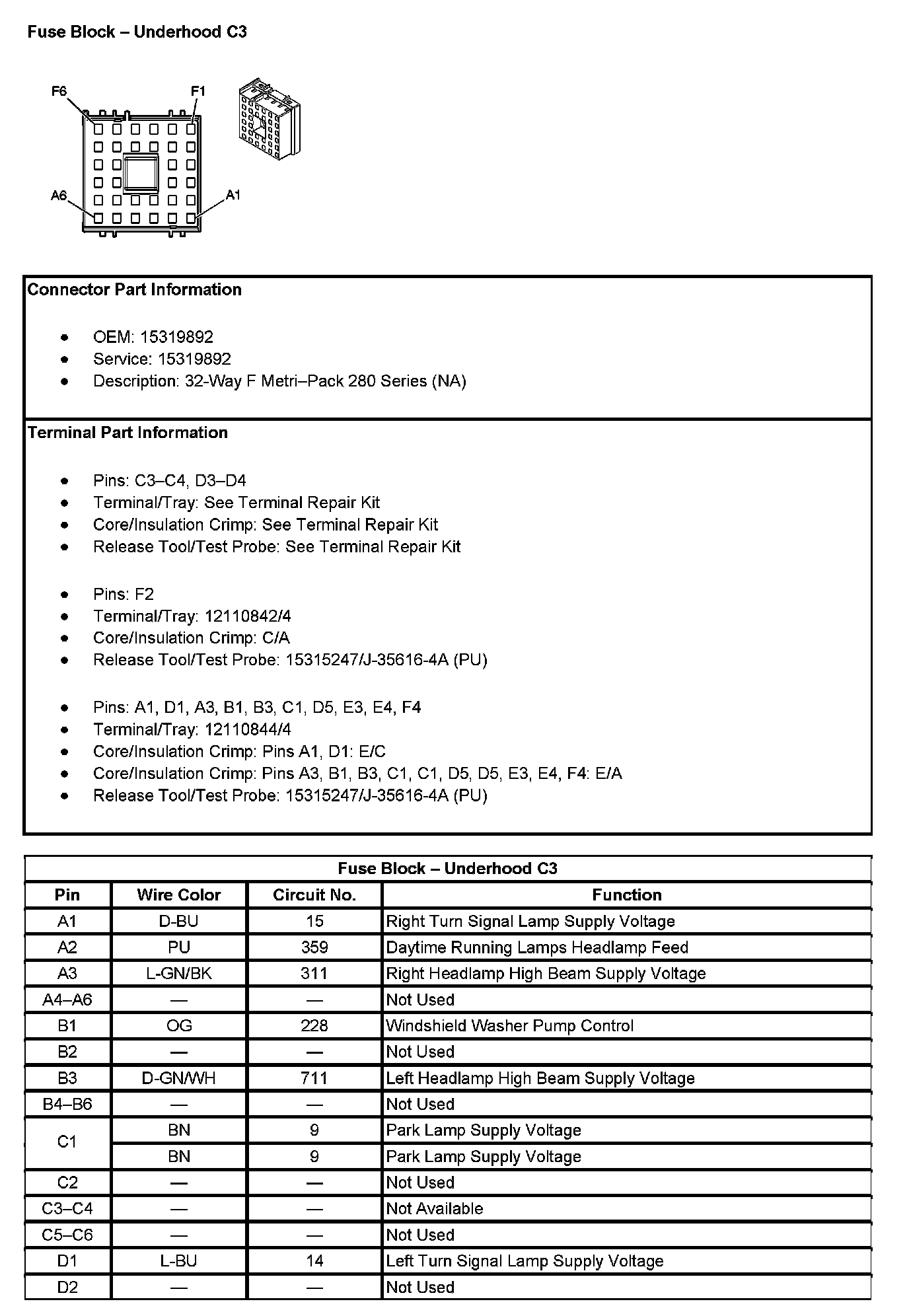

Fuse Block - Underhood C3 (Pin A1 To D2):

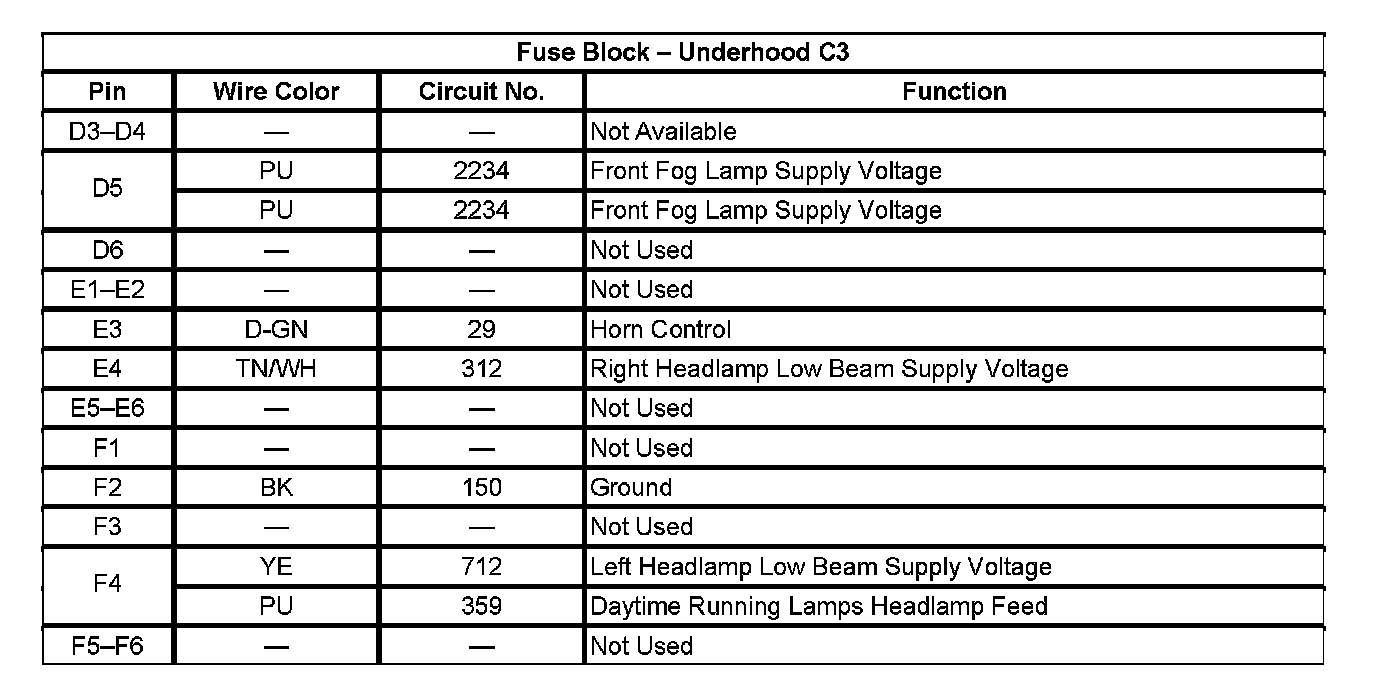

Fuse Block - Underhood C3 (Pin D3 To F6):

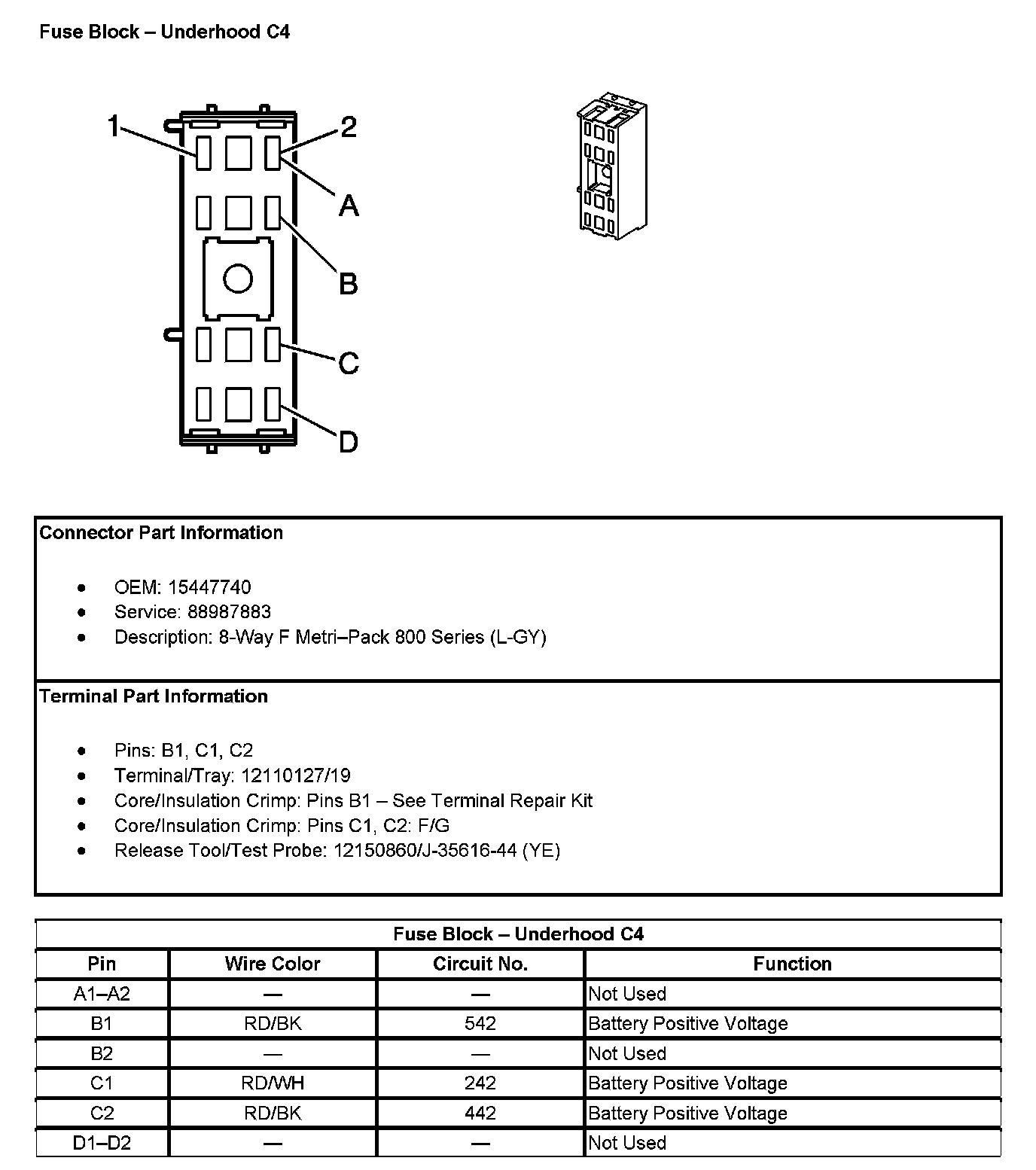

Fuse Block - Underhood C4 (Pin A1 To D2):

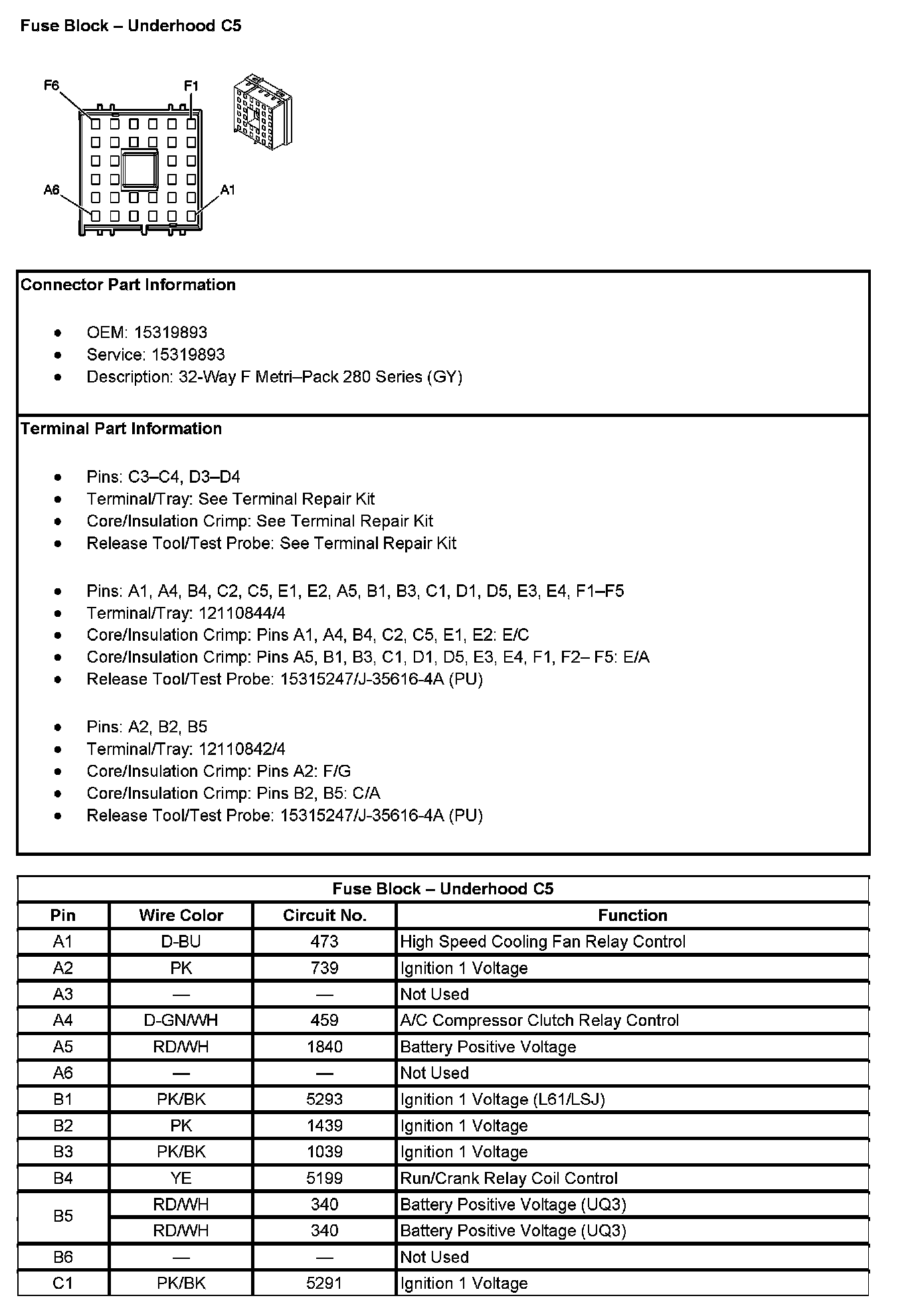

Fuse Block - Underhood C5 (Pin A1 To C1):

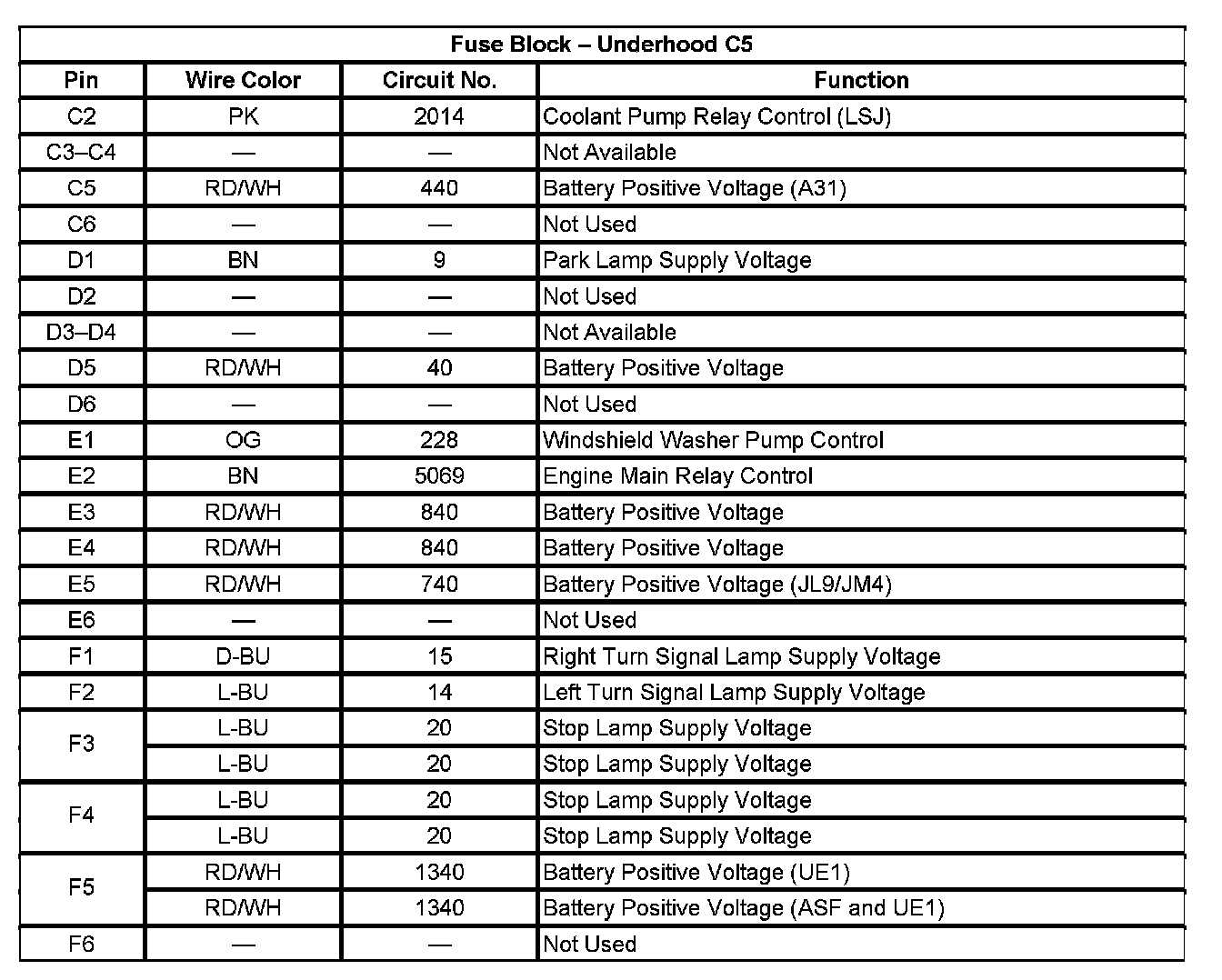

Fuse Block - Underhood C5 (Pin C2 To F6):

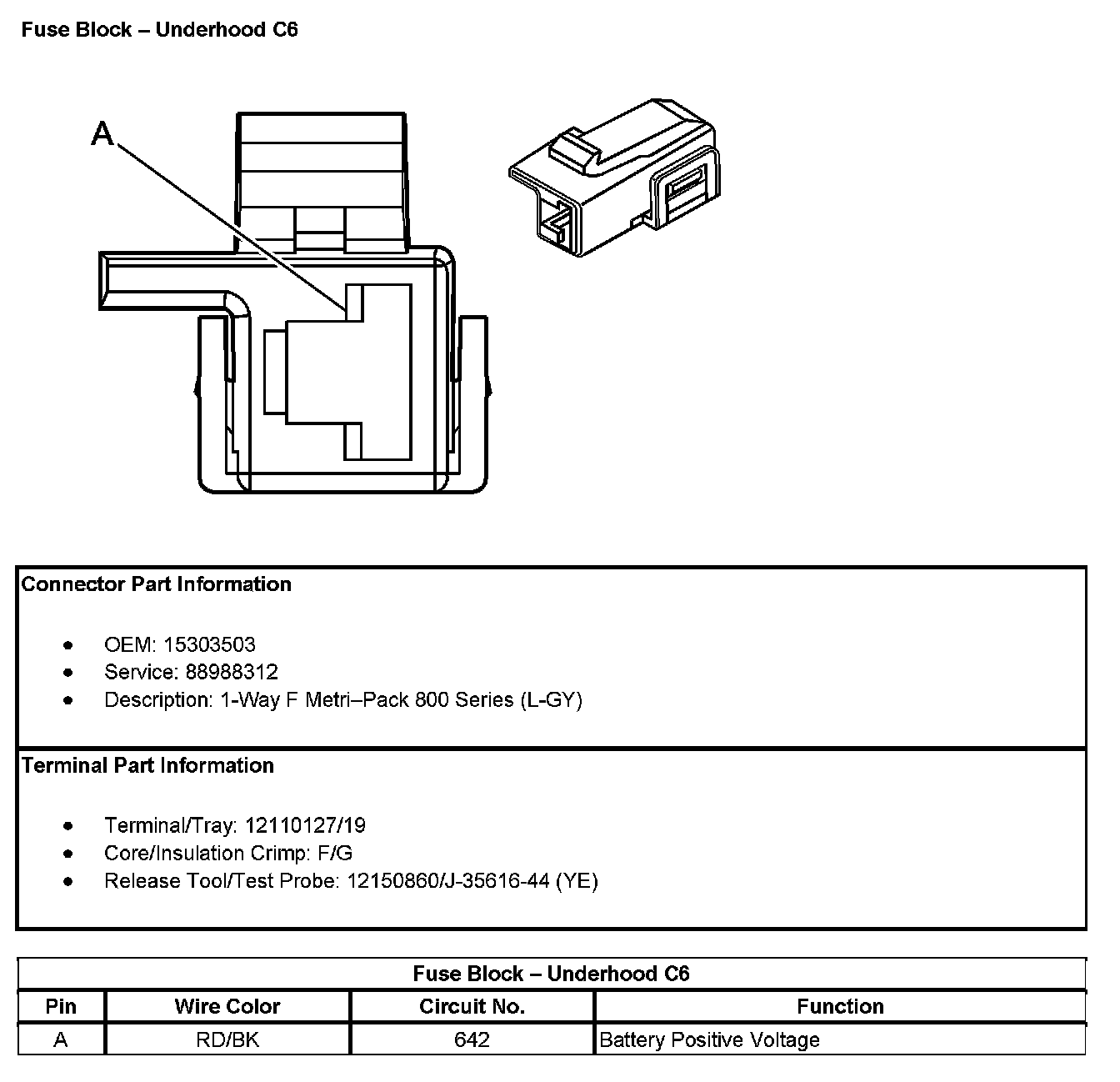

Fuse Block - Underhood C6:
