Coolant Heater Replacement

Coolant Heater Replacement

Removal Procedure

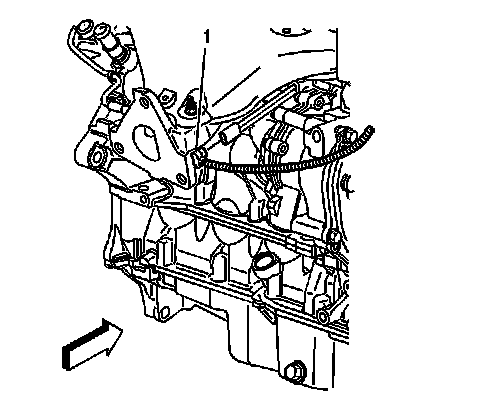

1. Disconnect the coolant heater cord (1).




2. Remove the coolant heater bolt.

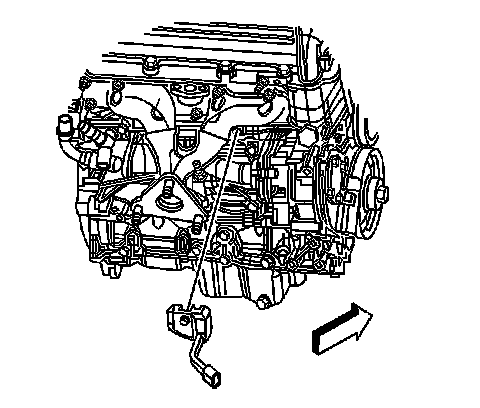

3. Remove the coolant heater.

Installation Procedure




1. Install the coolant heater.

Notice: Refer to Fastener Notice.

2. Install the coolant heater bolt.

Tighten the bolt to 10 N.m (89 lb in).




3. Connect the coolant heater cord (1).
