Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal Replacement

Tools Required

J 35268-A Camshaft/Front Main Seal Installer

Removal Procedure




1. Remove the crankshaft balancer.
2. Use a flat-bladed tool to remove the seal from the front cover.

Installation Procedure

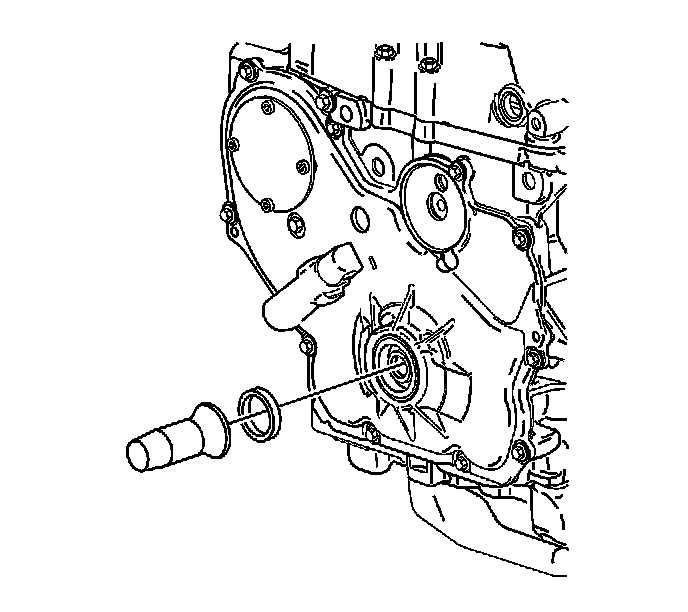

1. Use the J 35268-A in order to install the crankshaft front oil seal to the engine front cover.
2. Install the crankshaft balancer.
