68. Camshaft Cover Installation

Camshaft Cover Installation

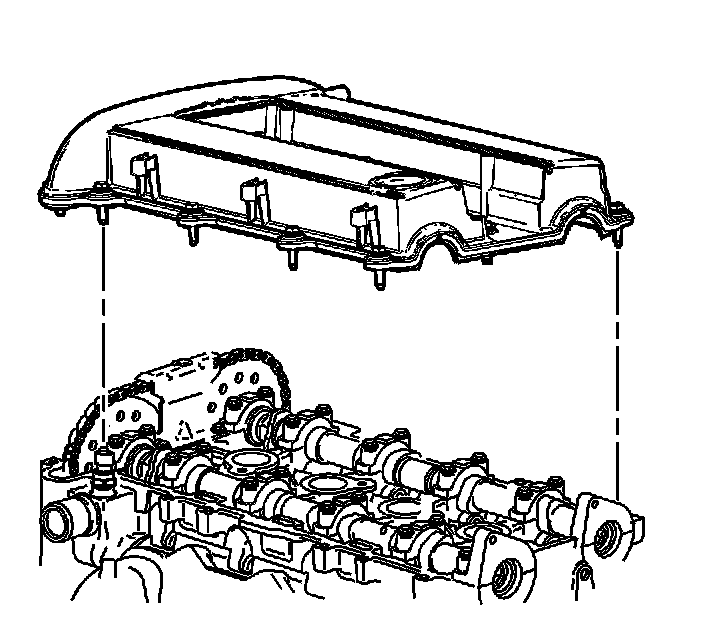

1. Assemble the camshaft cover and gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.

Notice: Refer to Fastener Notice.

2. Install the cover on the cylinder head and hand start the bolts.

Tighten the camshaft cover bolts to 8 N.m (71 lb in).

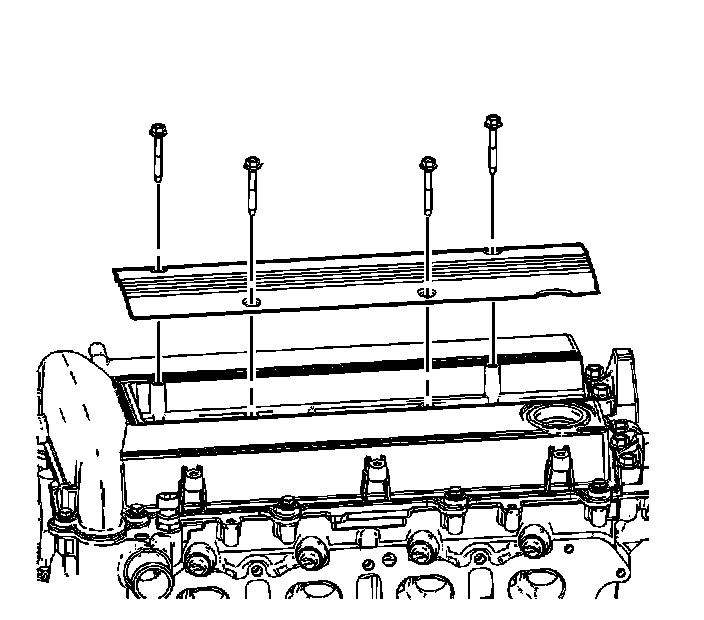

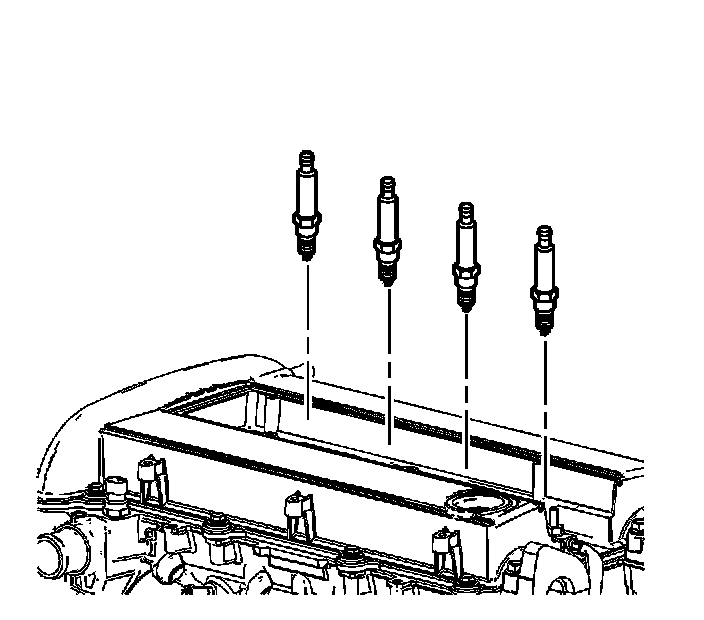

3. Install the spark plugs.

Tighten the spark plugs to 20 N.m (15 lb ft).

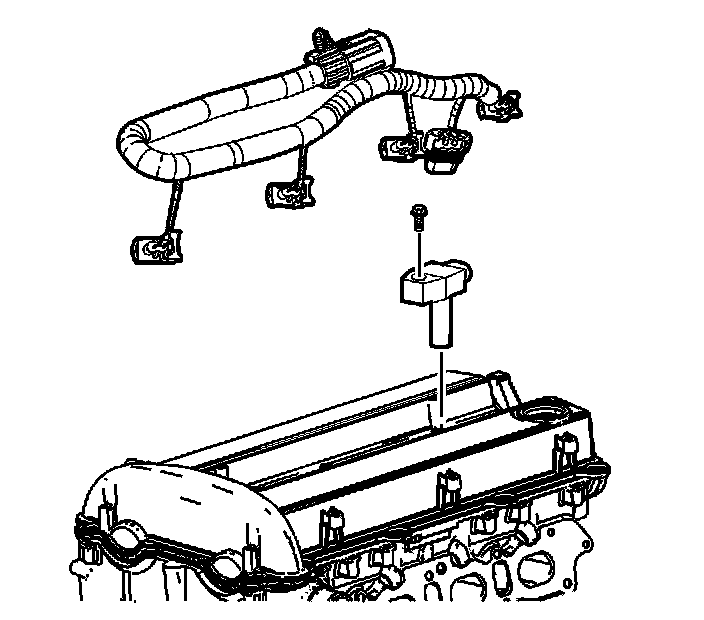

4. Install the ignition coil and module assembly bolts to the cam cover.
5. Install the ignition coil and module assembly bolts.

Tighten the ignition coil and module assembly bolts to 8 N.m (71 lb in).




6. Install the ignition coil cover.
7. Install the ignition coil cover bolts.

Tighten the bolts to 8 N.m (71 lb in).

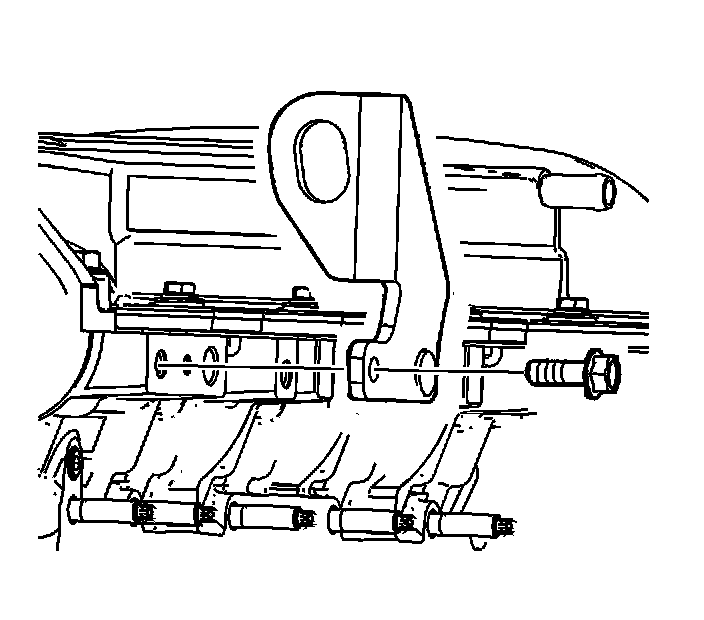

8. Install the lift hook.
9. Install the lift hook bolts.

Tighten the bolts to 22 N.m (16 lb ft).

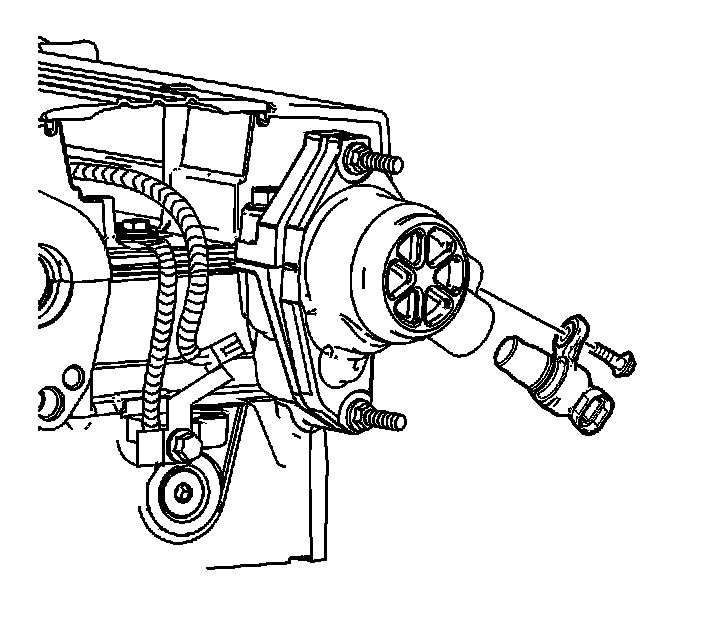

10. Install the camshaft position sensor.
11. Install the camshaft position sensor bolt.

Tighten the bolt to 8 N.m (71 lb in).

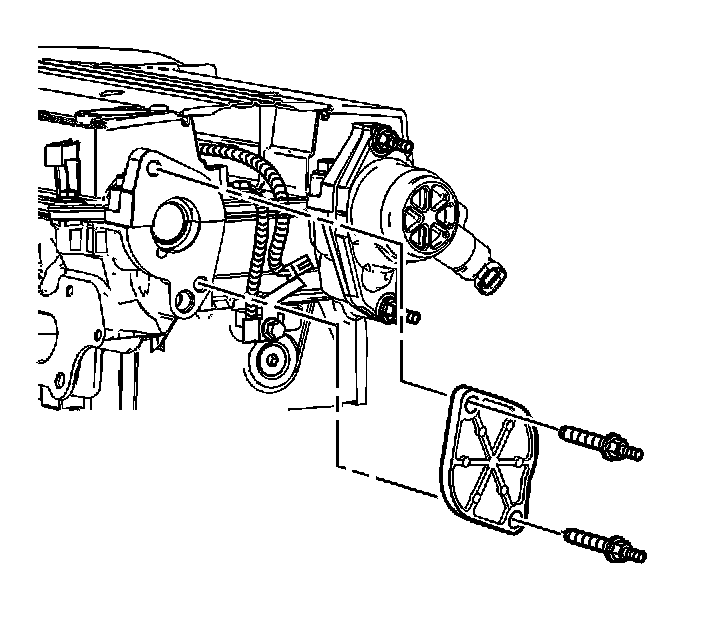

12. Install the power steering blockout plate.
13. Install the power steering blockout plate studs.

Tighten the power steering blockout plate bolts to 25 N.m (18 lb ft).
