70. Intake Manifold Installation

Intake Manifold Installation





Notice: Refer to Fastener Notice.

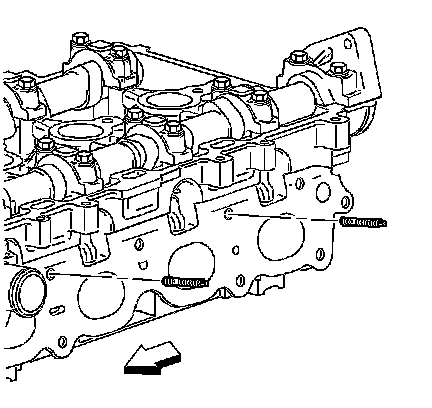

1. Install the intake manifold studs in the manifold face.

Tighten the intake manifold studs to 5 N.m (44 lb in).




2. Install a new intake manifold gasket on the intake manifold.

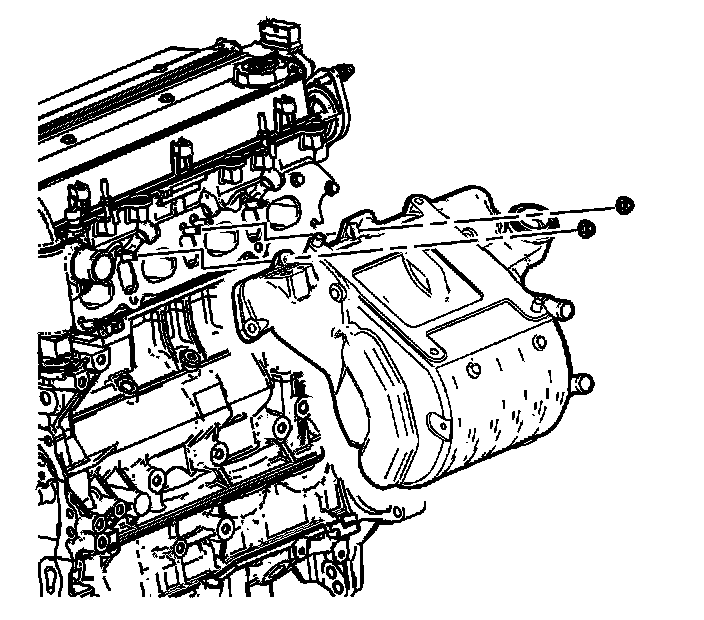

3. Install the intake manifold.
4. Install the intake manifold bolts and nuts.

Tighten the bolts and nuts to 22 N.m (16 lb ft).
