73. Oil Level Indicator and Tube Installation

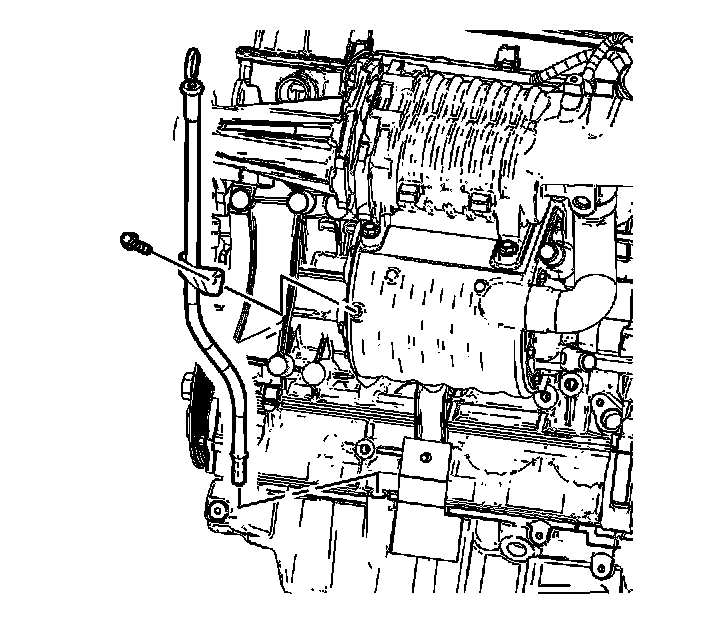

Oil Level Indicator and Tube Installation




1. Lubricate the oil level indicator tube O-ring with engine oil supplement.
2. Install the tube into the oil pan.

Notice: Refer to Fastener Notice.

3. Install the indicator tube bracket to the intake manifold bolt.

Tighten the bolt to 10 N.m (89 lb in).
