Fuel Pump Electrical Circuit Diagnosis



Fuel Pump Electrical Circuit Diagnosis

Circuit Description

The control module enables the fuel pump relay when the ignition switch is turned ON. The control module will disable the fuel pump relay within two seconds unless the control module detects ignition reference pulses. The control module continues to enable the fuel pump relay as long as ignition reference pulses are detected. The control module disables the fuel pump relay within two seconds if ignition reference pulses cease to be detected and the ignition remains ON.

Test

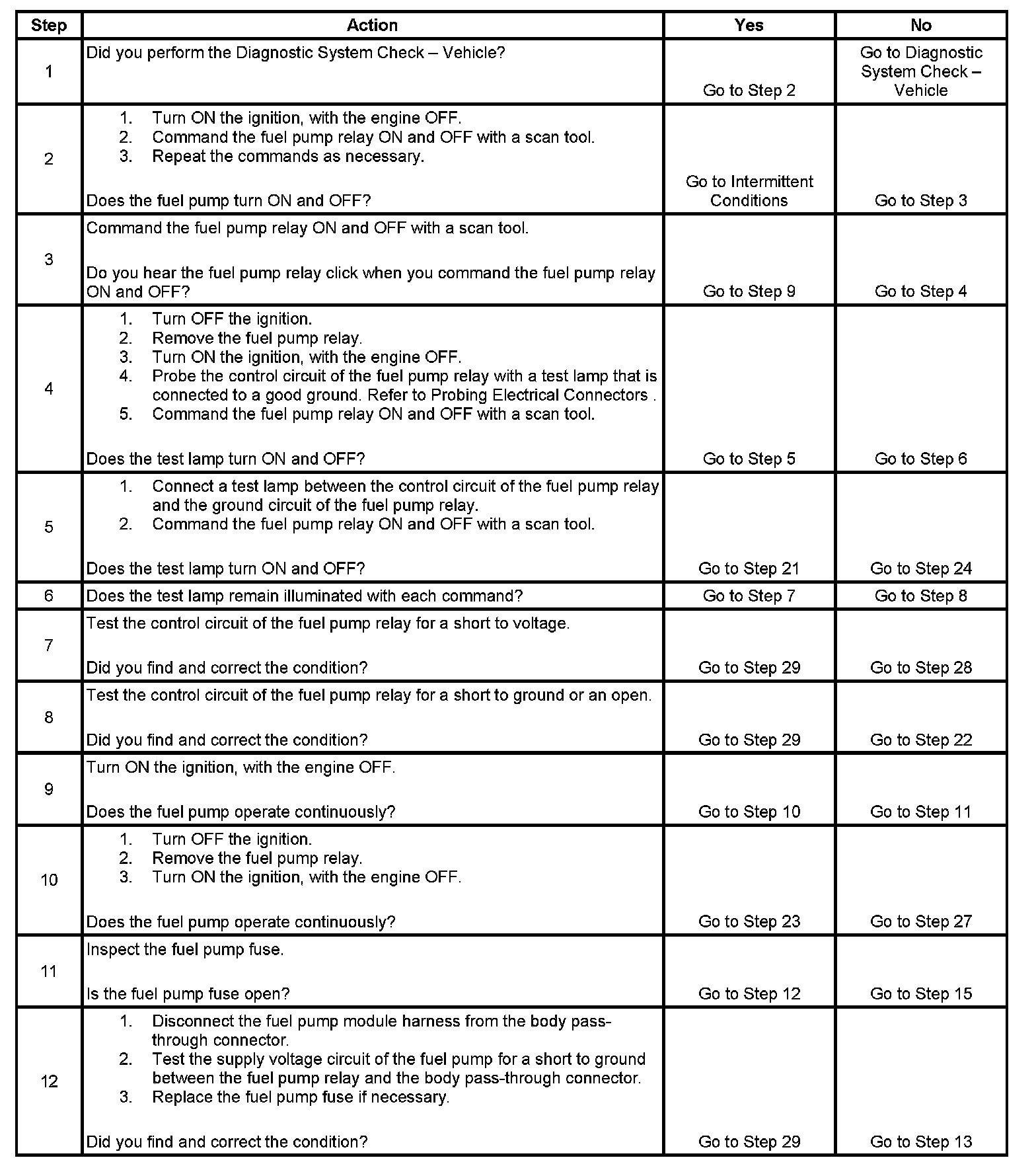

Step 1 - Step 12:




Step 13 - Step 21:

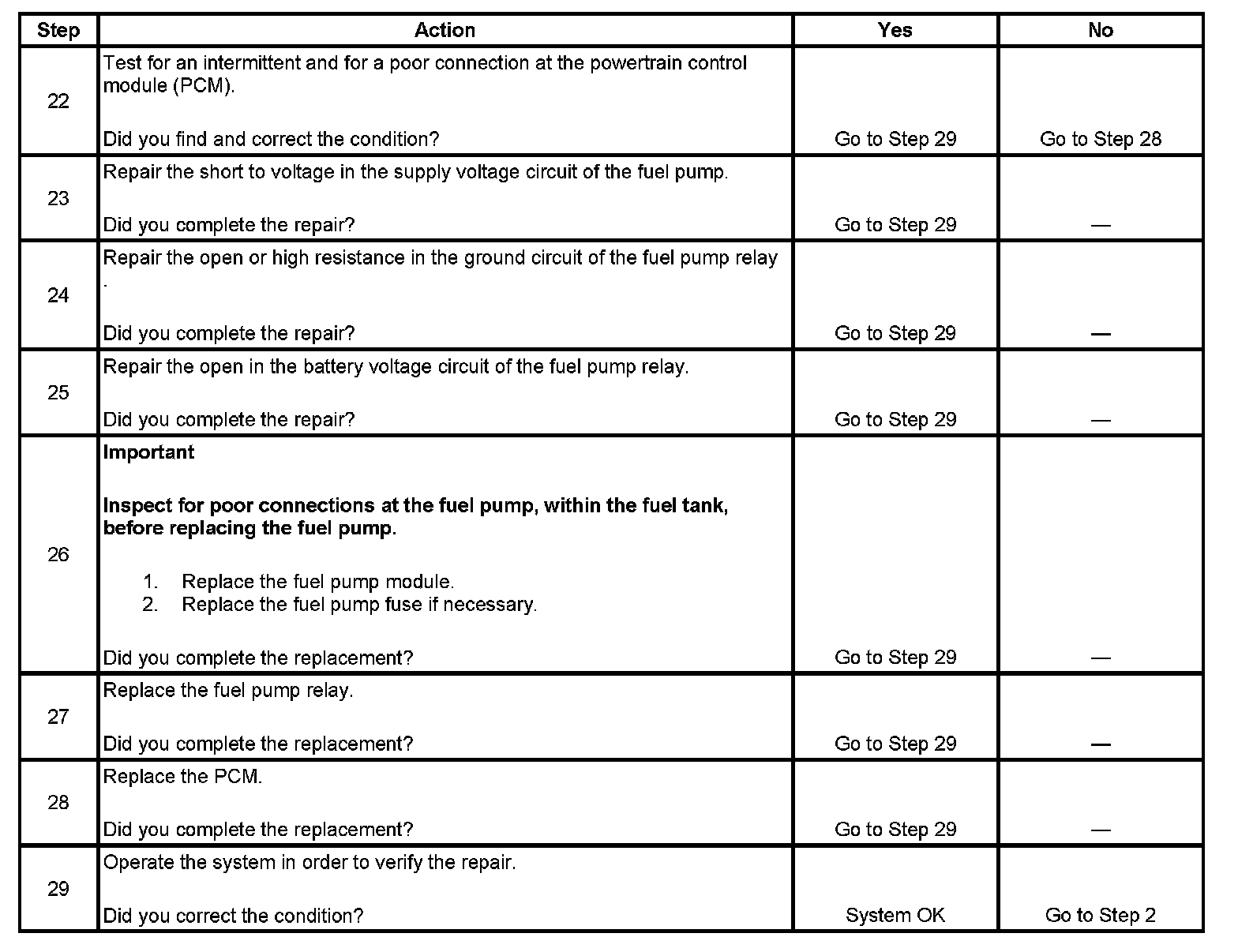

Step 22 - Step 29:
