Supercharger: Service and Repair

Supercharger Replacement

Removal Procedure

1. Remove the drive belt.

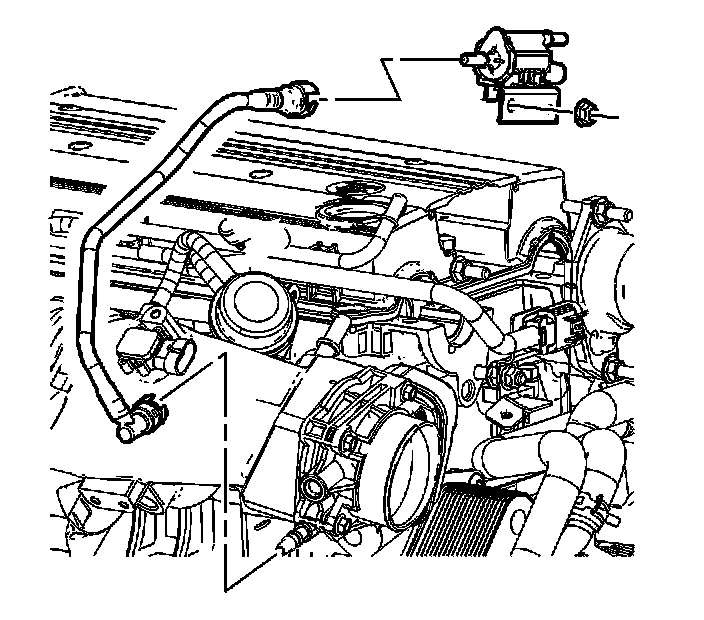

2. Remove the evaporative emission (EVAP) tube and EVAP valve.

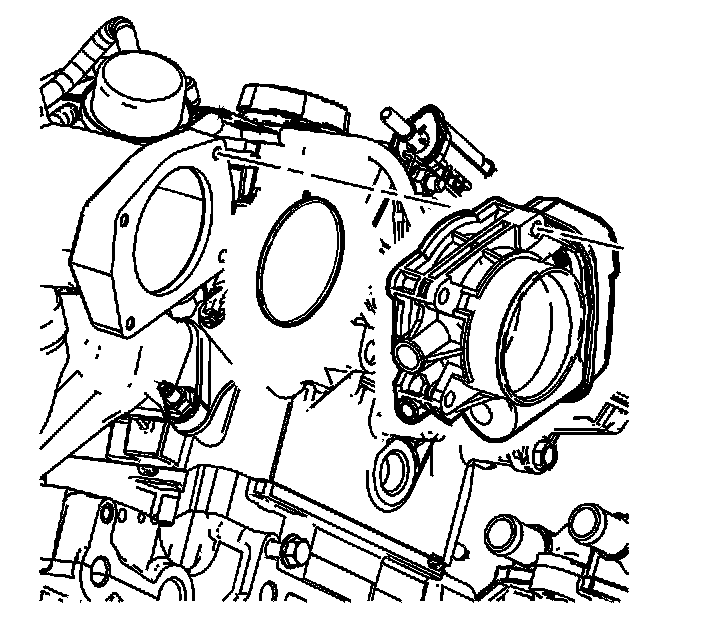

3. Remove the throttle body and gasket.
4. Remove the supercharger inlet pressure (SCIP) sensor.
5. Disconnect the vacuum brake booster hose.
6. Remove the intercooler fill neck bracket bolts.
7. Remove the vacuum line from the supercharger.

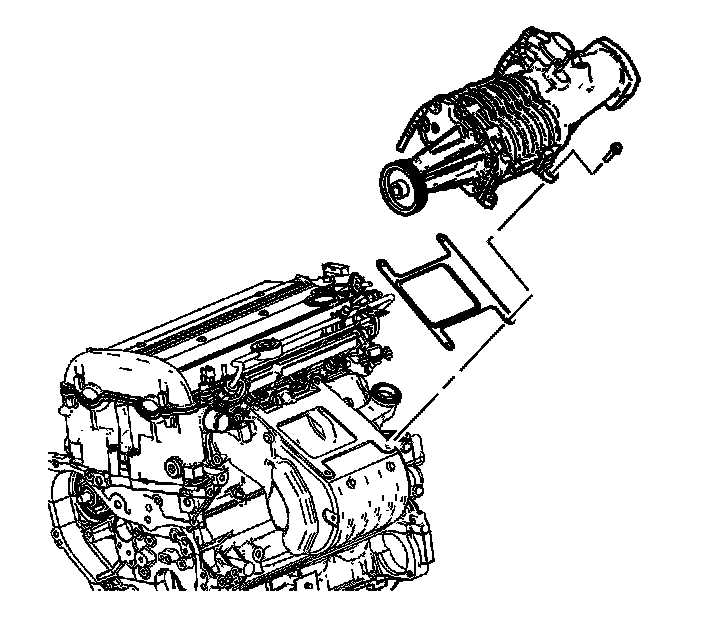

8. Remove the supercharger. Remove the gasket if damaged.

Installation Procedure




1. Install the supercharger gasket.

Notice: Refer to Fastener Notice.

2. Install the supercharger and bolts.

Tighten the bolts to 25 N.m (18 lb ft).

3. Install the intercooler fill neck bracket bolts.

Tighten the bolts to 10 N.m (89 lb in).

4. Connect the vacuum brake booster hose.
5. Install the SCIP sensor and bolt.

Tighten the bolts to 10 N.m (89 lb in).




6. Install the throttle body.
