SIR Component Views
>>
Front End Sensor
Front End Sensor

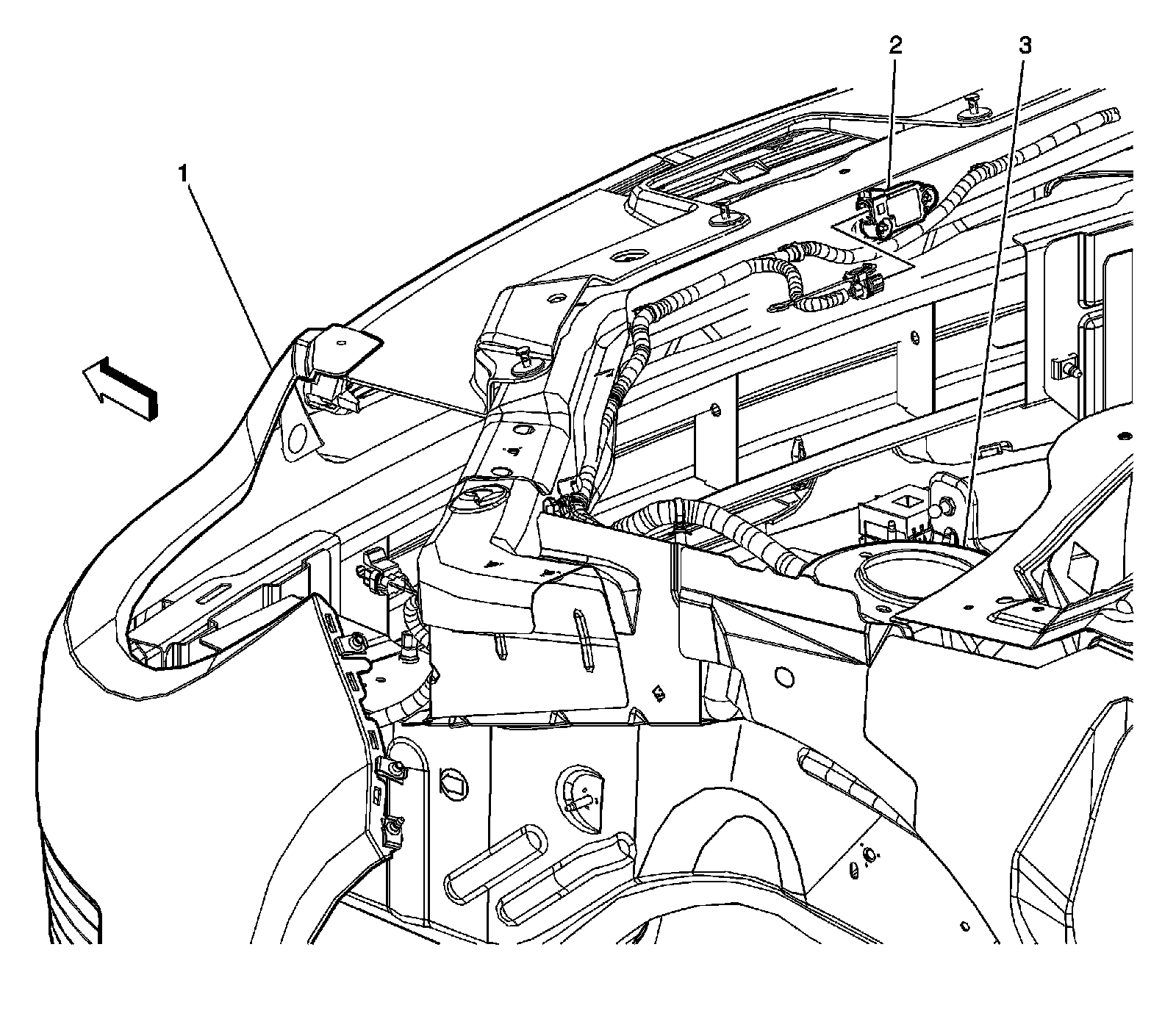

SIR Component Views
Front End Sensor
1
- Front Fascia
2
- Inflatable Restraint Front End Sensor
3
- LF Strut Tower
