Passenger Presence System (PPS) Components

SIR Component Views

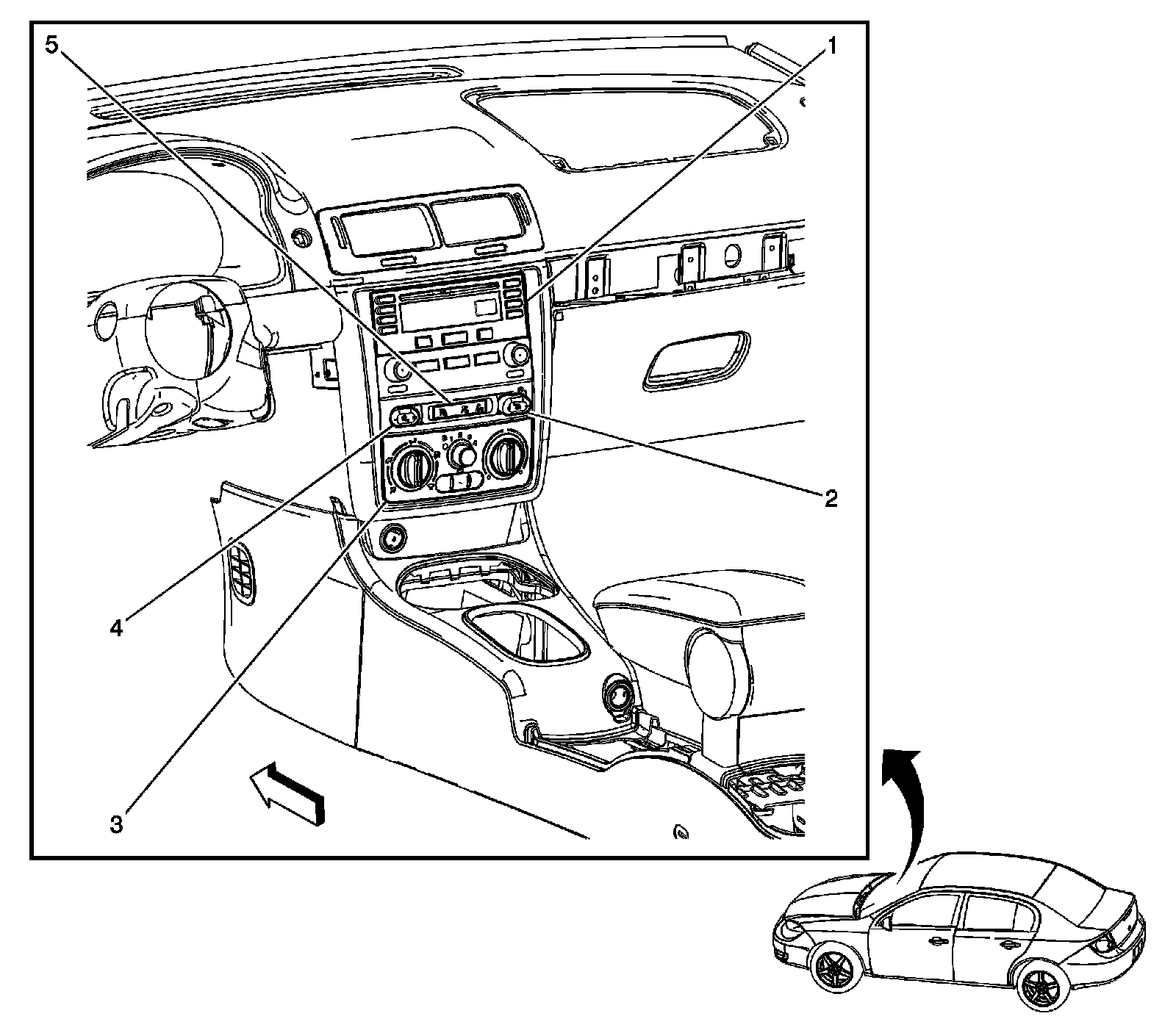

Passenger Presence System (PPS) Components 1 of 2




1 - Radio
2 - Heated Seat Switch-Passenger (KA1)
3 - HVAC Control Module
4 - Heated Seat Switch-Driver (KA1)
5 - Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator

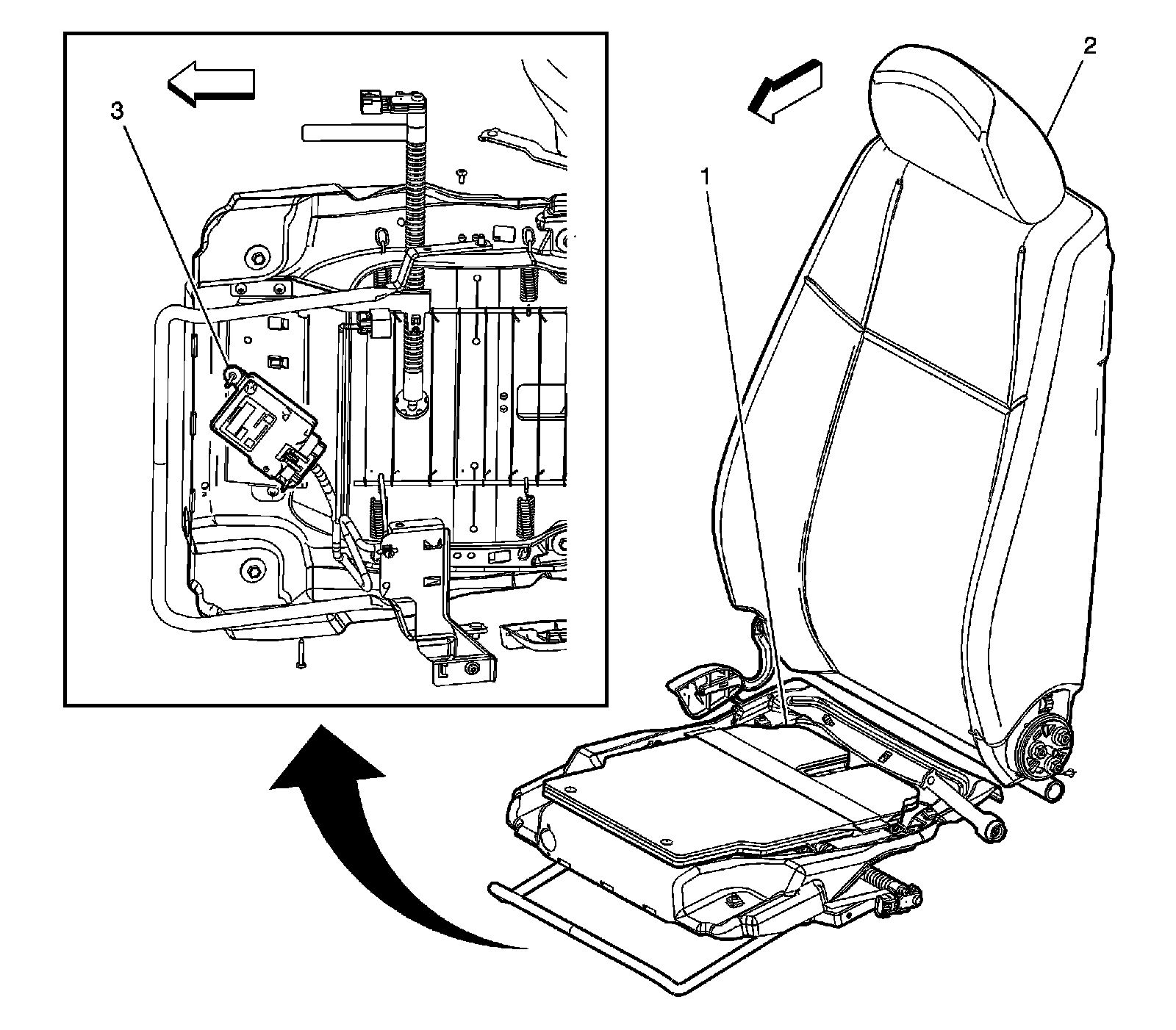

Passenger Presence System (PPS) Components 2 of 2




1 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2 - Front Passenger Seat
3 - Inflatable Restraint Front Passenger Presence System (PPS) Module
